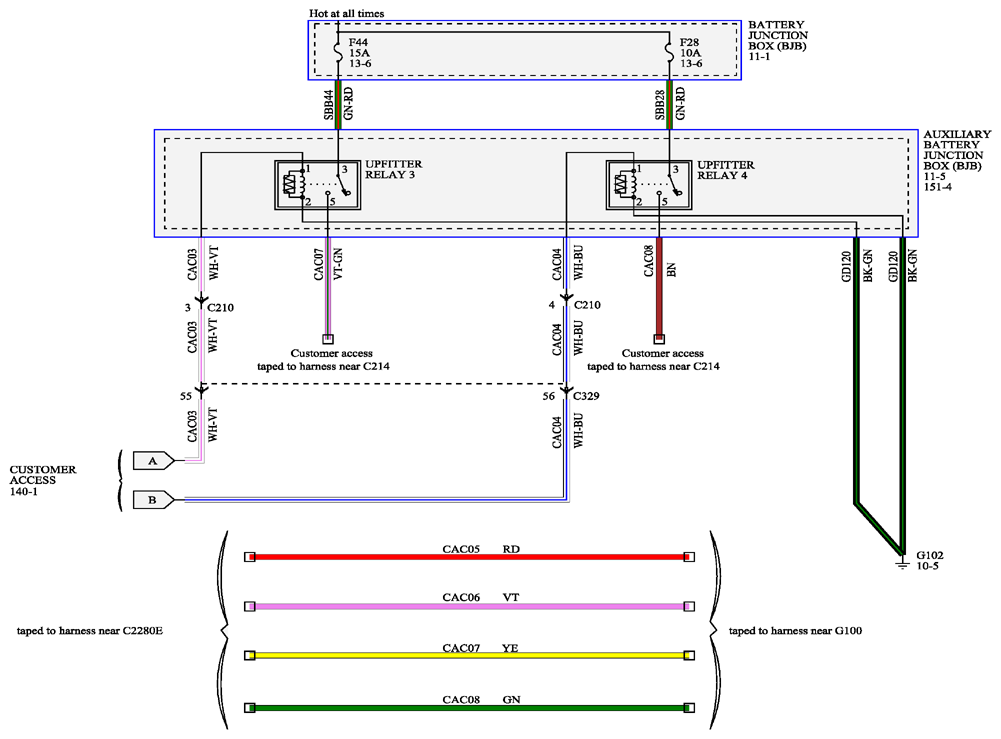

Fig 1: Customer Access - Wiring Diagram (SVT Raptor; 1 Of 2)

Courtesy of FORD MOTOR CO.

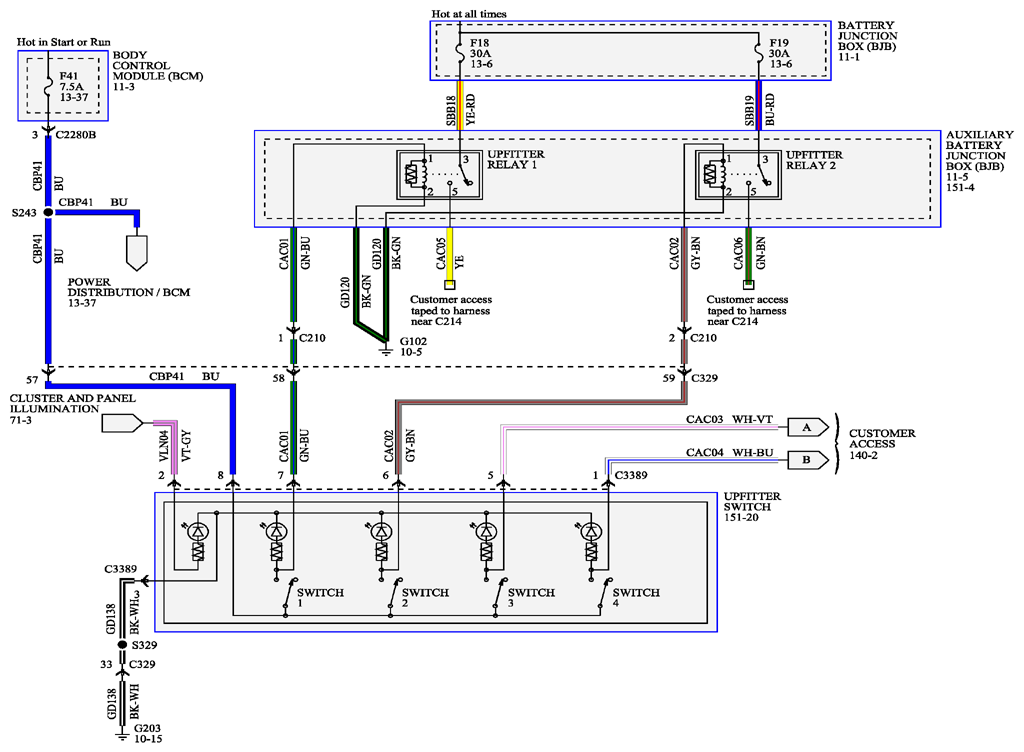

Fig 2: Customer Access - Wiring Diagram (SVT Raptor; 2 Of 2)

Courtesy of FORD MOTOR CO.
