With Heated Seats

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

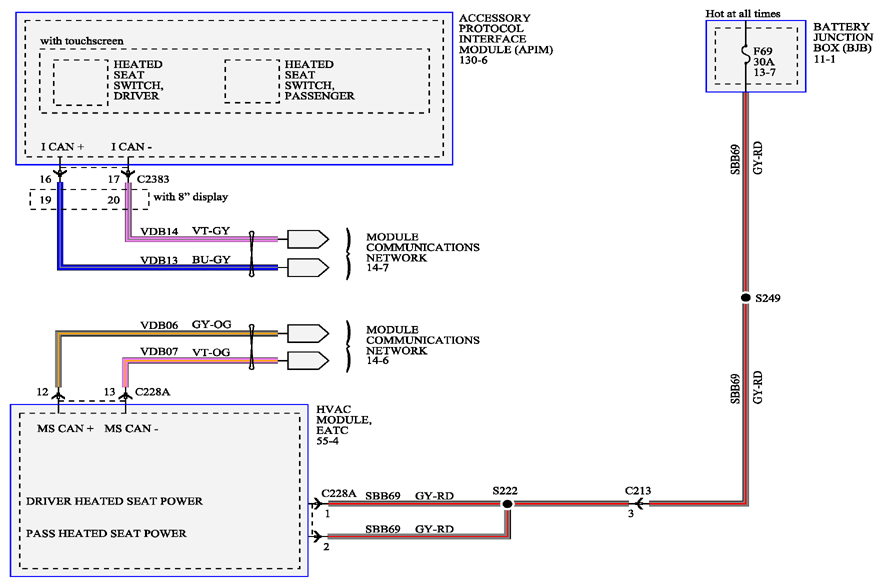

Fig 1: Climate Controlled Seats - Wiring Diagram (With Heated Seats; 1 Of 2)
G09257656Courtesy of FORD MOTOR CO.

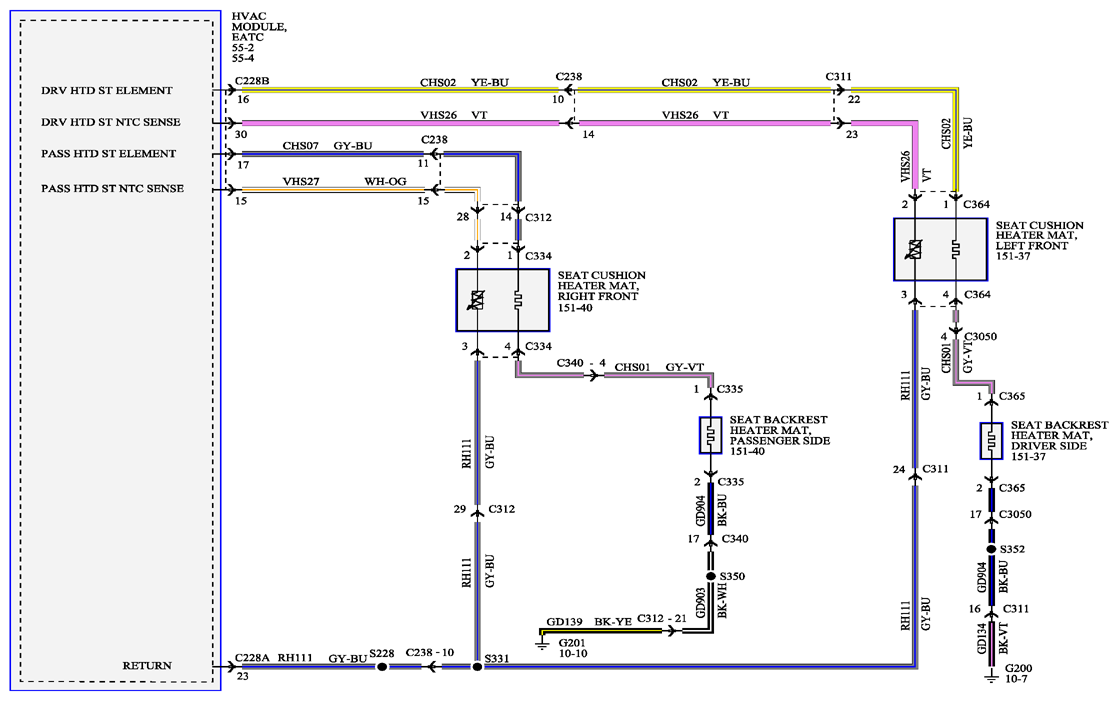

Fig 2: Climate Controlled Seats - Wiring Diagram (With Heated Seats; 2 Of 2)
G09257657Courtesy of FORD MOTOR CO.
