Without SONY® Sound

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

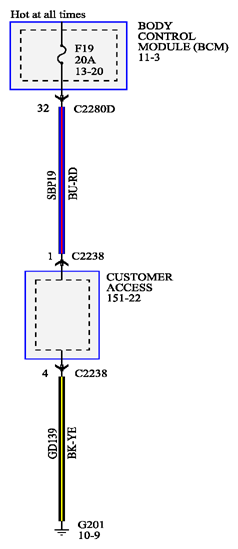

Fig 1: Audio System/Navigation - Wiring Diagram (Without Sony® Sound; 1 Of 2)
G09257687Courtesy of FORD MOTOR CO.

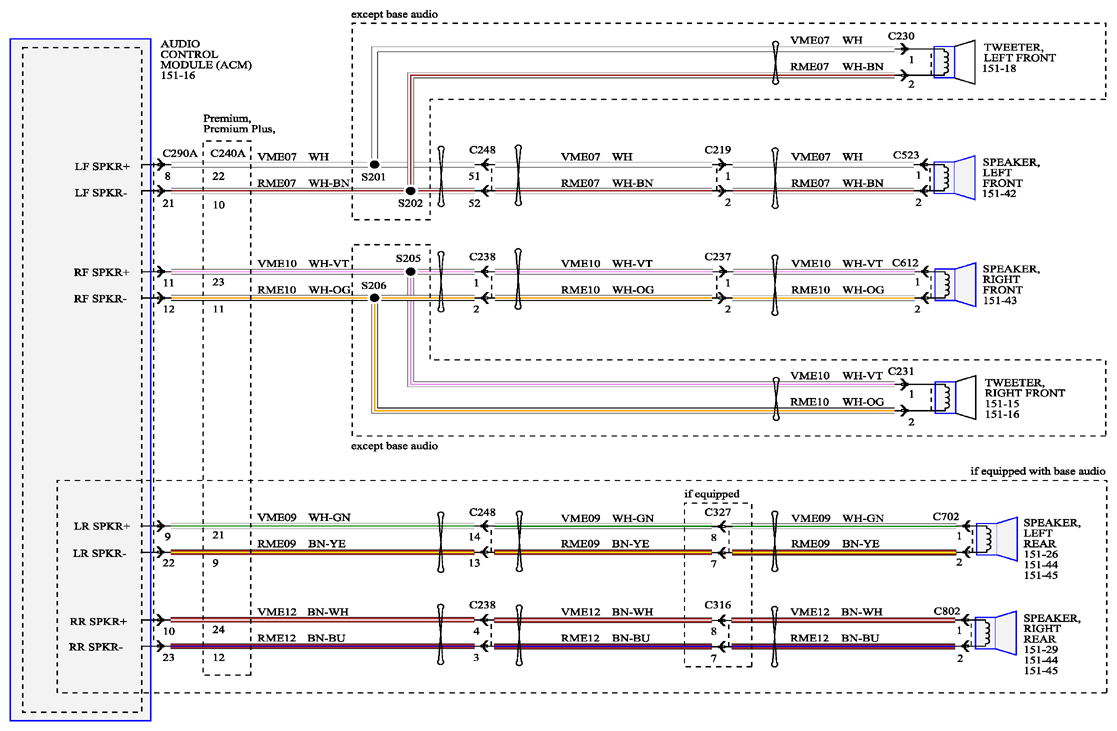

Fig 2: Audio System/Navigation - Wiring Diagram (WITHOUT SONY® SOUND; 2 Of 2)
G09257688Courtesy of FORD MOTOR CO.
