Sync Gen 2

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

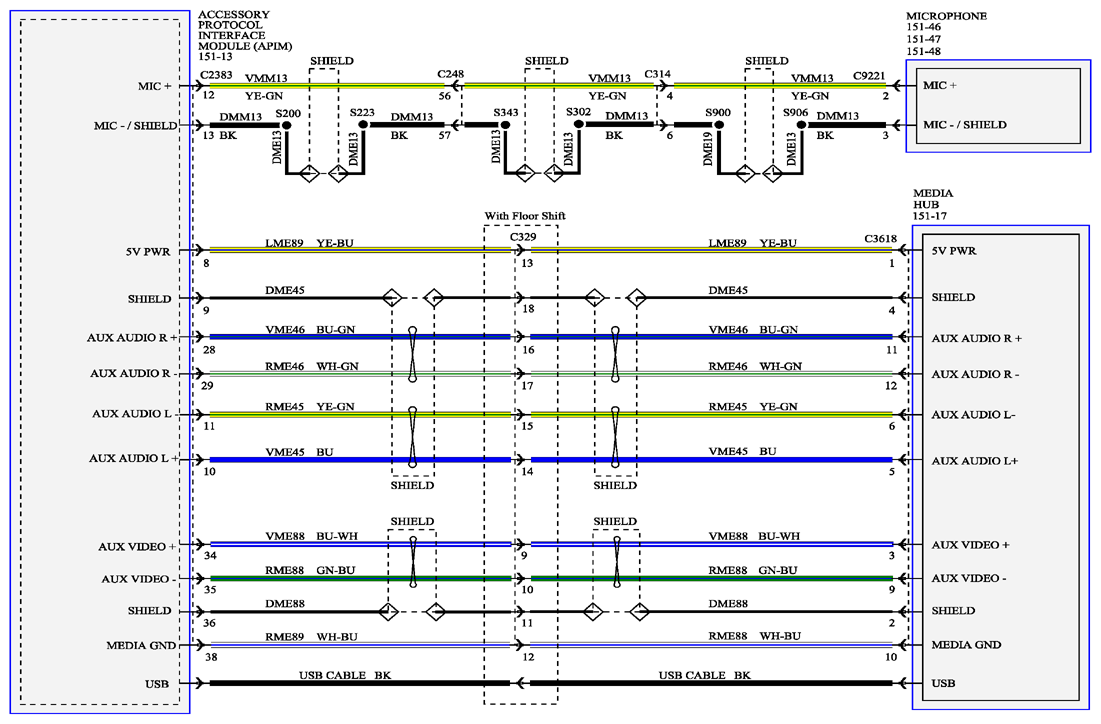

Fig 1: Audio System/Navigation - Wiring Diagram (SYNC GEN 2) (1 Of 2)
G09257693Courtesy of FORD MOTOR CO.

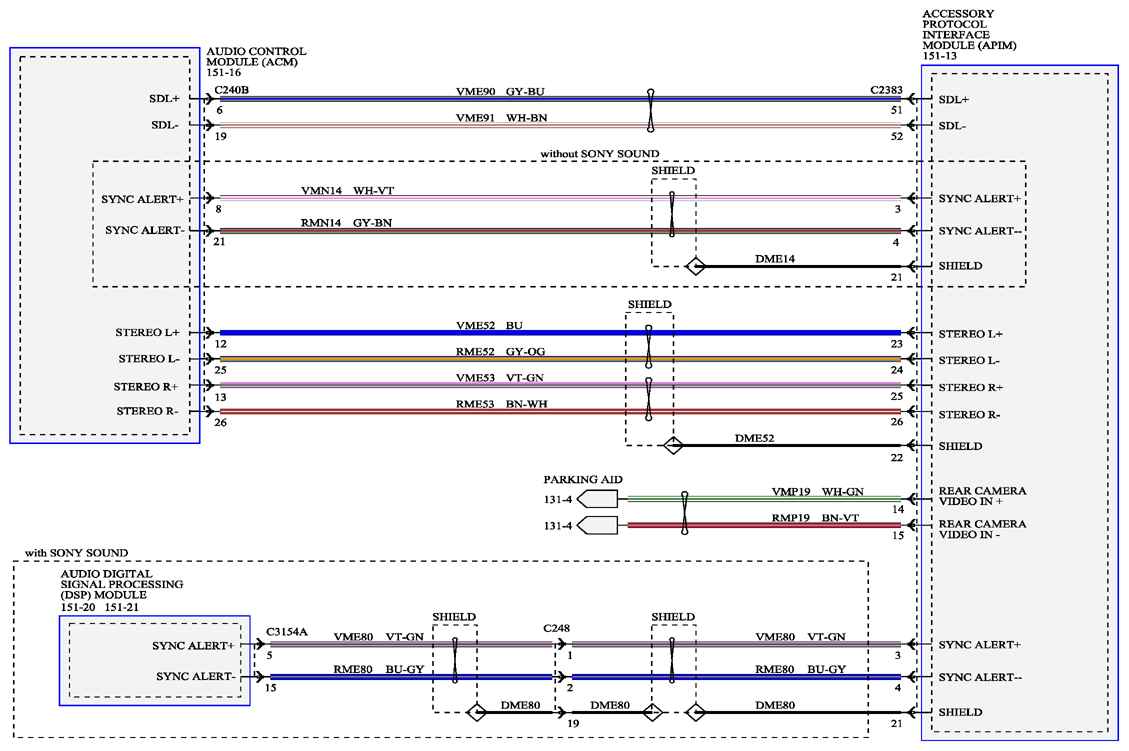

Fig 2: Audio System/Navigation - Wiring Diagram (SYNC GEN 2) (2 Of 2)
G09257695Courtesy of FORD MOTOR CO.
