Base Audio

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

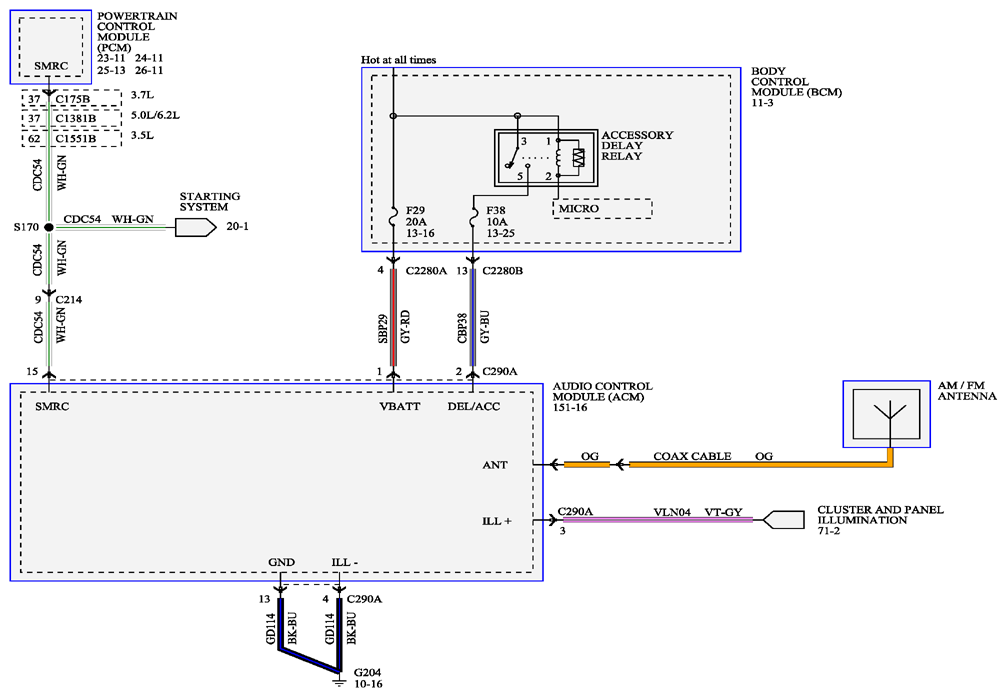

Fig 1: Audio System/Navigation - Wiring Diagram (Base Audio)
G09257684Courtesy of FORD MOTOR CO.
