Electronic Shift On The Fly (ESOF)/Torque On Demand (Tod)

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: All Wheel Drive (AWD) - Wiring Diagram (Electronic Shift On Fly/Torque On Demand)

Courtesy of FORD MOTOR CO.

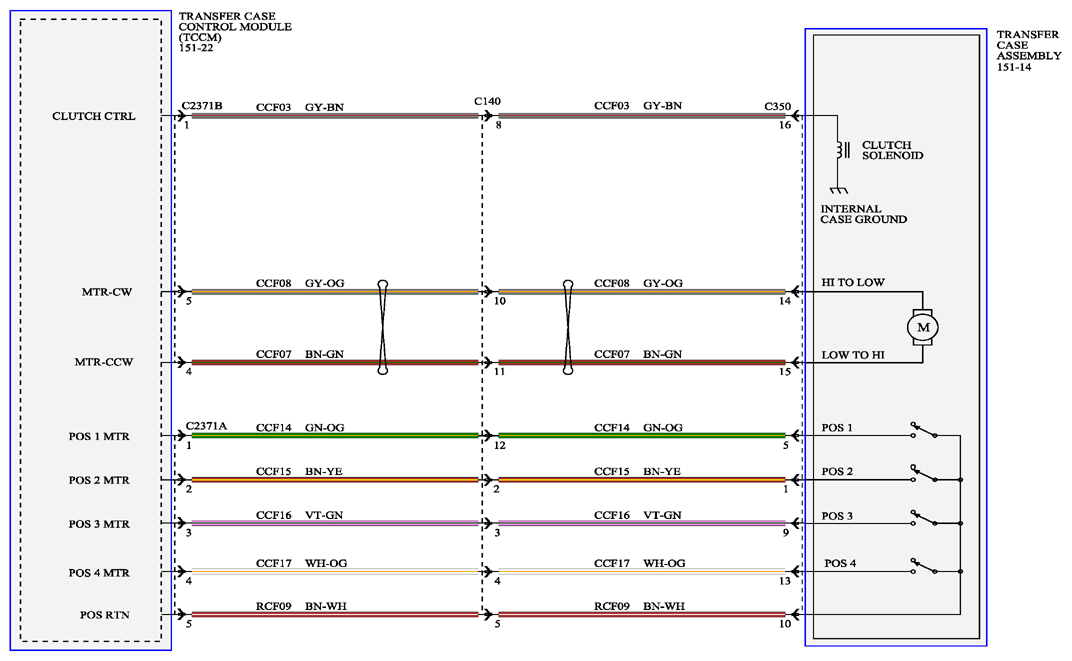

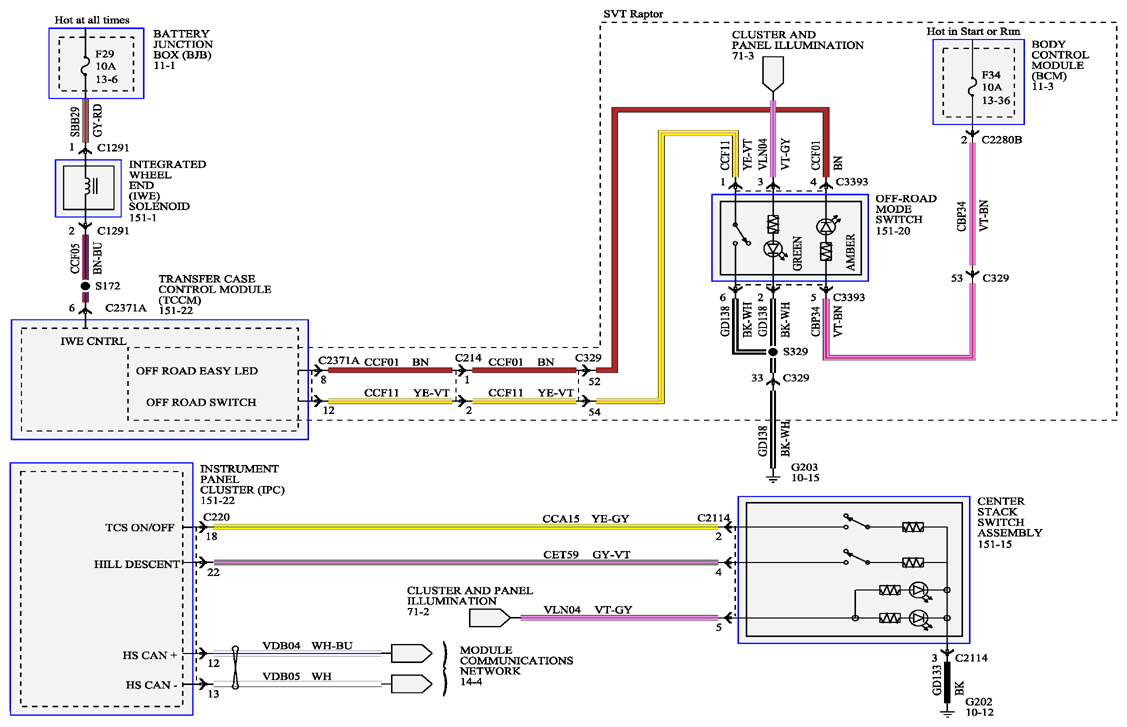

Fig 1: All Wheel Drive (AWD) - Wiring Diagram (Electronic Shift On Fly/Torque On Demand; 1 Of 2)

Courtesy of FORD MOTOR CO.

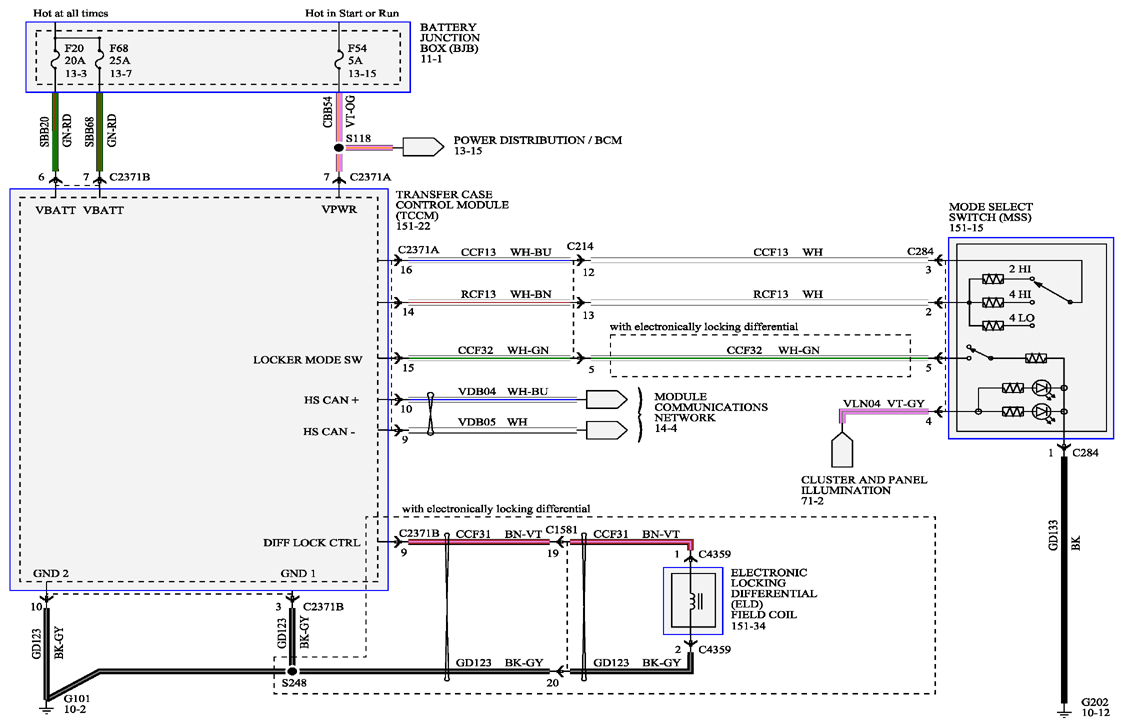

Fig 2: All Wheel Drive (AWD) - Wiring Diagram (Electronic Shift On Fly/Torque On Demand; 2 Of 2)

Courtesy of FORD MOTOR CO.
