Electronic Locking Differential (Eld)

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

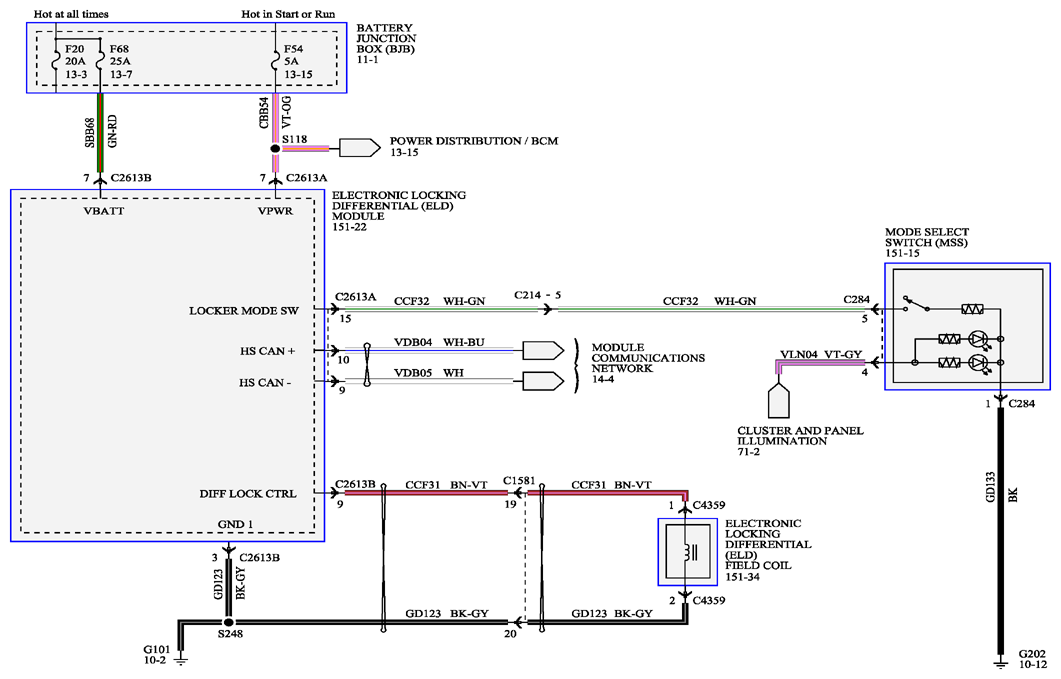

Fig 1: All Wheel Drive (AWD) - Wiring Diagram (Electronic Locking Differential)

Courtesy of FORD MOTOR CO.
