With Memory

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Adjustable Pedal - Wiring Diagram (With Memory) (1 Of 2)

Courtesy of FORD MOTOR CO.

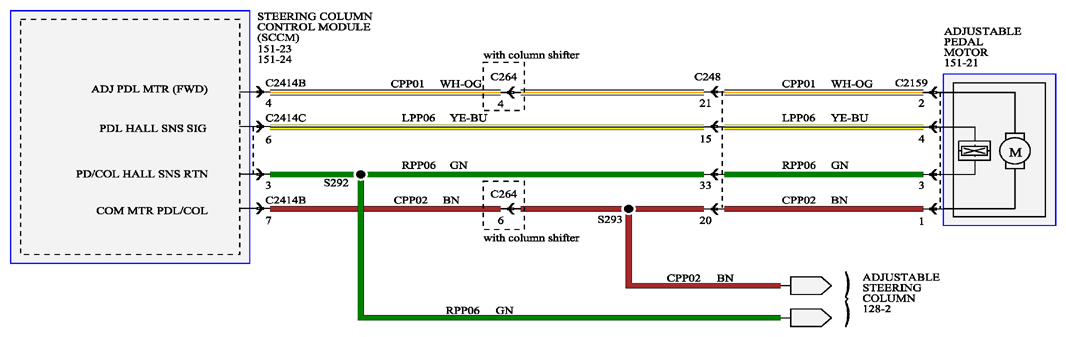

Fig 2: Adjustable Pedal - Wiring Diagram (With Memory) (2 Of 2)

Courtesy of FORD MOTOR CO.
