1.6L GTDI Transit Connect
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
SENSORS/INPUTS - 1.6L GTDI TRANSIT CONNECT

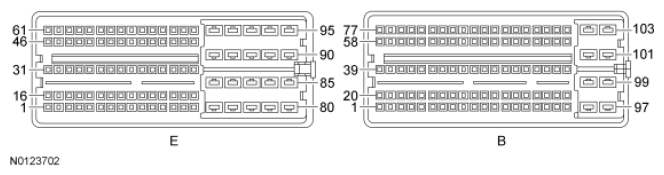

| Sensors/Inputs | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| HTRCM12 | B1 | mA | ||||
| FPM | B27 | % | ||||
| CAC_T | B32 | DEG C (DEG F) | ||||
| CAC_V | B32 | VOLTS | ||||
| AAT | B51 | DEG C (DEG F) | ||||
| AAT_V | B51 | VOLTS | ||||
| APP2 | B54 | VOLTS | ||||
| APP1 | B55 | VOLTS | ||||
| O2S12 | B57 | VOLTS | ||||
| BOO2 | B65 | ON/OFF | ||||
| BOO1 | B66 | ON/OFF | ||||
| FLP | B71 | kPa (PSI) | ||||
| FLP_V | B71 | VOLTS | ||||
| FTP | B73 | VOLTS/kPa (PSI) | ||||
| FTP_H2O | B73 | in-H2 O | ||||
| TCBP | B74 | kPa (PSI) | ||||
| TCBP_V | B74 | VOLTS | ||||
| IAT | B75 | VOLTS/DEG C (DEG F) | ||||
| MAP | E33 | VOLTS/kPa (PSI)/inHg | ||||
| MAP_GAUGE | E33 | in-H2 O | ||||
| ECT | E36 | DEG C (DEG F) | ||||
| FRP | E37 | VOLTS/kPa (PSI) | ||||
| KNOCK_2 | E50 | N/A | ||||
| TP2 | E52 | VOLTS/% | ||||
| O2S11_CUR | E63 | uA | ||||
| KNOCK_1 | E65 | N/A | ||||
| TP1 | E68 | VOLTS/% | ||||
| AC_REQ | PID | YES/NO | ||||
| APP | PID | % | ||||
| APP_MAXDIFF | PID | DEG | ||||
| APP_MODE | PID | NO PEDAL/PART PEDAL | ||||
| APP1 (APP_D) | PID | % | ||||
| APP2 (APP_E) | PID | % | ||||
| B+ | PID | VOLTS | ||||
| BARO | PID | VOLTS/kPa (PSI)/Hz/in-H2 O | ||||
| BRKOVR_ACTION | PID | NUMERIC VALUE | ||||
| BRKOVRD_POSS | PID | NUMERIC VALUE | ||||
| DECHOKE | PID | YES/NO | ||||
| DIST_BRKOVRD | PID | KM (MILES) | ||||
| EQ_RAT11 | PID | RATIO | ||||
| ETC_ACT | PID | DEG | ||||
| ETC_TRIM | PID | DEG | ||||
| FLI | PID | % | ||||
| LOAD | PID | % | ||||
| MIL_DIS | PID | KM (MILES) | ||||
| MISFIRE | PID | YES/NO | ||||
| MP_LRN | PID | YES/NO | ||||
| NUM_MISFIRE | PID | COUNT | ||||
| O2S11_IMPED | PID | VOLTS | ||||
| O2S11_READY | PID | YES/NO | ||||
| O2S11_TR | PID | Kohm | ||||
| OCTADJ_R_LRND | PID | % | ||||
| RPM | PID | RPM | ||||
| SYNC | PID | YES/NO | ||||
| TP1_LRN_TRIM | PID | DEG | ||||
| TP2_LRN_TRIM | PID | DEG | ||||
| TPMODE | PID | CLOSED/PART/WIDE OPEN THROTTLE | ||||
| TURBO_BP1_STAT | PID | FAULT/NO FAULT | ||||
| VCT_EXH_ACT1 | PID | DEG | ||||
| VCT_EXH_DIF1 | PID | DEG | ||||
| VCT_INT_ACT1 | PID | DEG | ||||
| VCT_INT_DIF1 | PID | DEG | ||||
| VCTSYS | PID | OPEN LOOP/CLOSED LOOP | ||||
| VSS | PID | km/h/MPH | ||||
ACTUATORS/OUTPUTS - 1.6L GTDI TRANSIT CONNECT
| Actuators/Outputs | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| HTR12 | B1 | ON/OFF | ||||
| EVAPCV | B20 | %/ON-OFF | ||||
| EVAPCP | B22 | % | ||||
| FP | B39 | %/ON/OFF | ||||
| VCT_INT_DC1 | E1 | % | ||||
| TURBO_BPASS | E3 | ON/OFF | ||||
| HTR11 | E14 | ON/OFF | ||||
| O2S11_HTR | E14 | % | ||||
| TURBO_WGATE | E16 | % | ||||
| VCT_EXH_DC1 | E29 | % | ||||
| ETC [TAC_PCT] | PID | % | ||||
| EVAP020C | PID | YES/NO | ||||
| EVAPSOAK | PID | YES/NO | ||||
| EVAPSTA | PID | STATUS | ||||
| FANDC | PID | % | ||||
| FUELSYS | PID | OPEN/CLOSED LOOP | ||||
| GRILL_A_CMD | PID | %/OPEN/CLOSED/VARYING | ||||
| GRILL_A_INF | PID | % | ||||
| GRILL_CMDCAL | PID | YES/NO | ||||
| LONGFT1 | PID | % | ||||
| MIL | PID | ON/OFF | ||||
| O2_DS_DISBL | PID | YES/NO | ||||
| RO2FT1 | PID | % | ||||
| SHRTFT1 | PID | % | ||||
| SPARKADV | PID | DEG | ||||
| TQ_CNTRL | PID | STATUS | ||||
OTHER - 1.6L GTDI TRANSIT CONNECT
| Other | PCM Pin/PID Only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| VREF | B11/B13/B14/E6/E8 | VOLTS | ||||
| VPWR | B101/B102/B103 | VOLTS | ||||
