Pinpoint Tests AK: Turbocharger Actuator and Turbocharger Wastegate Regulating Valve Solenoid: Introduction

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: VPWR, TCWRVS and VGTC
turbocharger actuator (9J559)
turbocharger wastegate regulating valve solenoid
powertrain control module (PCM) (12A650)

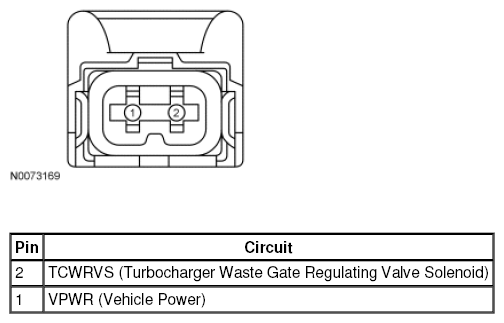

Fig 1: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector
Courtesy of FORD MOTOR CO.

Fig 2: Identifying Turbocharger Actuator Connector
Courtesy of FORD MOTOR CO.

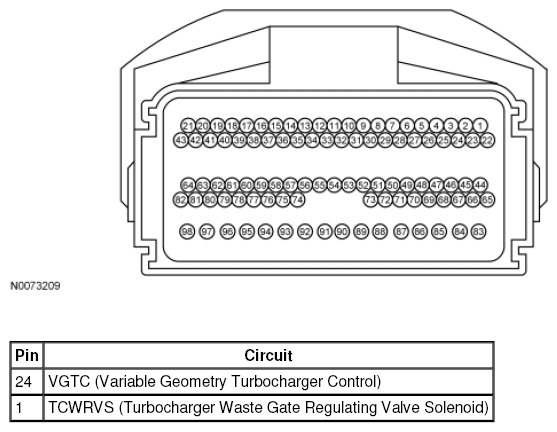

Fig 3: Identifying Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.
