Section 499 (OEM Component Harness Location Views)
>>
Component Location Views
Component Location Views
WARNING:
This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

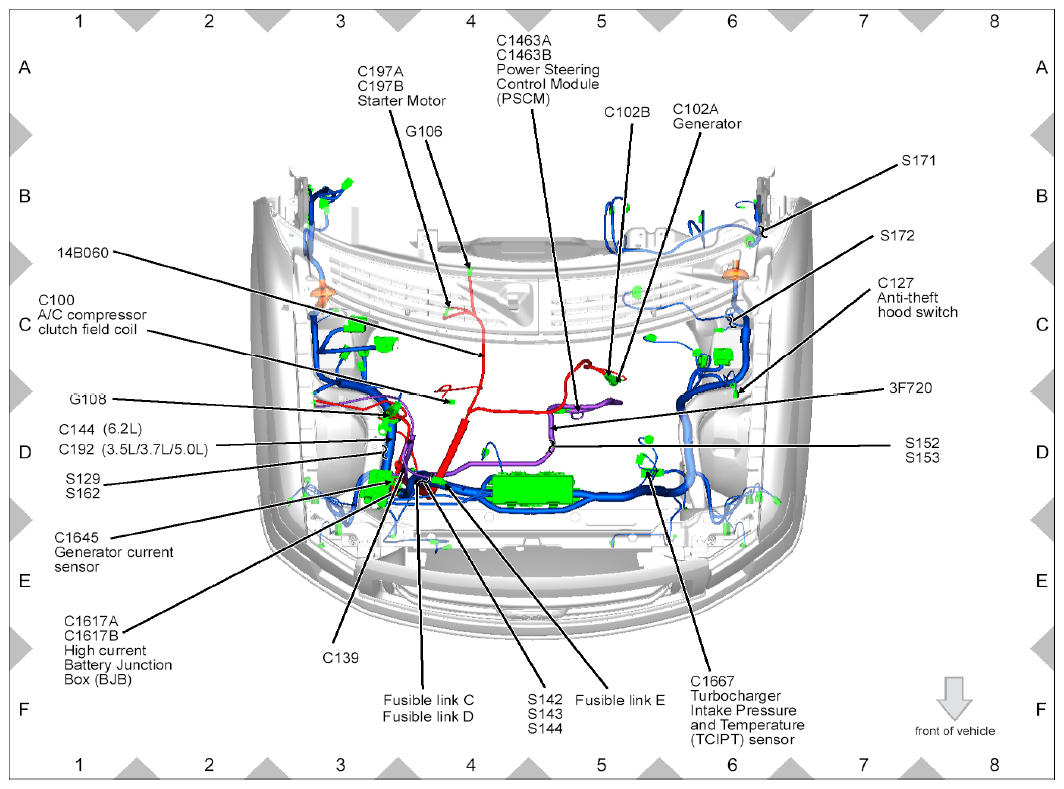

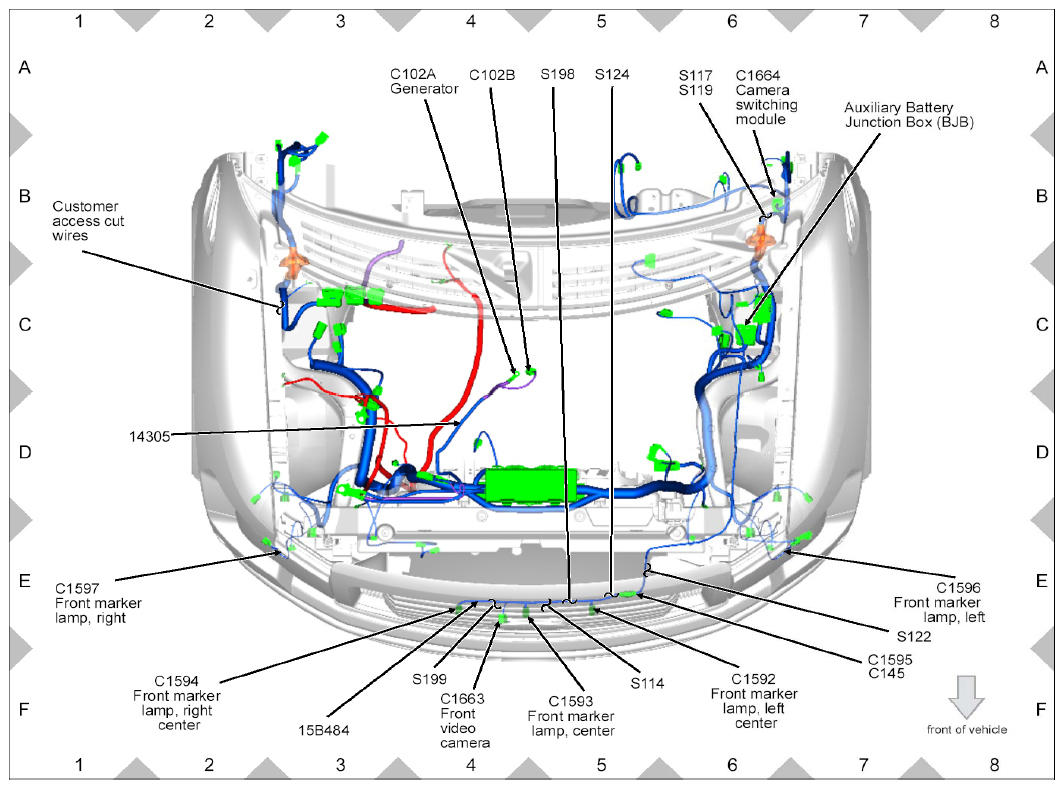

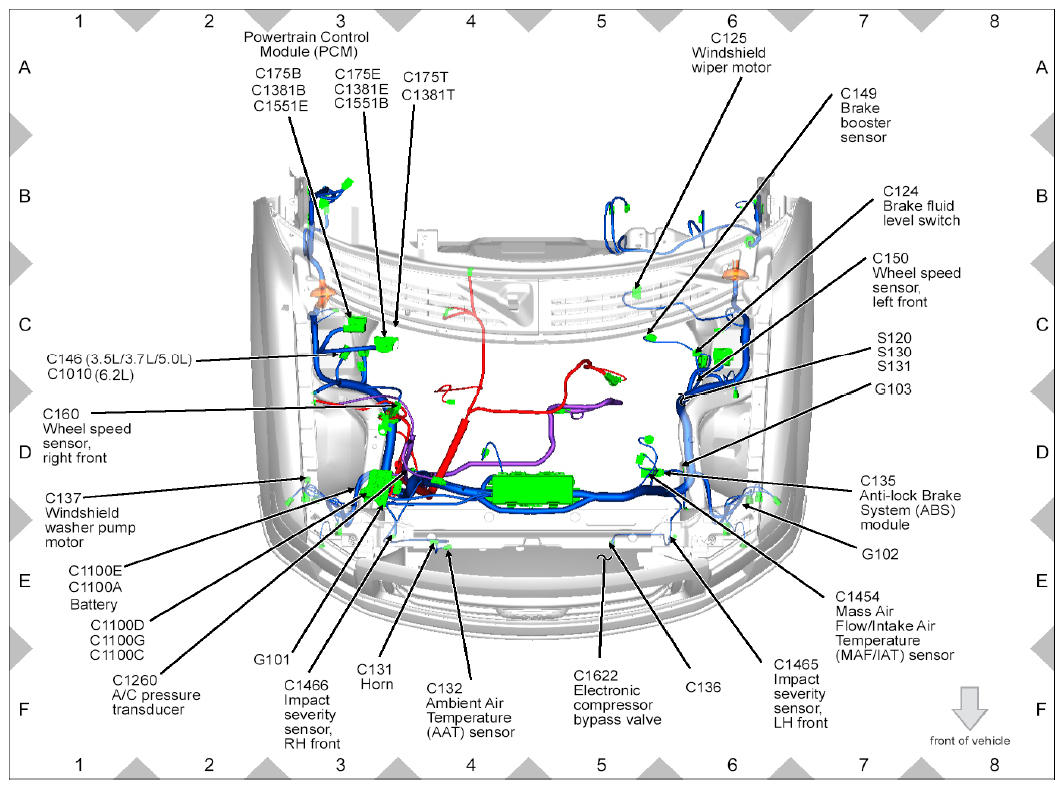

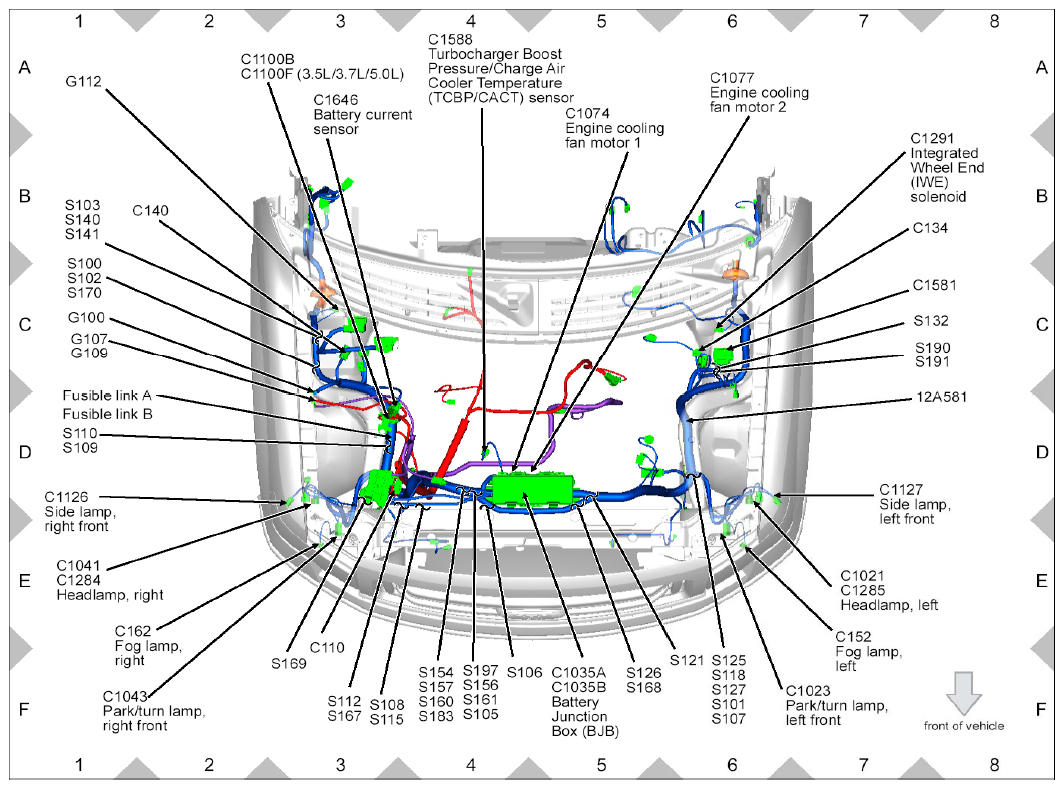

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.
Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

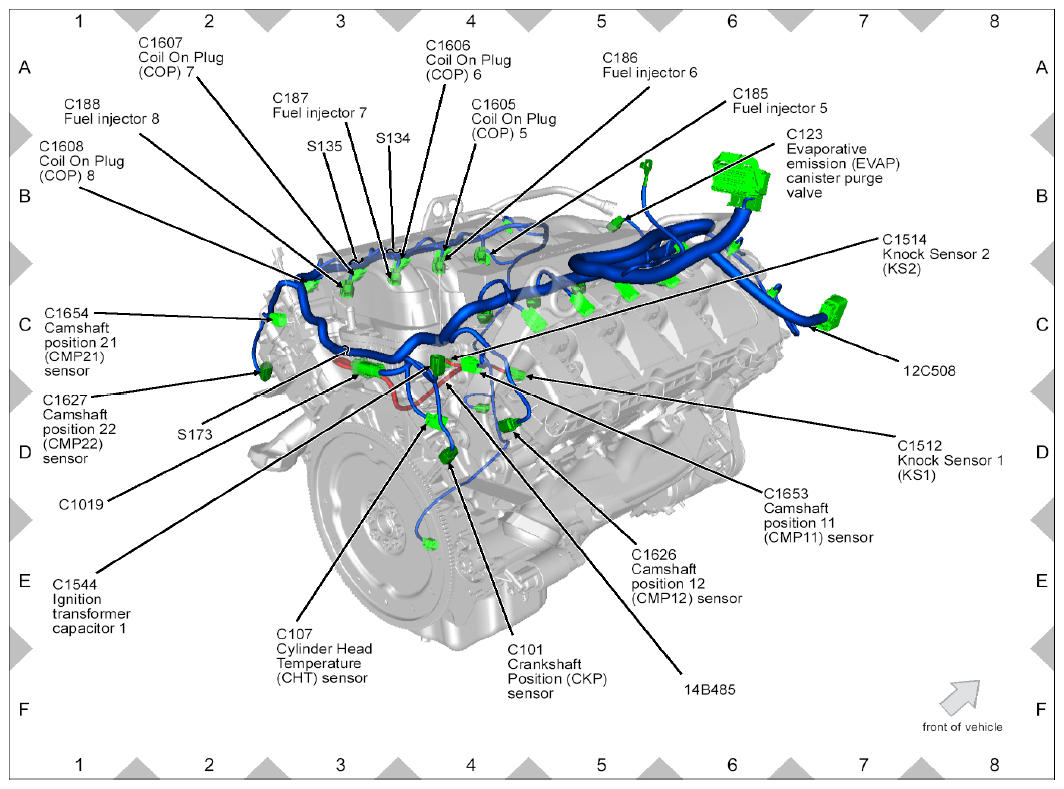

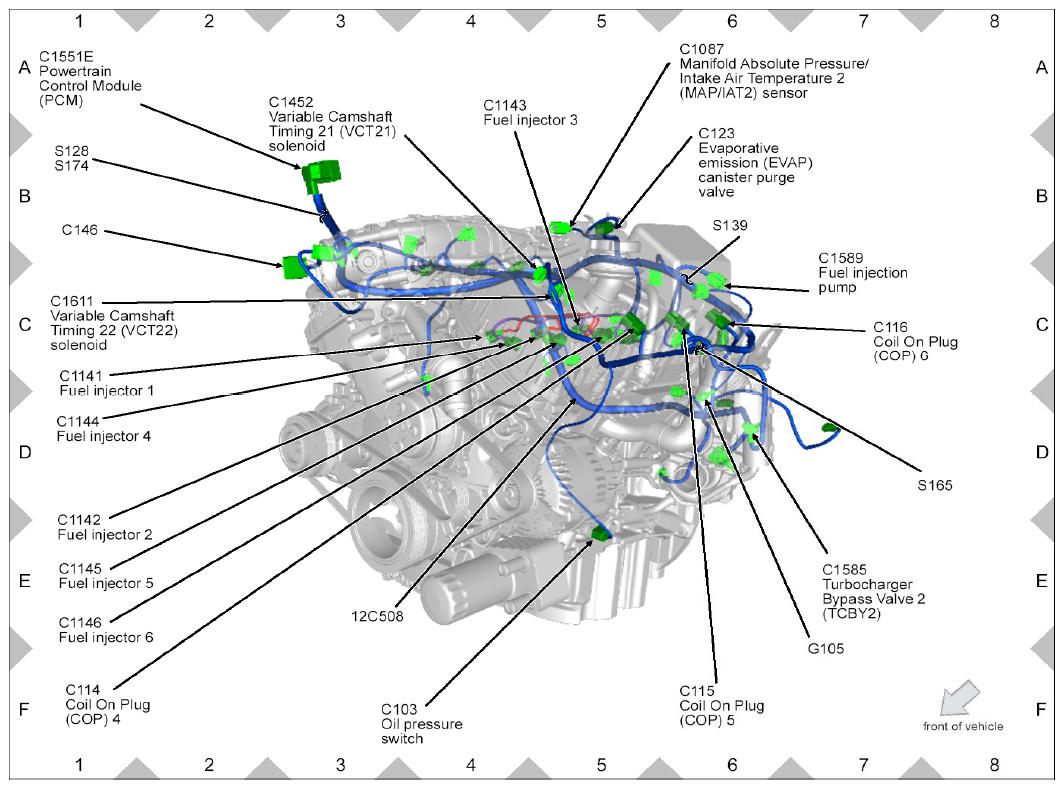

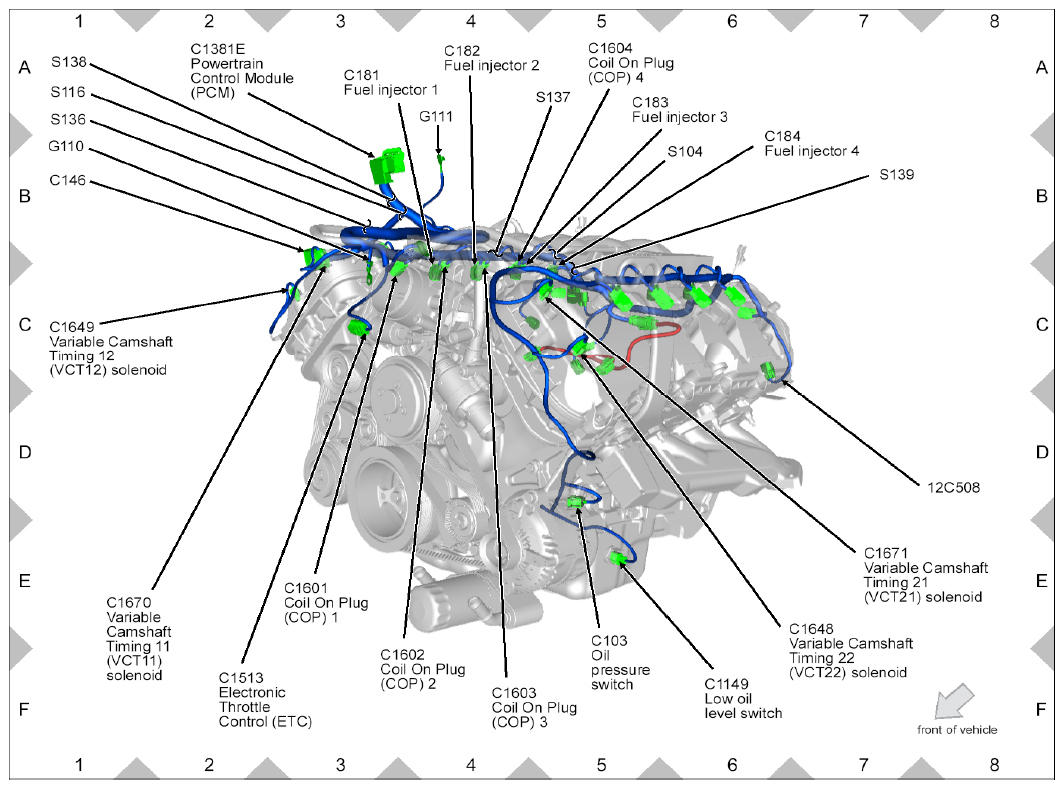

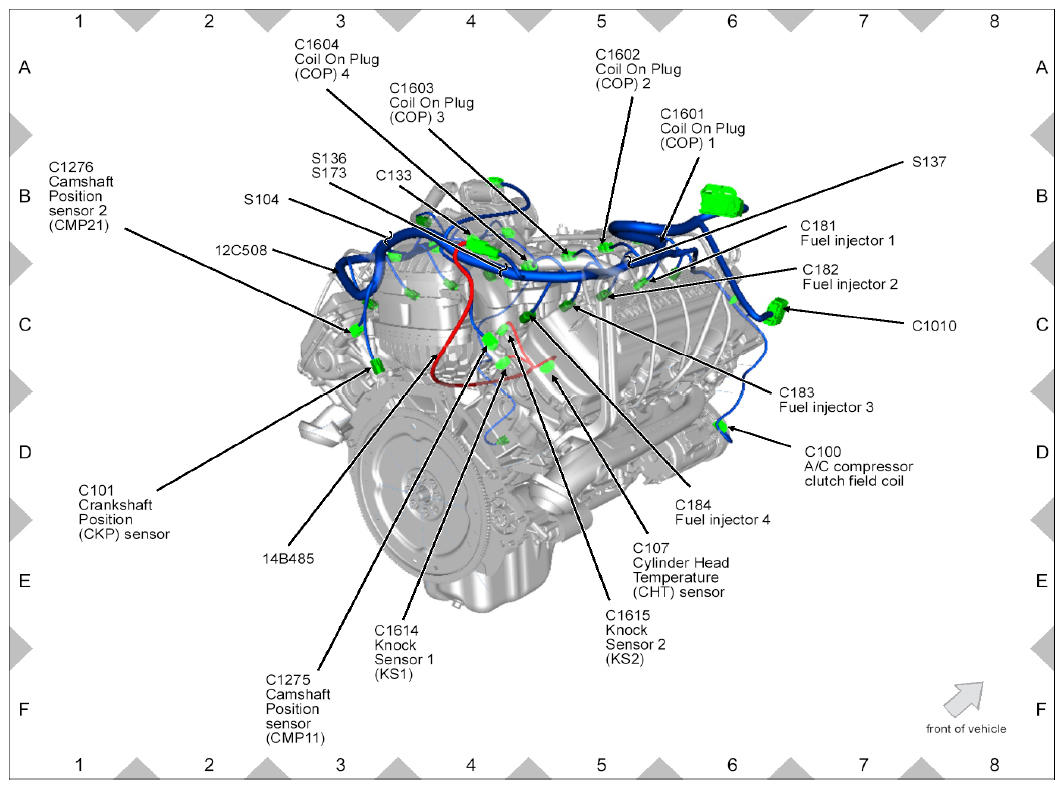

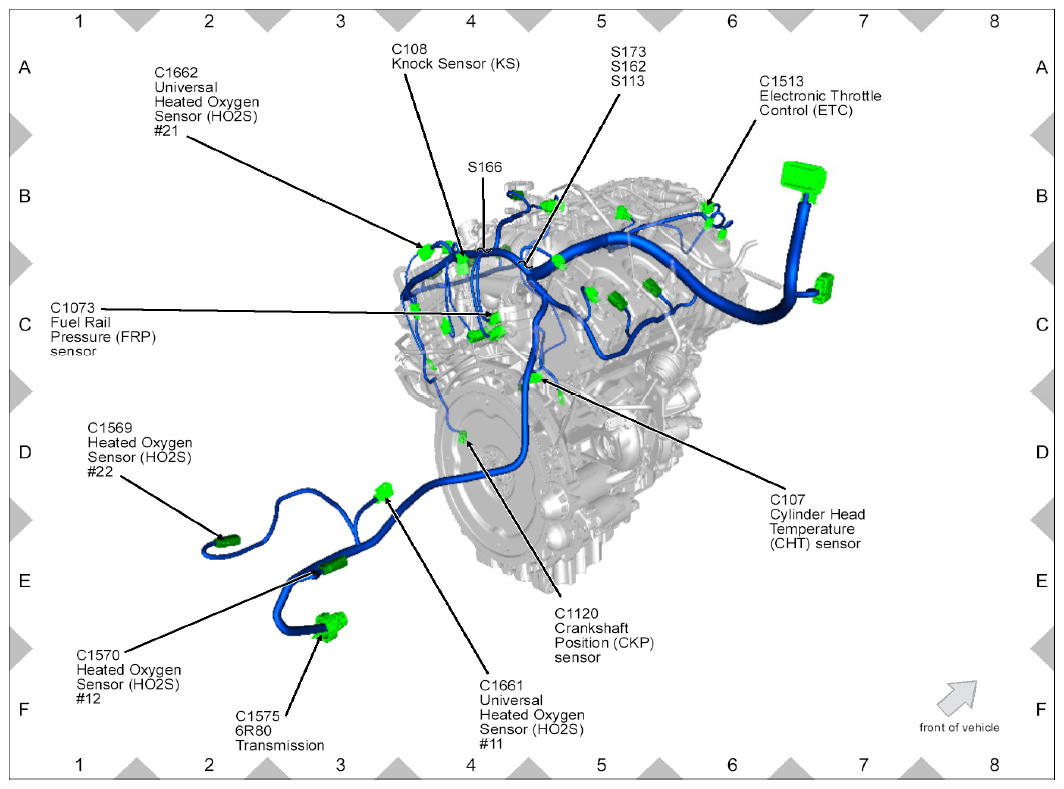

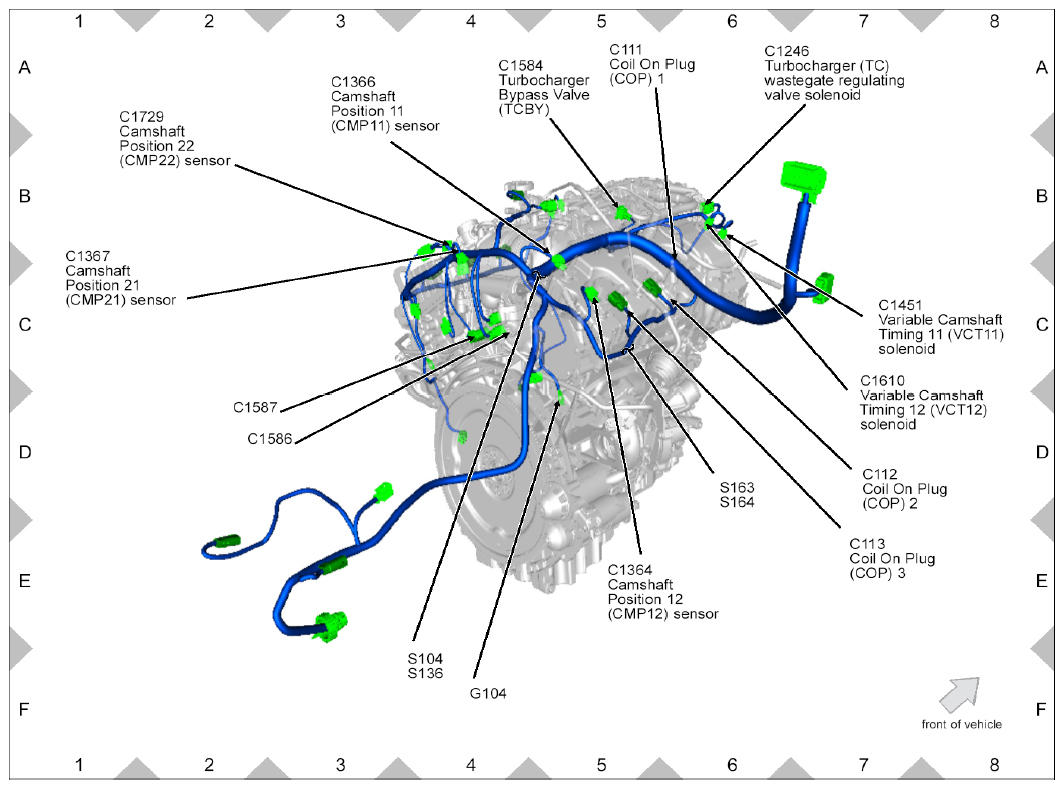

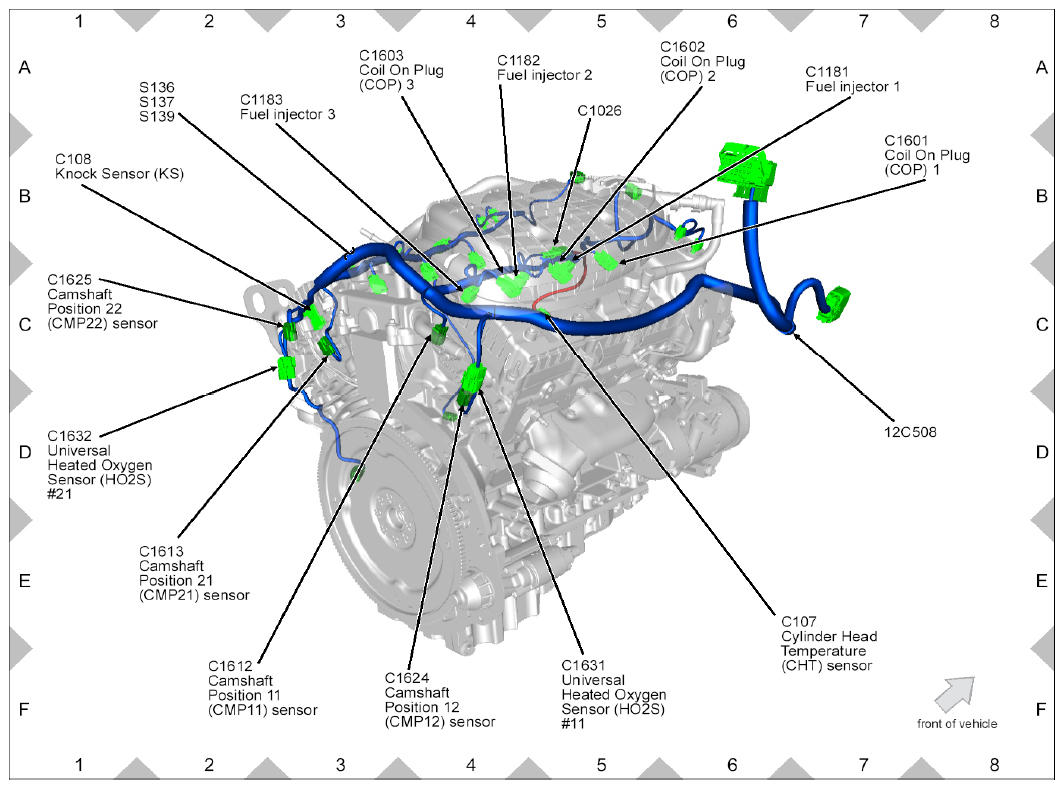

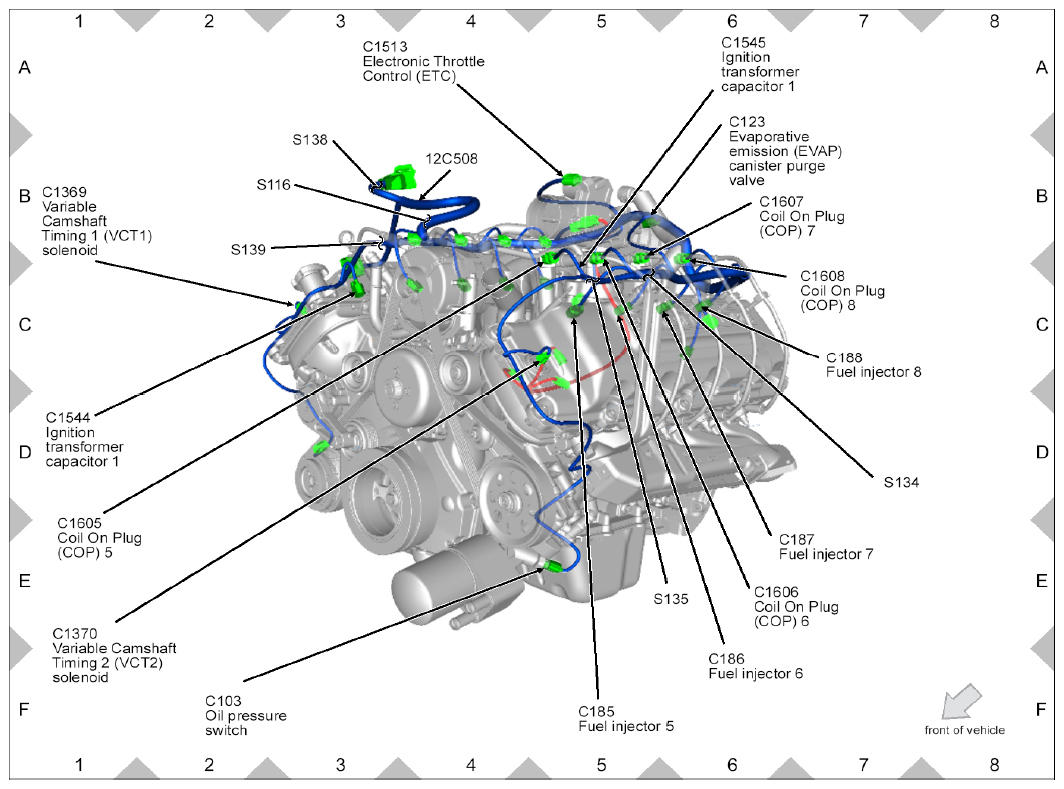

Fig 5: Engine Wiring Harness Connectors Location (1 Of 9)
Courtesy of FORD MOTOR CO.

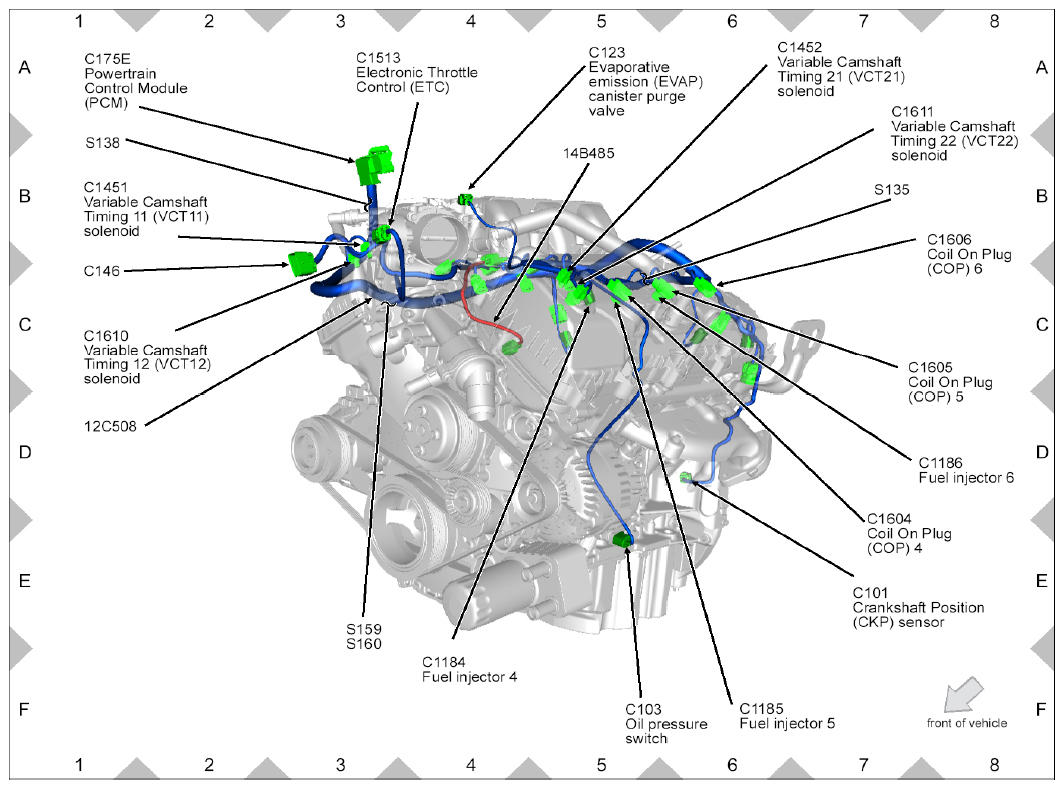

Fig 6: Engine Wiring Harness Connectors Location (2 Of 9)
Courtesy of FORD MOTOR CO.
Fig 7: Engine Wiring Harness Connectors Location (3 Of 9)
Courtesy of FORD MOTOR CO.
Fig 8: Engine Wiring Harness Connectors Location (4 Of 9)
Courtesy of FORD MOTOR CO.
Fig 9: Engine Wiring Harness Connectors Location (5 Of 9)
Courtesy of FORD MOTOR CO.
Fig 10: Engine Wiring Harness Connectors Location (6 Of 9)
Courtesy of FORD MOTOR CO.
Fig 11: Engine Wiring Harness Connectors Location (7 Of 9)
Courtesy of FORD MOTOR CO.
Fig 12: Engine Wiring Harness Connectors Location (8 Of 9)
Courtesy of FORD MOTOR CO.
Fig 13: Engine Wiring Harness Connectors Location (9 Of 9)
Courtesy of FORD MOTOR CO.

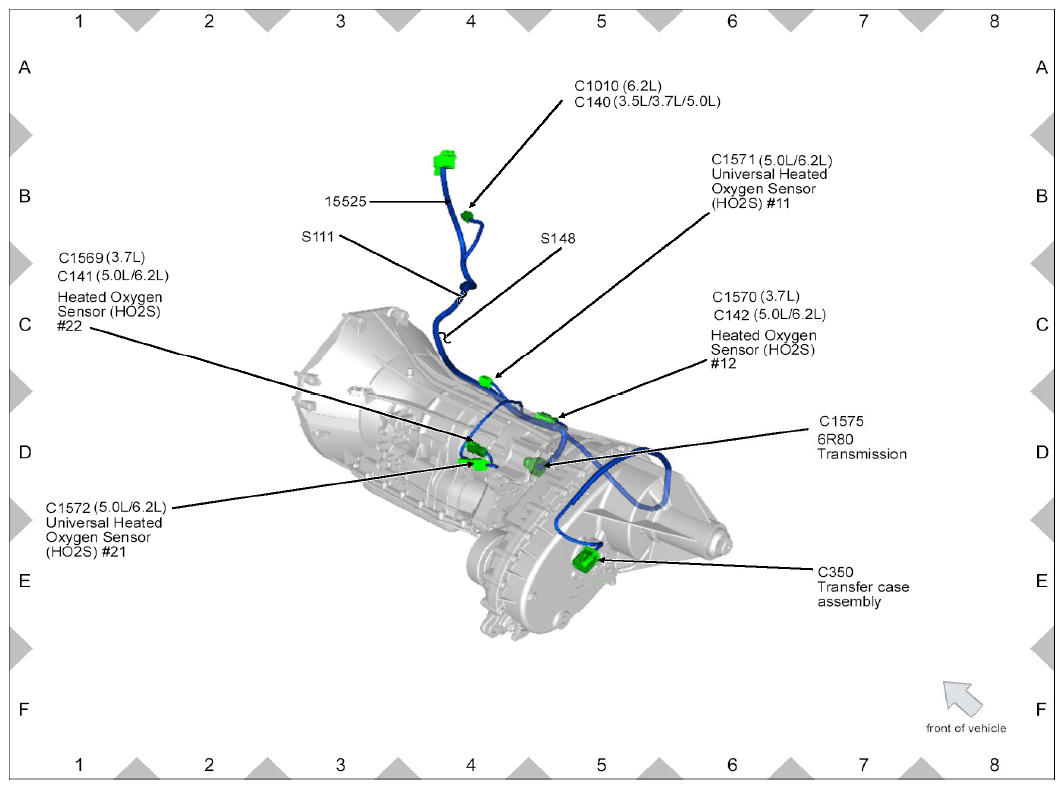

Fig 14: Transmission Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

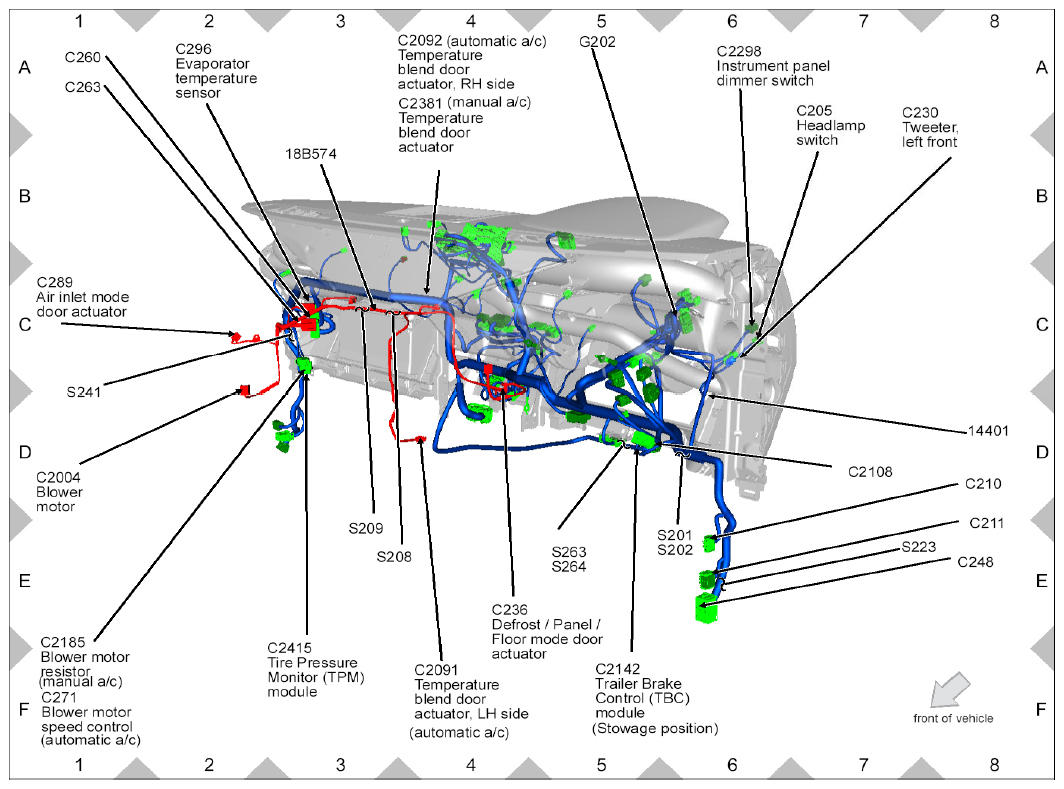

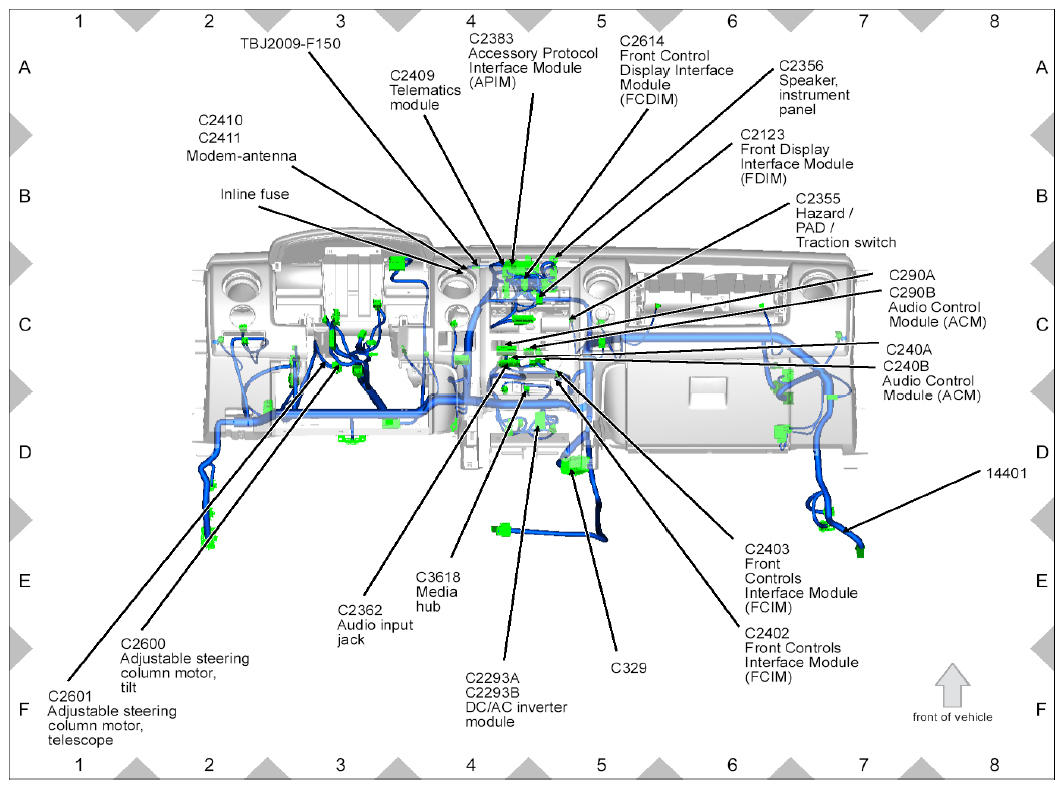

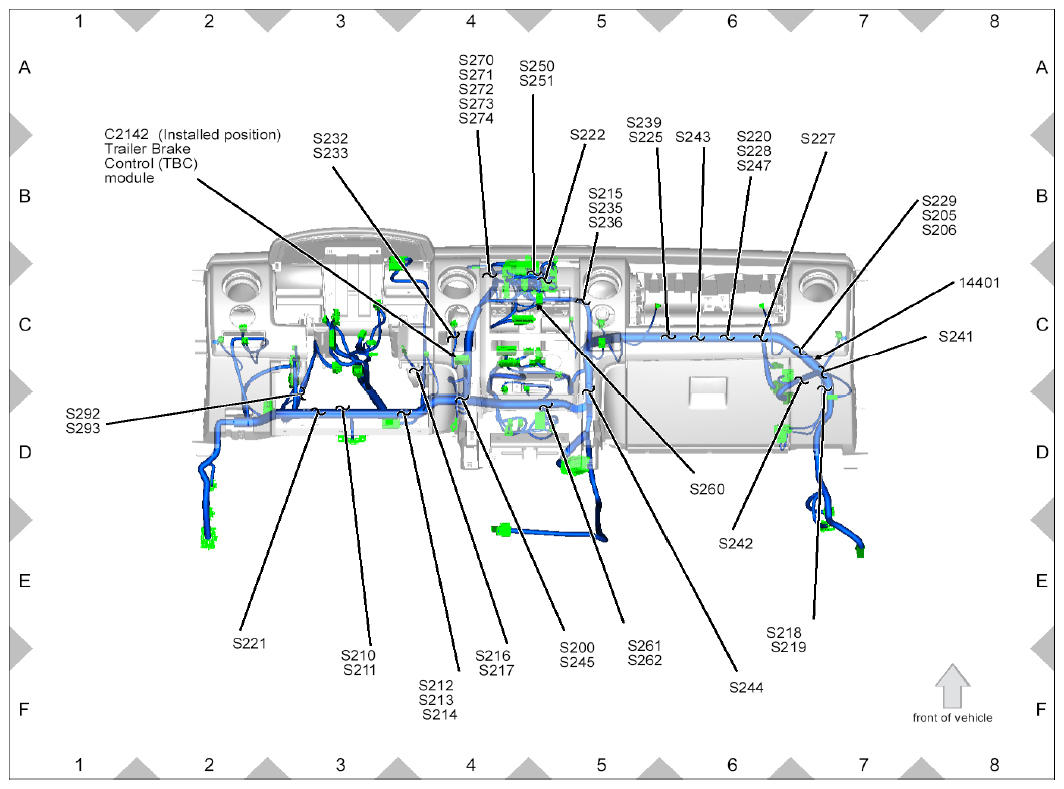

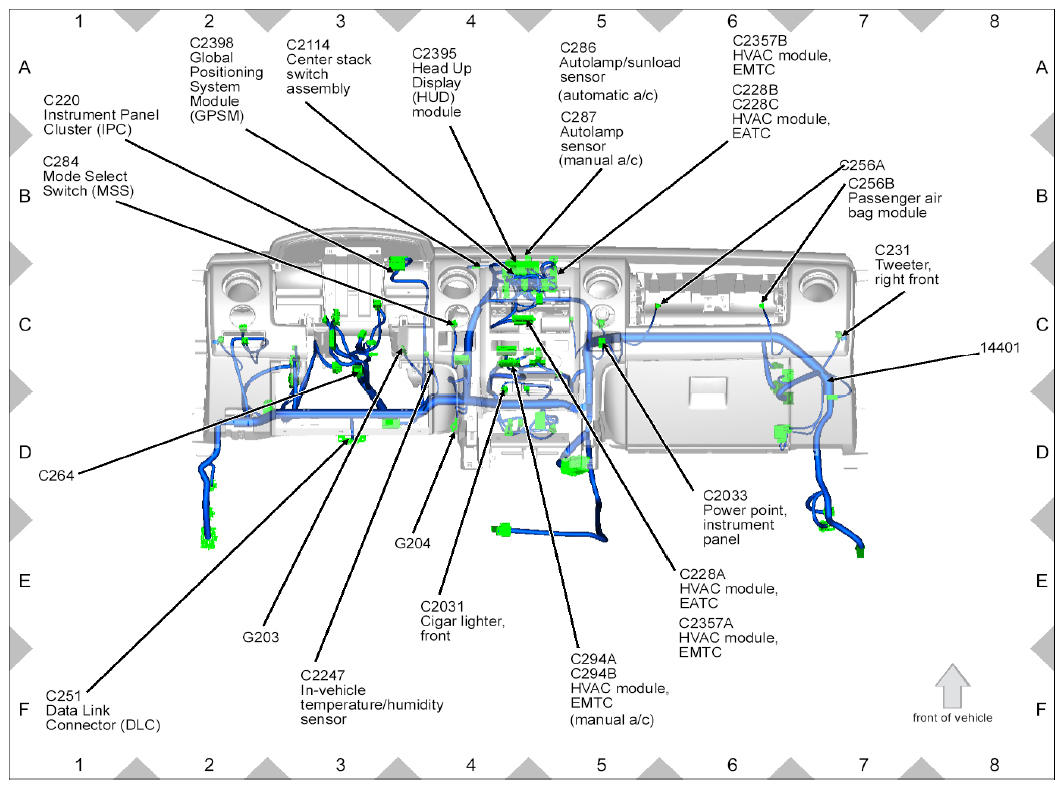

Fig 15: Dash Board Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 16: Dash Board Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 17: Dash Board Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.
Fig 18: Dash Board Wiring Harness Connectors Location - Back Side
Courtesy of FORD MOTOR CO.

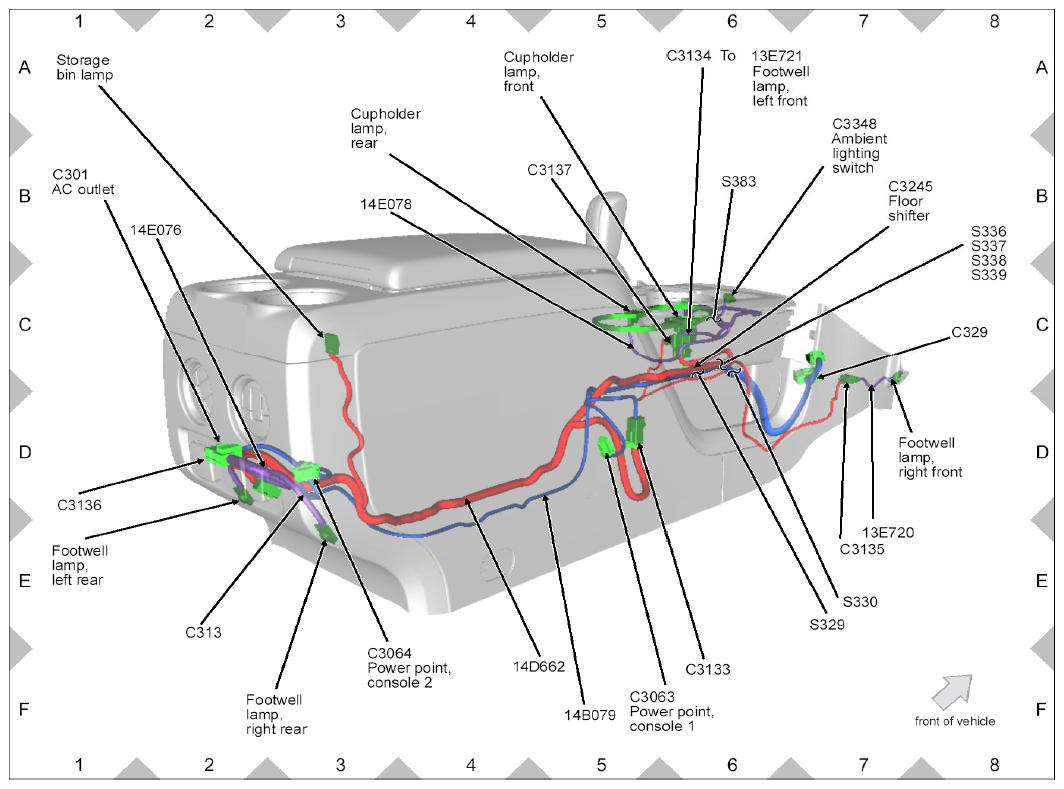

Fig 19: Center Console Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

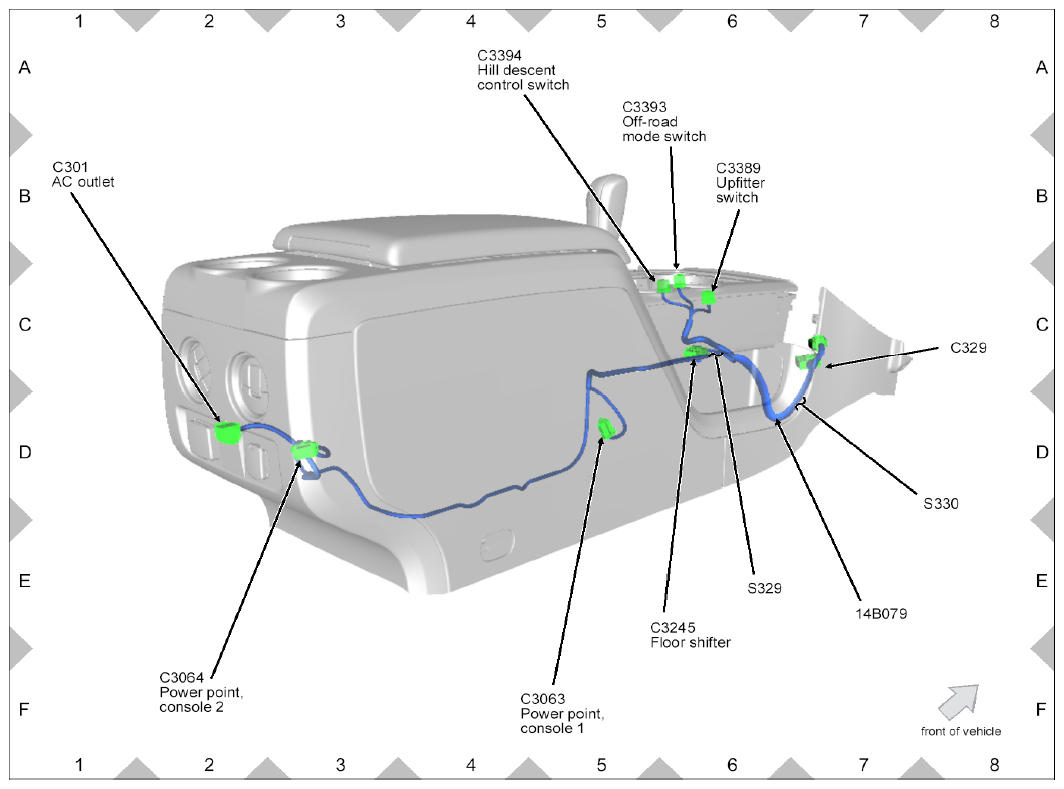

Fig 20: Center Console Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

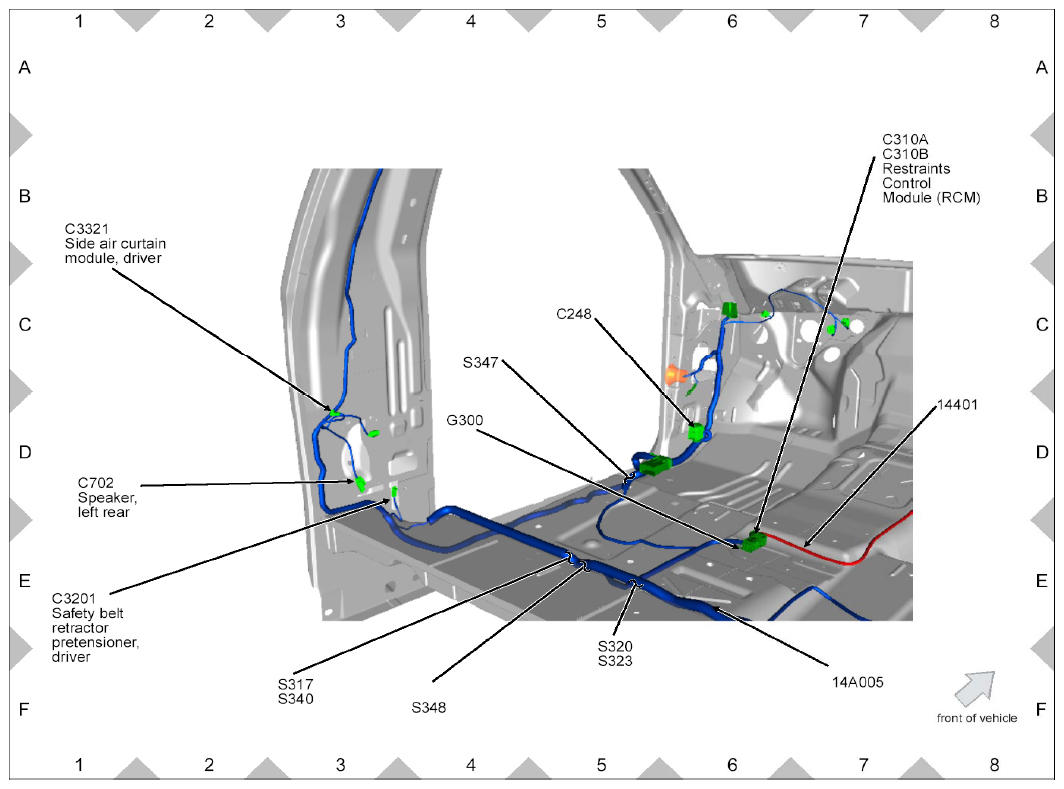

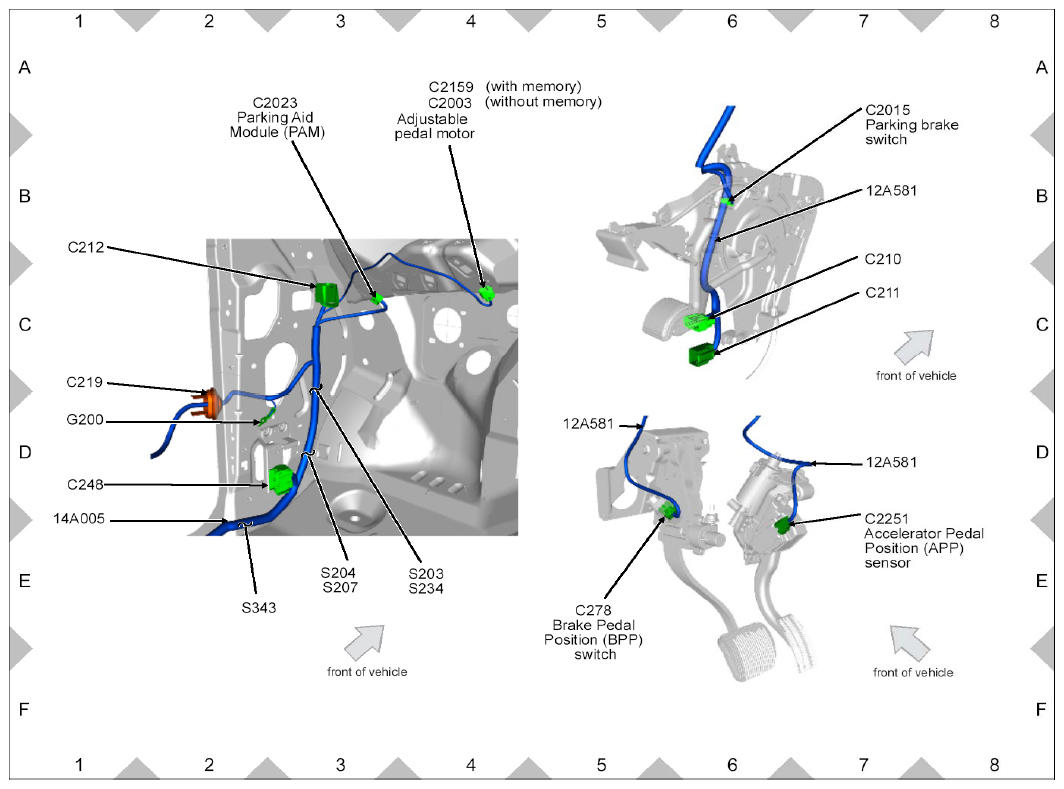

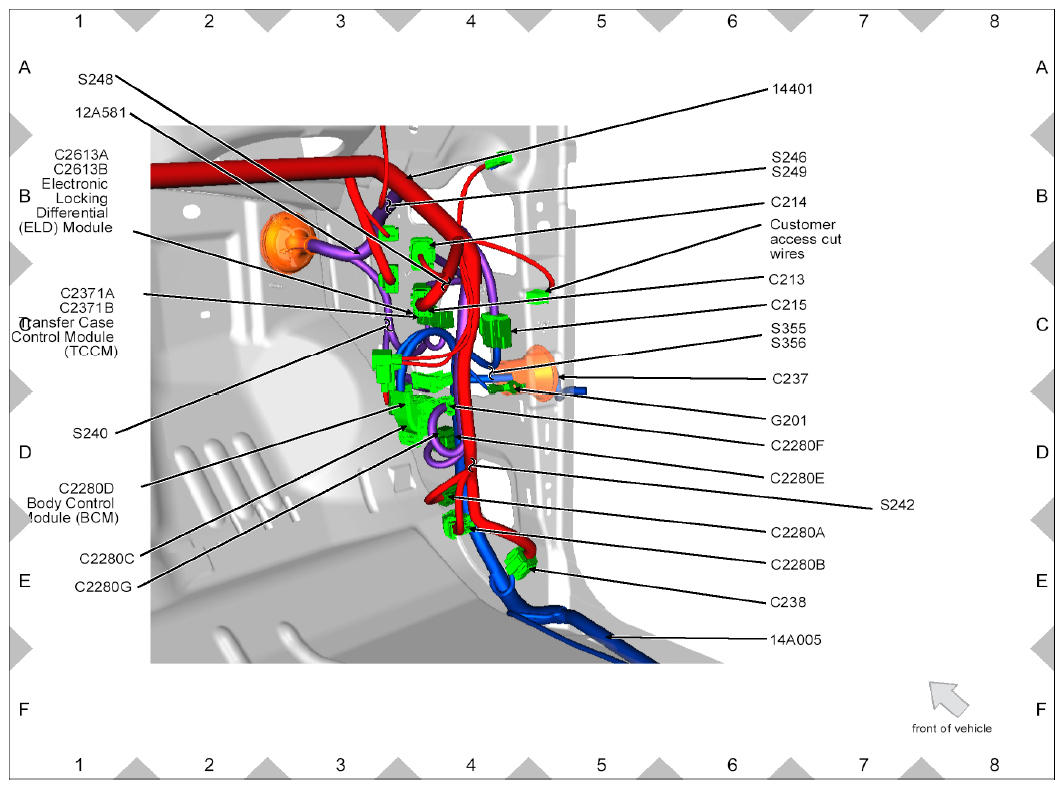

Fig 21: LH Front Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 22: RH Front Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

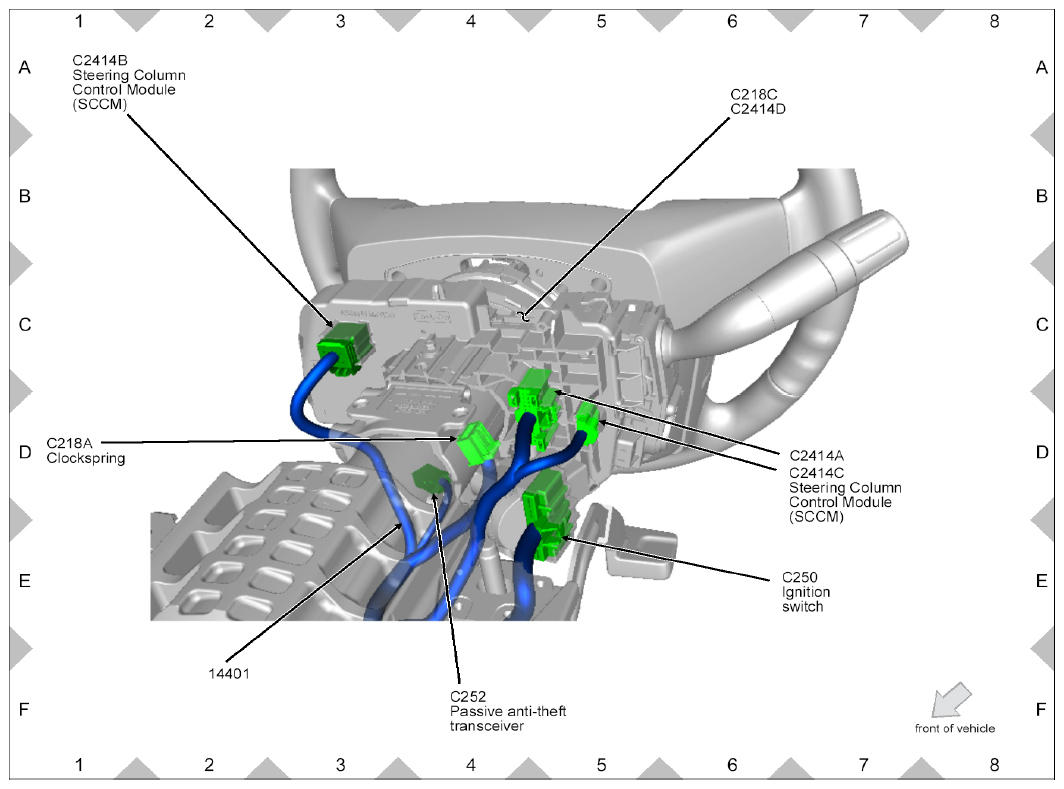

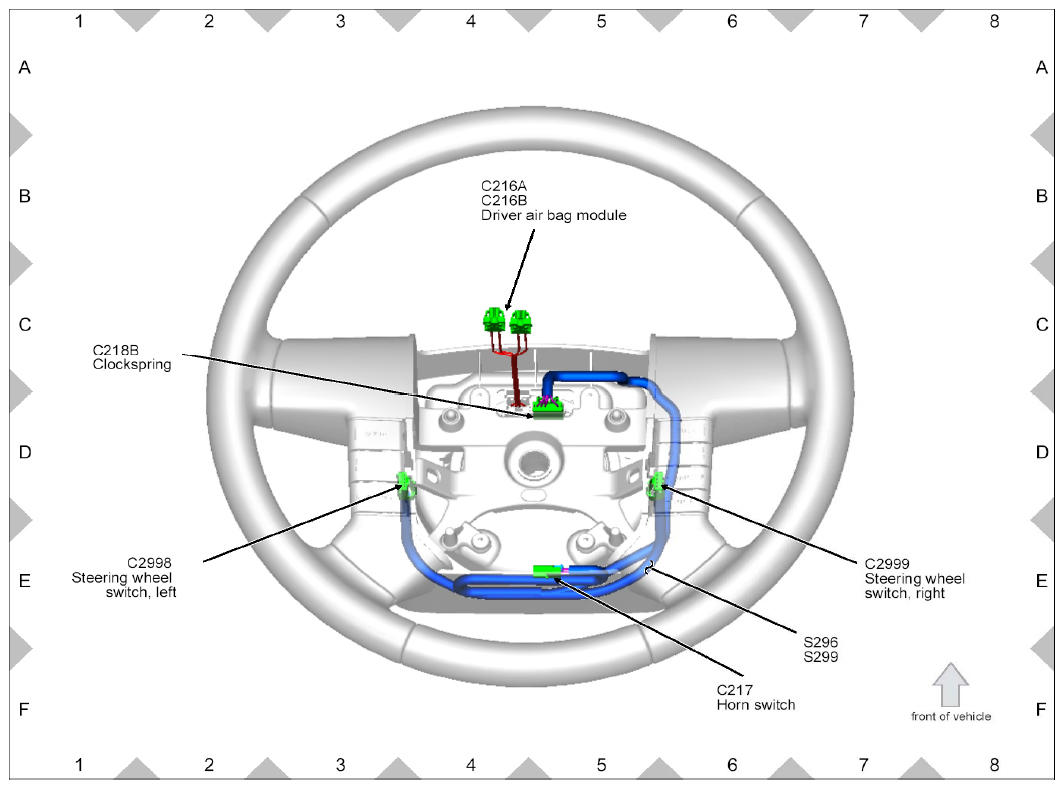

Fig 23: Steering Column Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.

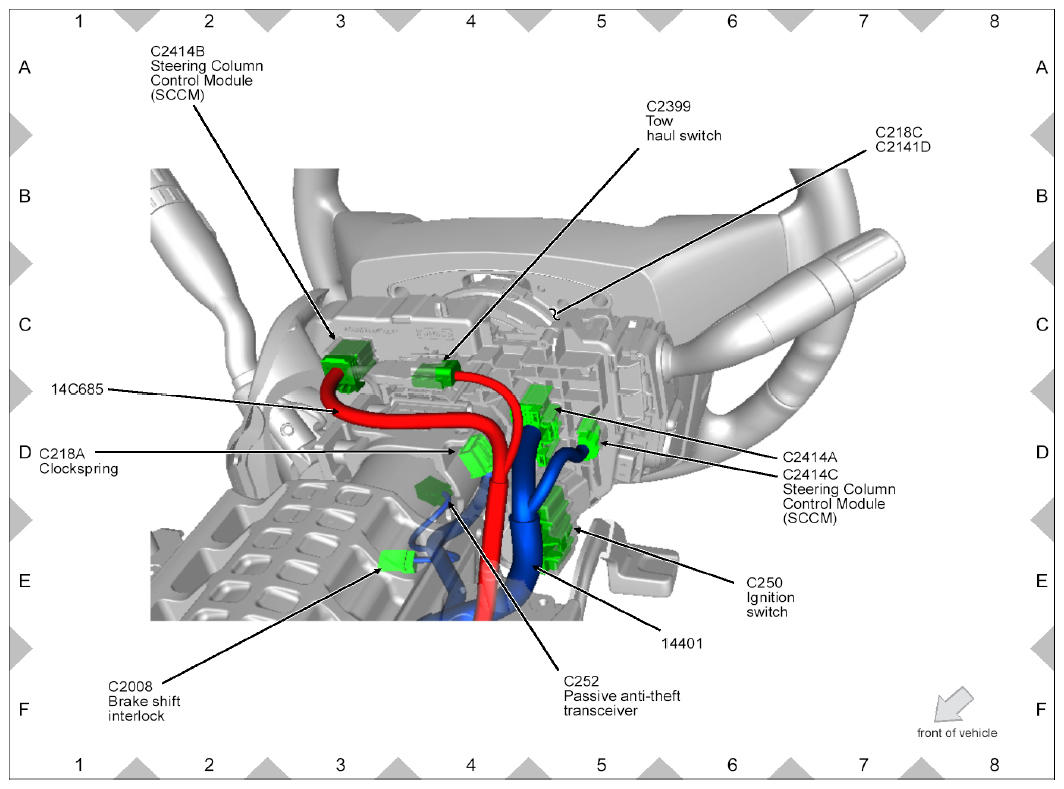

Fig 24: Steering Column Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 25: Steering Column Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

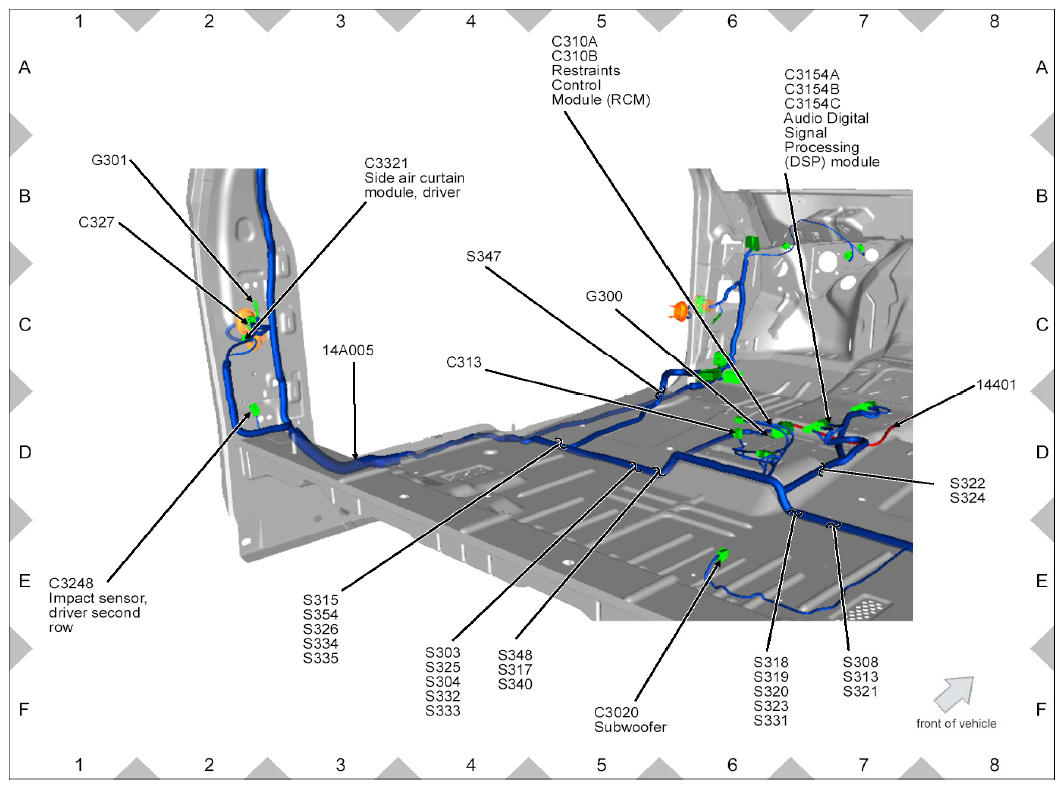

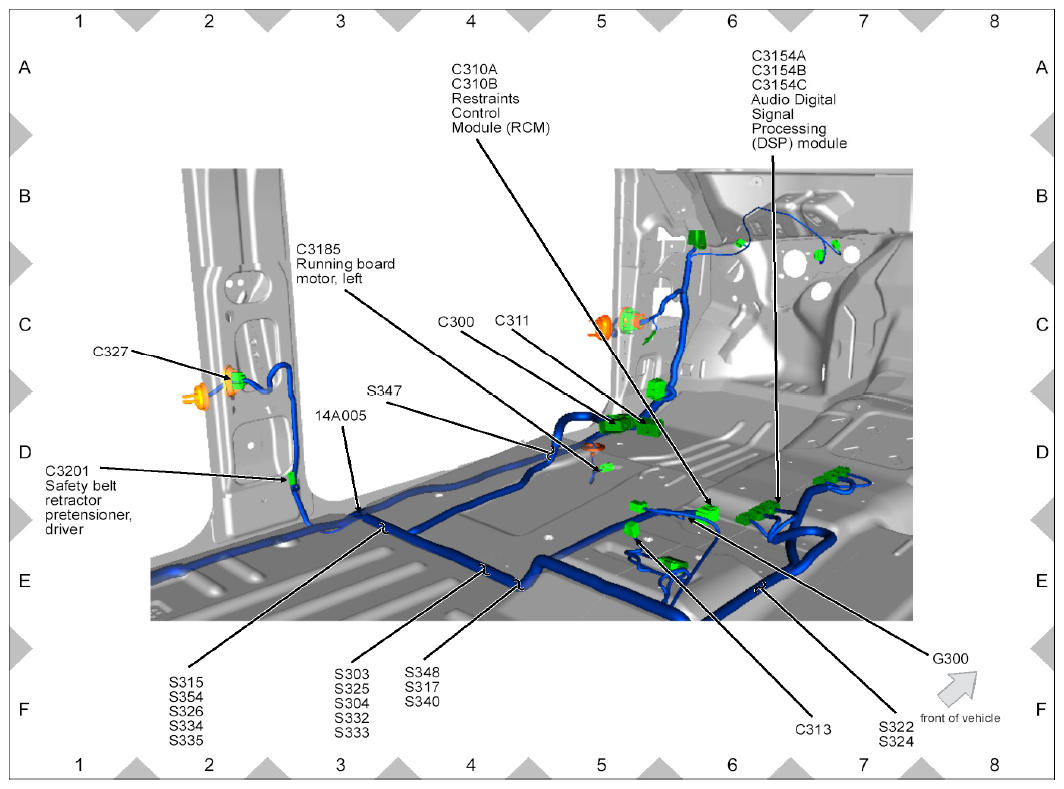

Fig 26: LH Front Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.

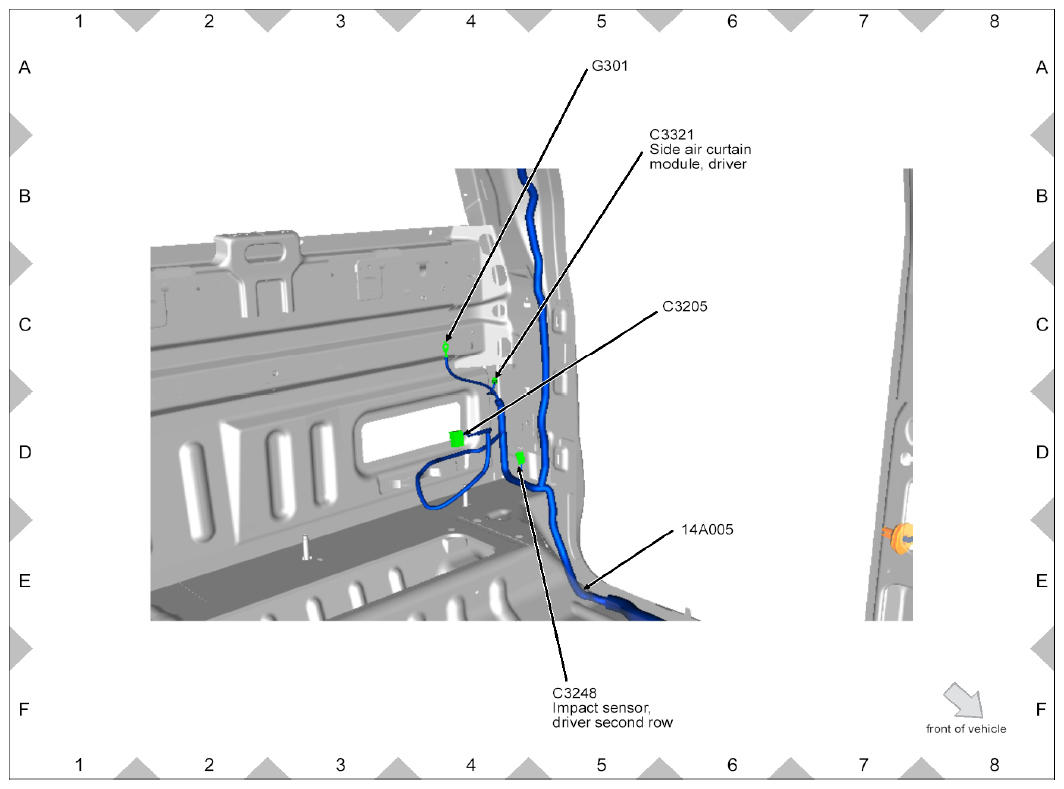

Fig 27: LH Front Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 28: LH Front Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

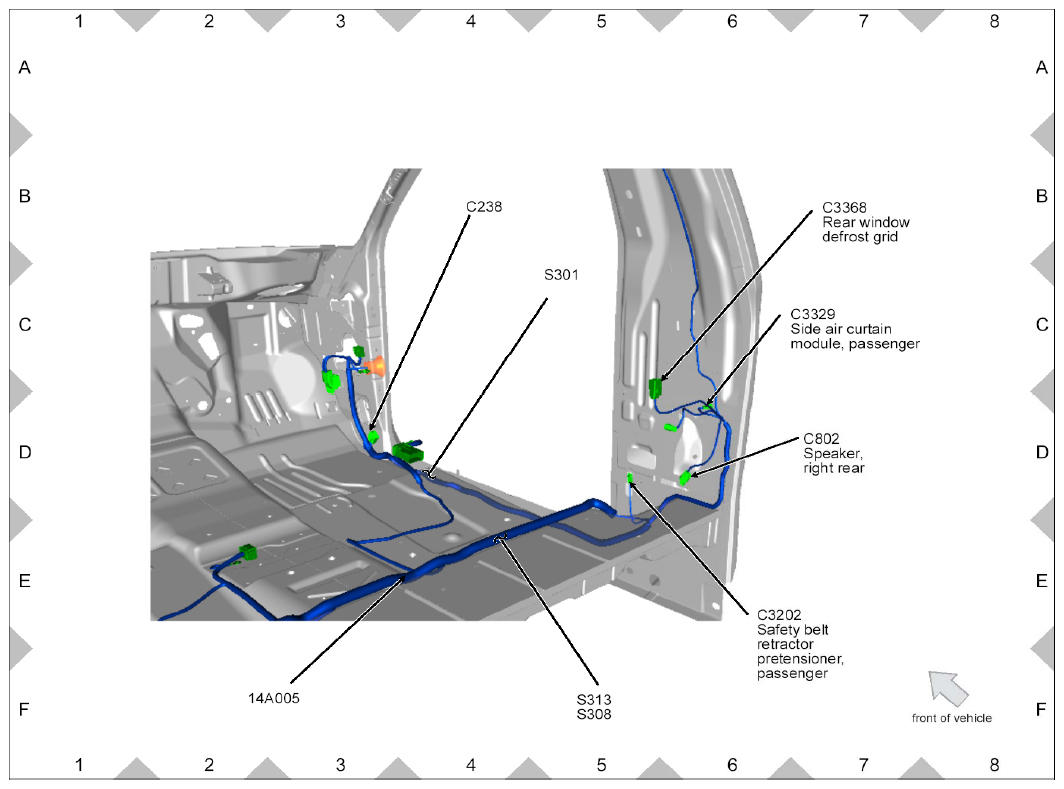

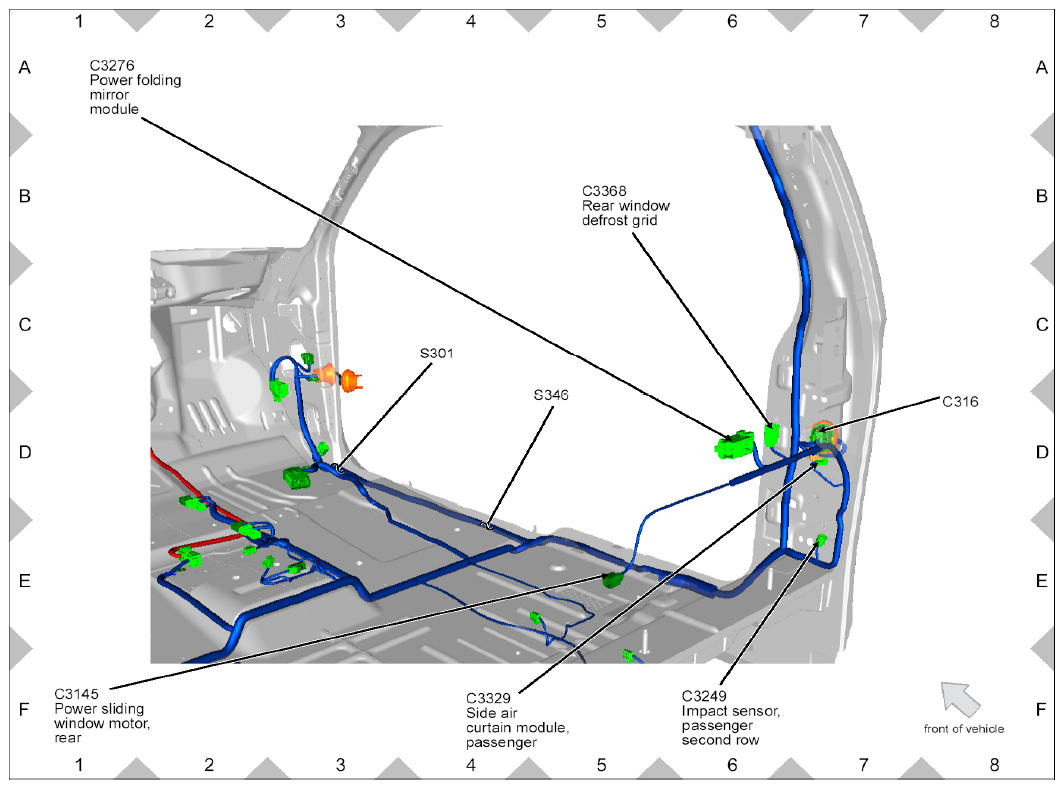

Fig 29: RH Front Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.

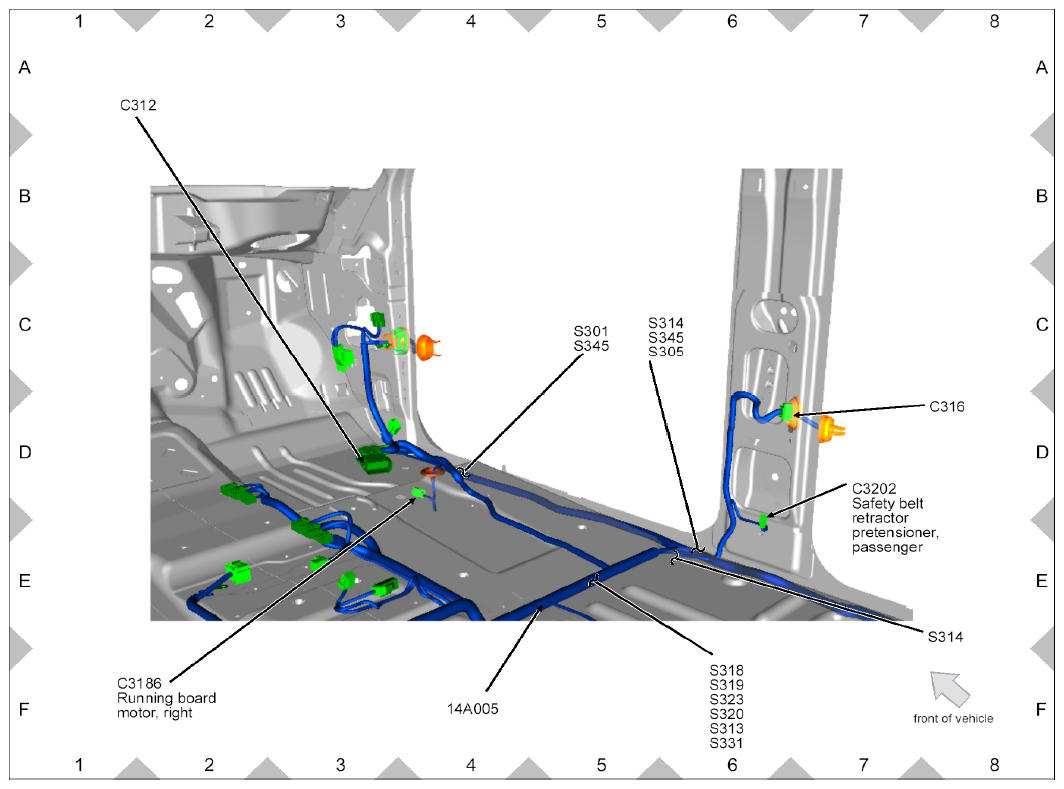

Fig 30: RH Front Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 31: RH Front Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.
Fig 32: LH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 33: RHRear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

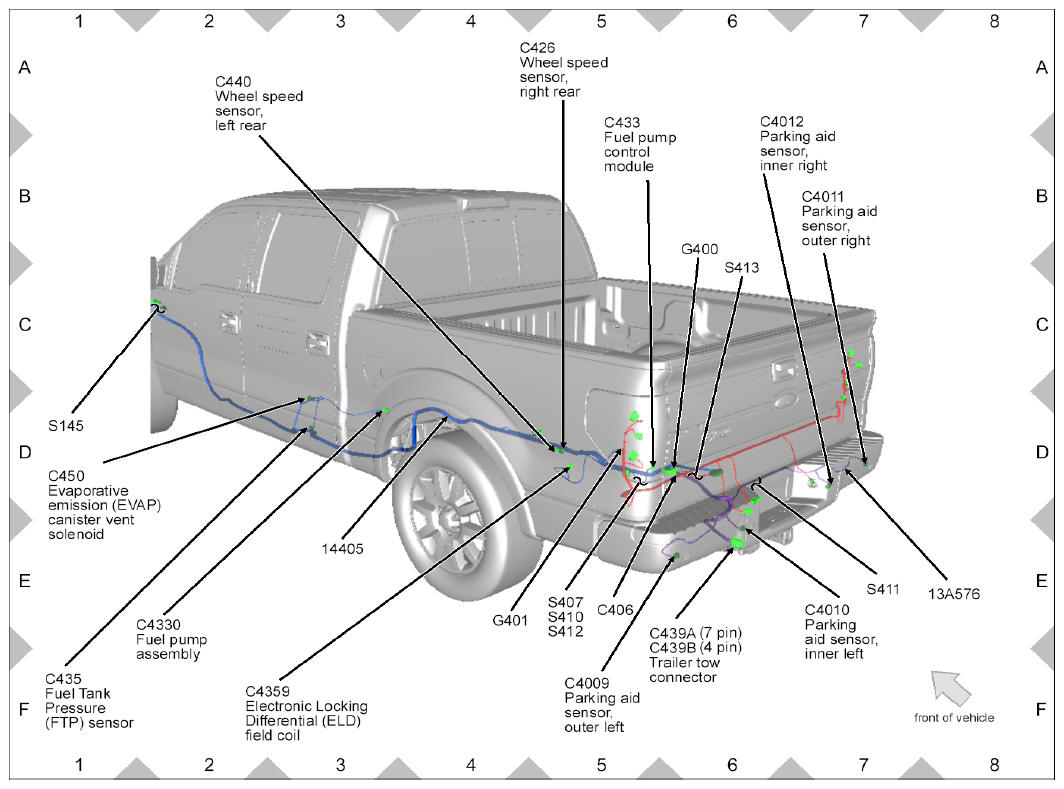

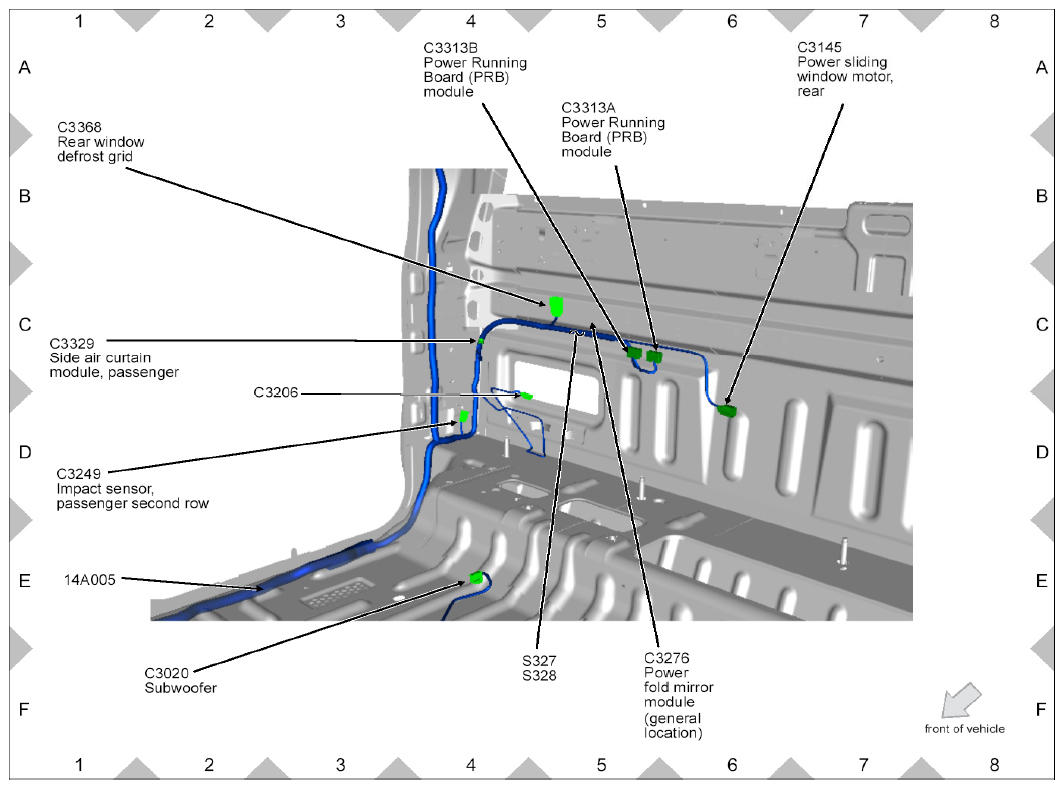

Fig 34: Rear Compartment Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 35: Rear Compartment Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

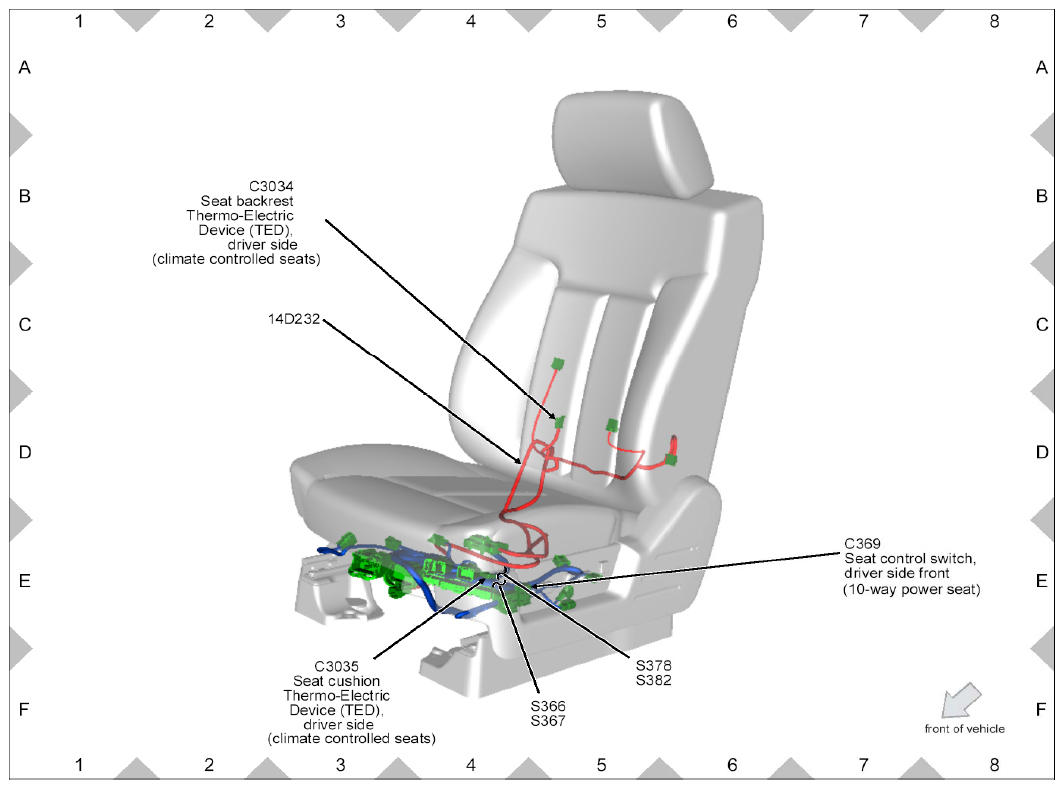

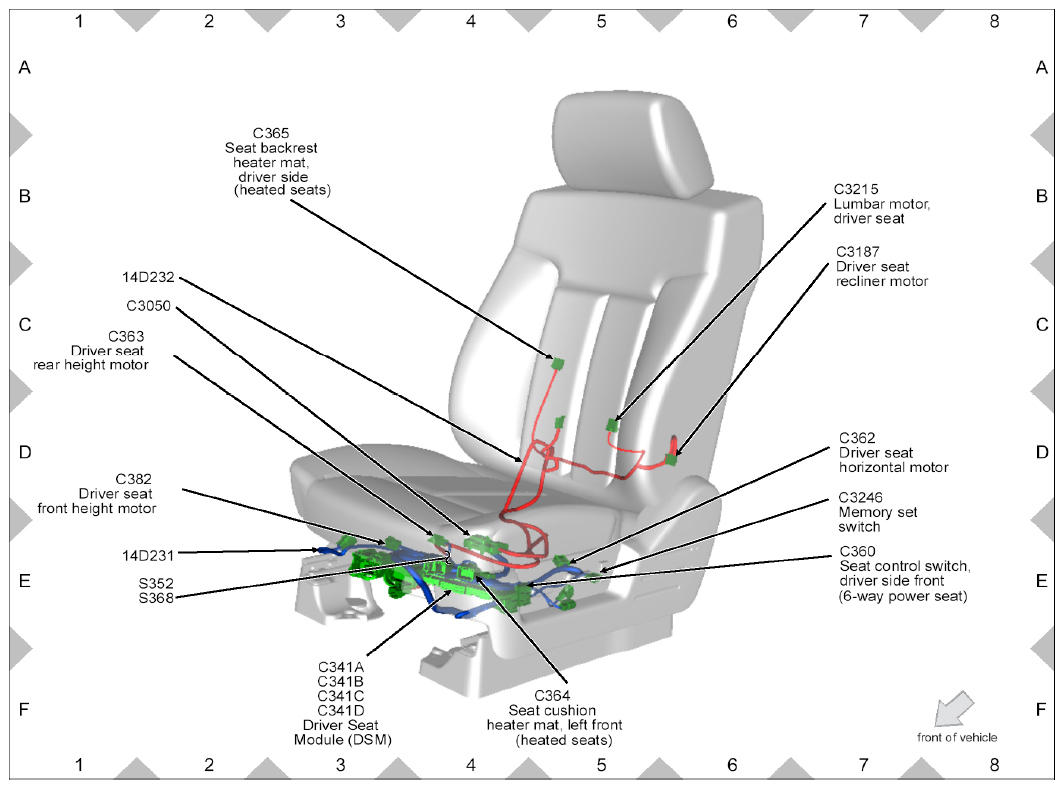

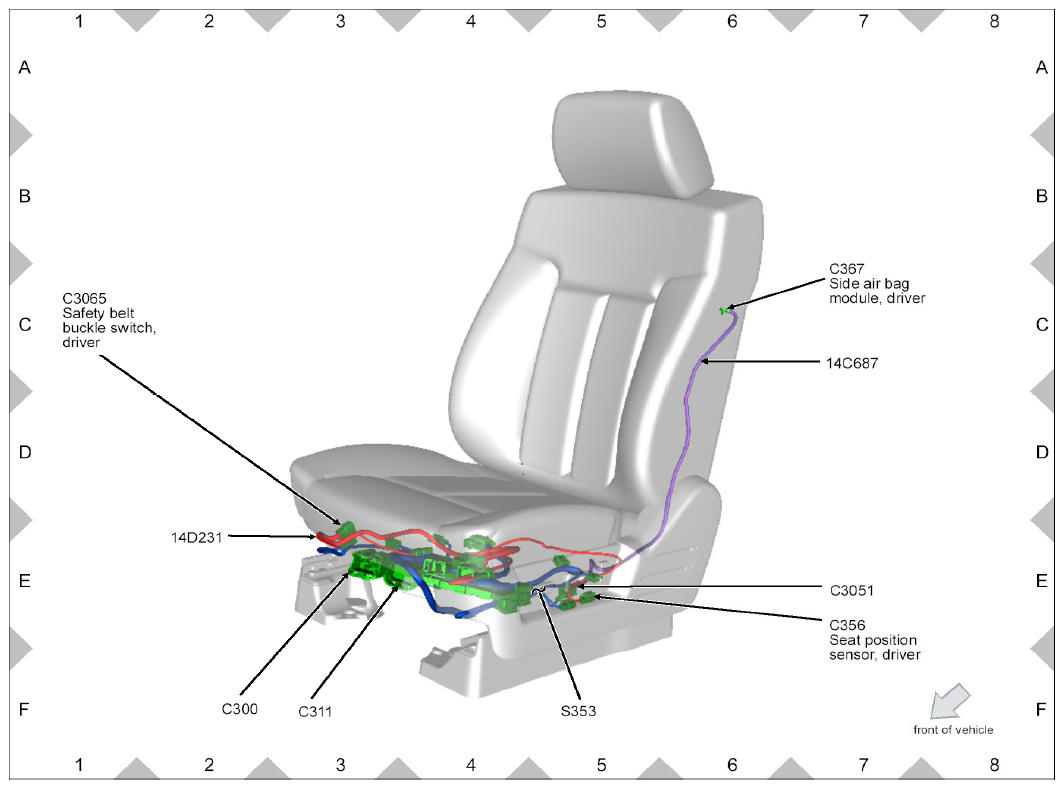

Fig 36: Driver Seat Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 37: Driver Seat Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 38: Driver Seat Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

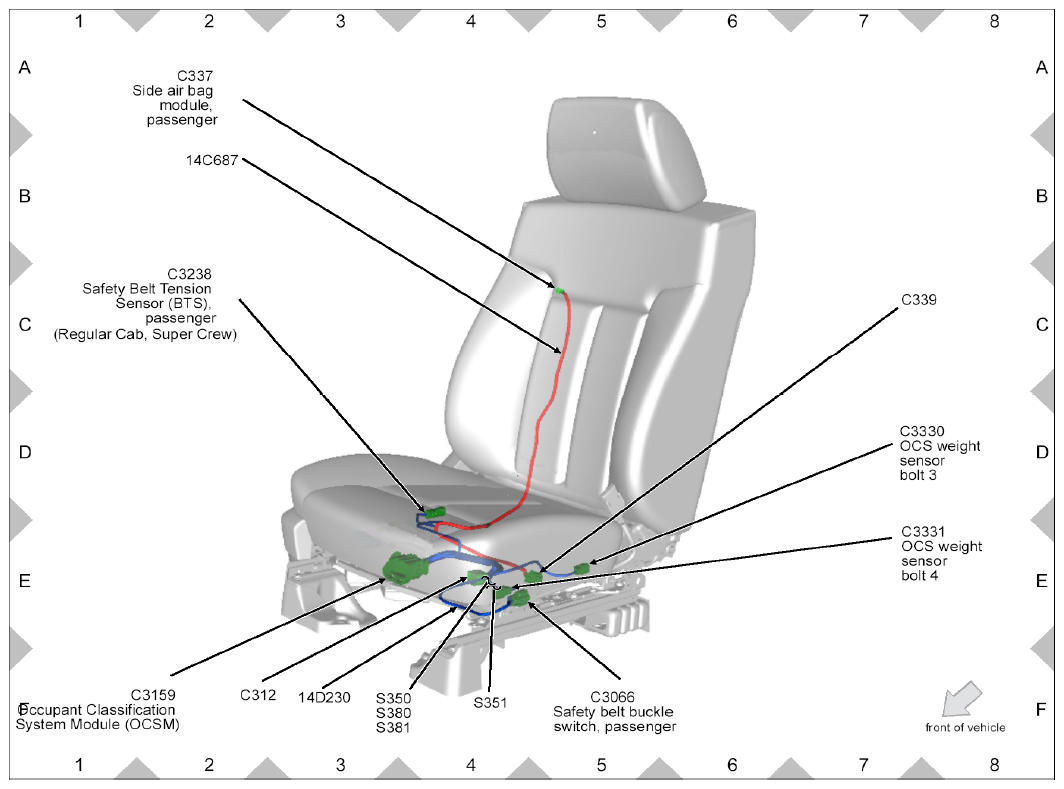

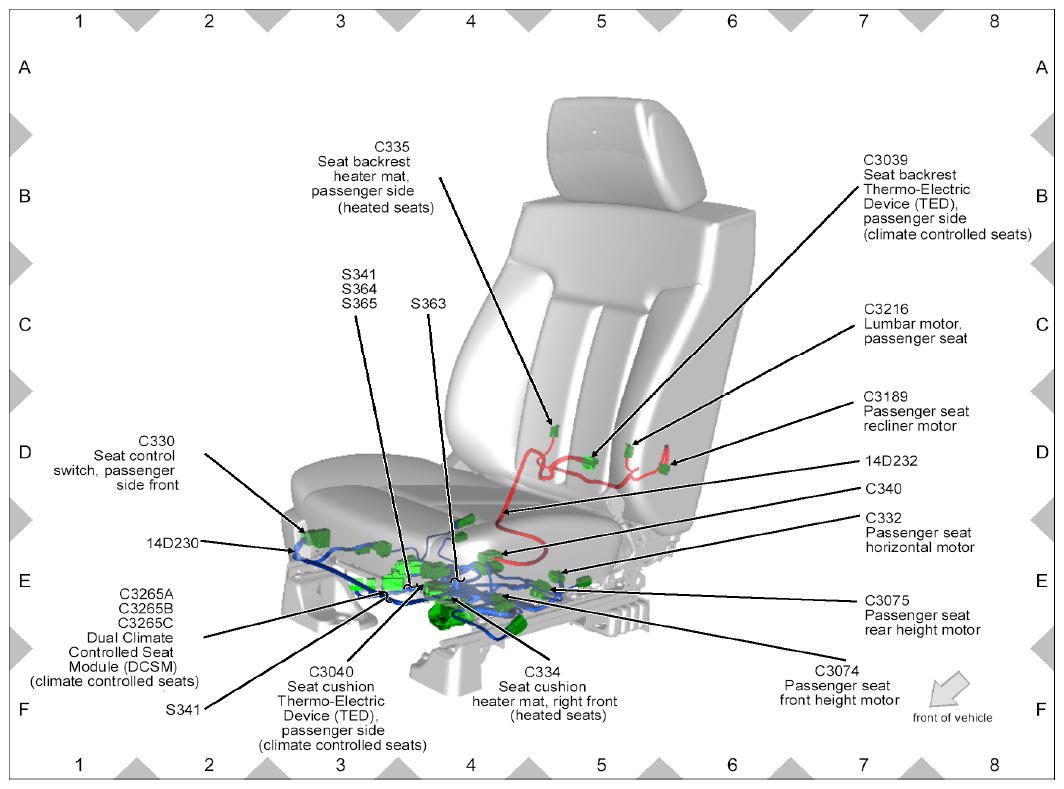

Fig 39: Passenger Seat Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 40: Passenger Seat Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

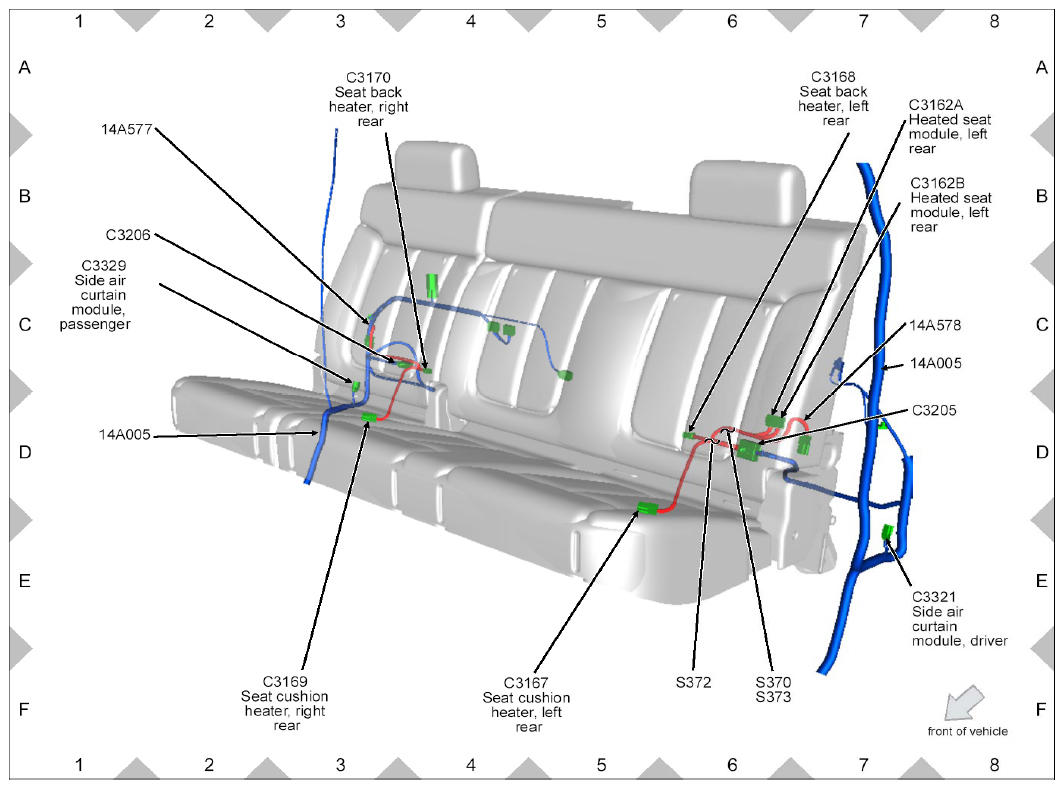

Fig 41: Rear Passenger Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

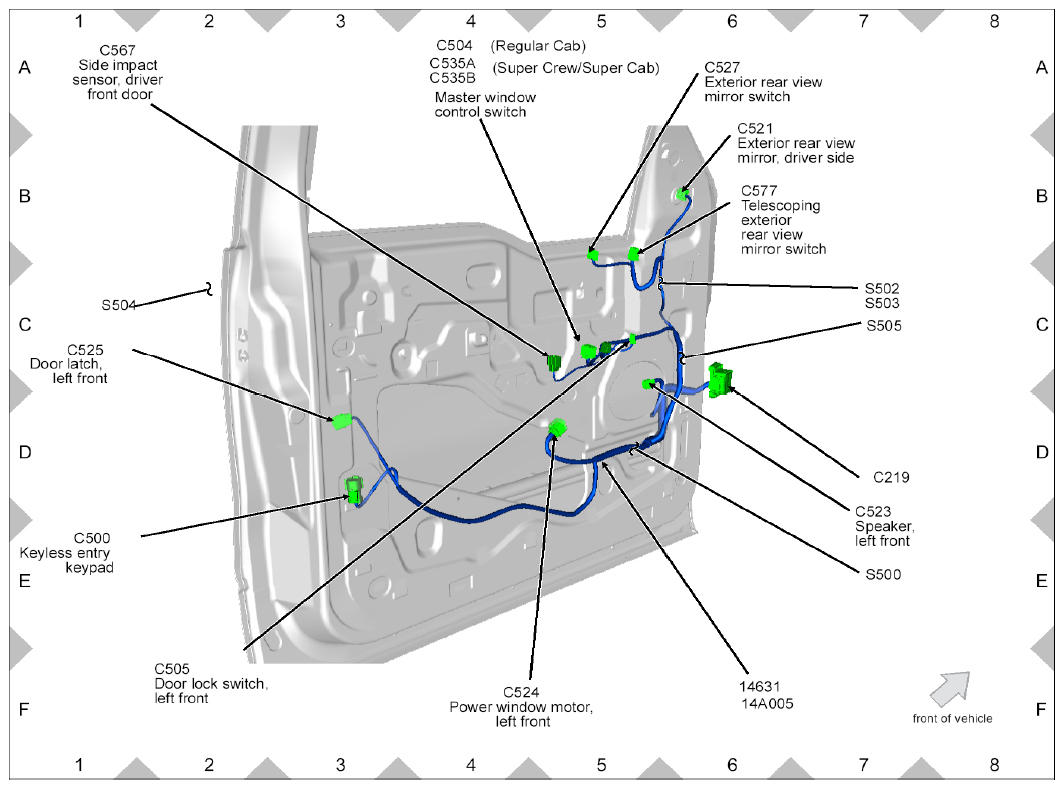

Fig 42: LH Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

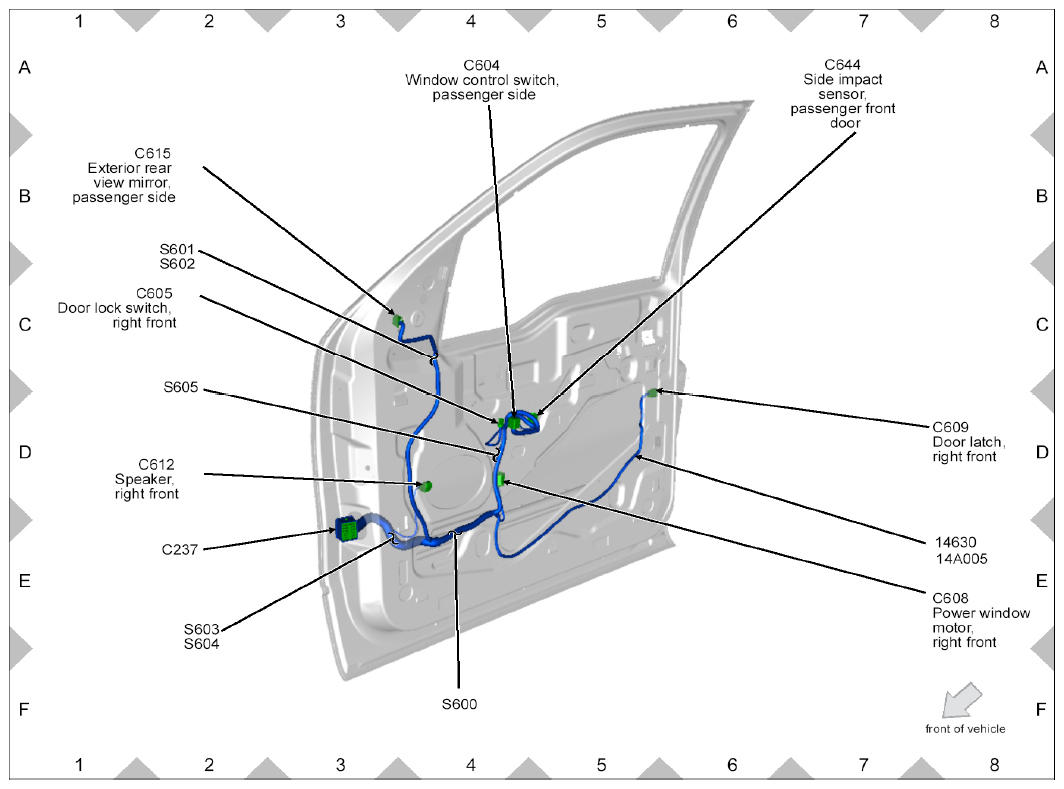

Fig 43: RH Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

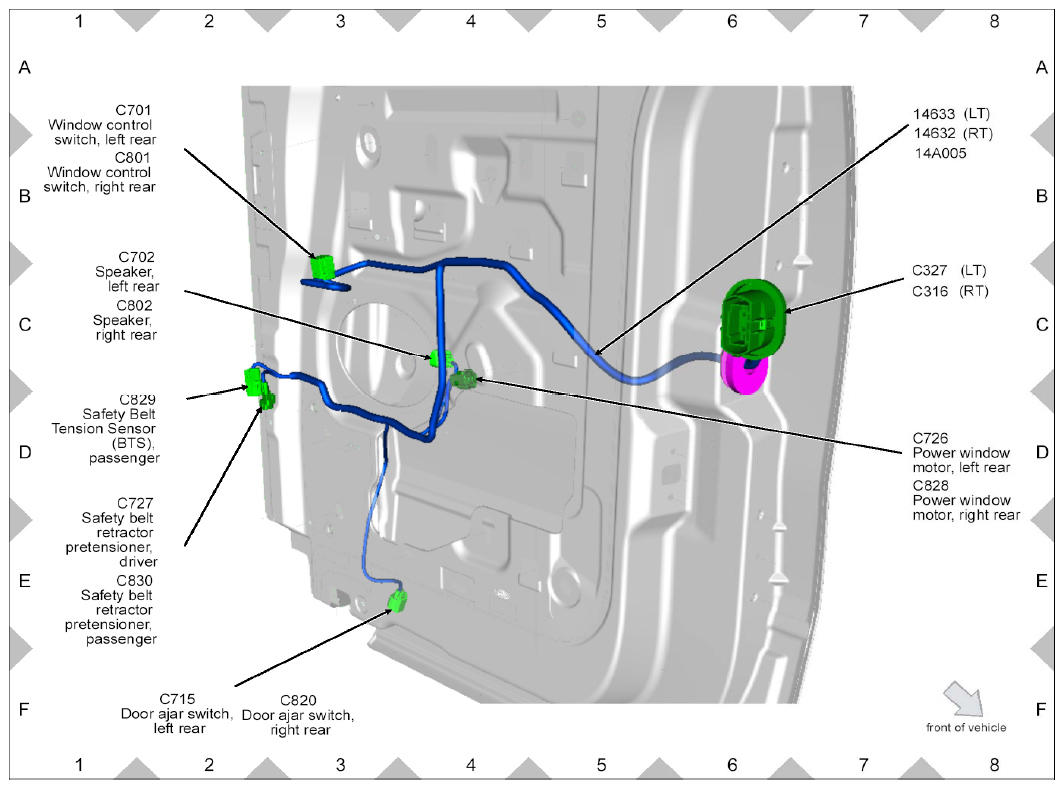

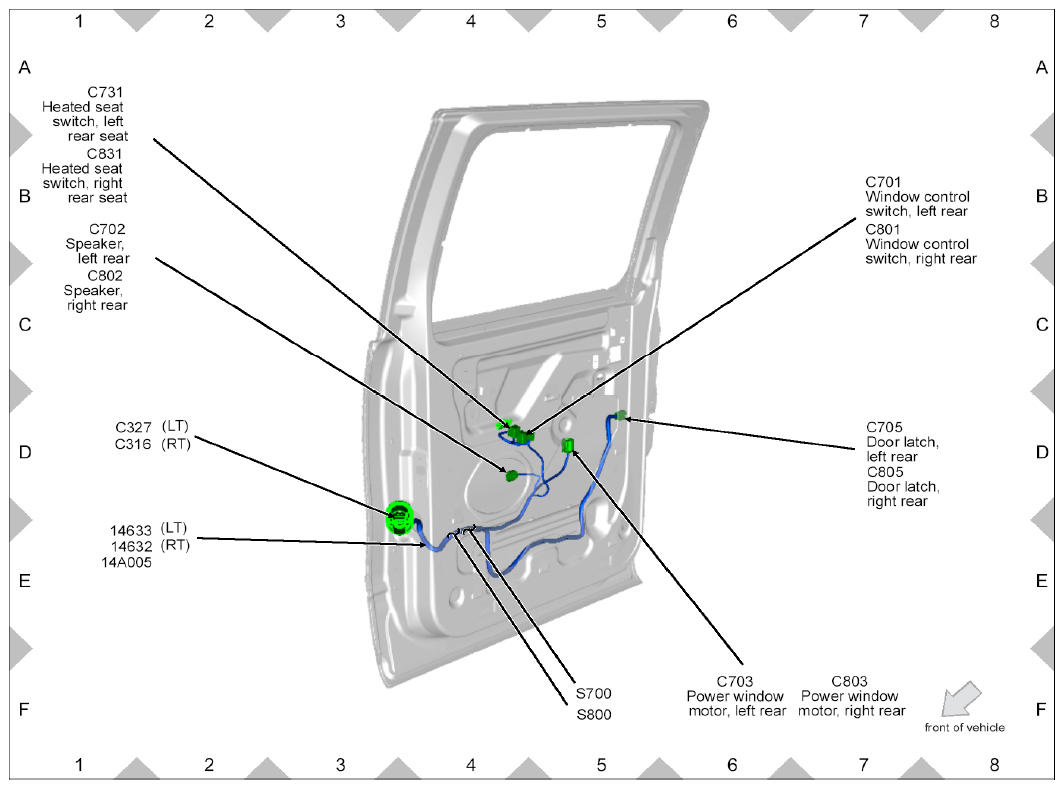

Fig 44: Rear Door Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 45: Rear Door Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

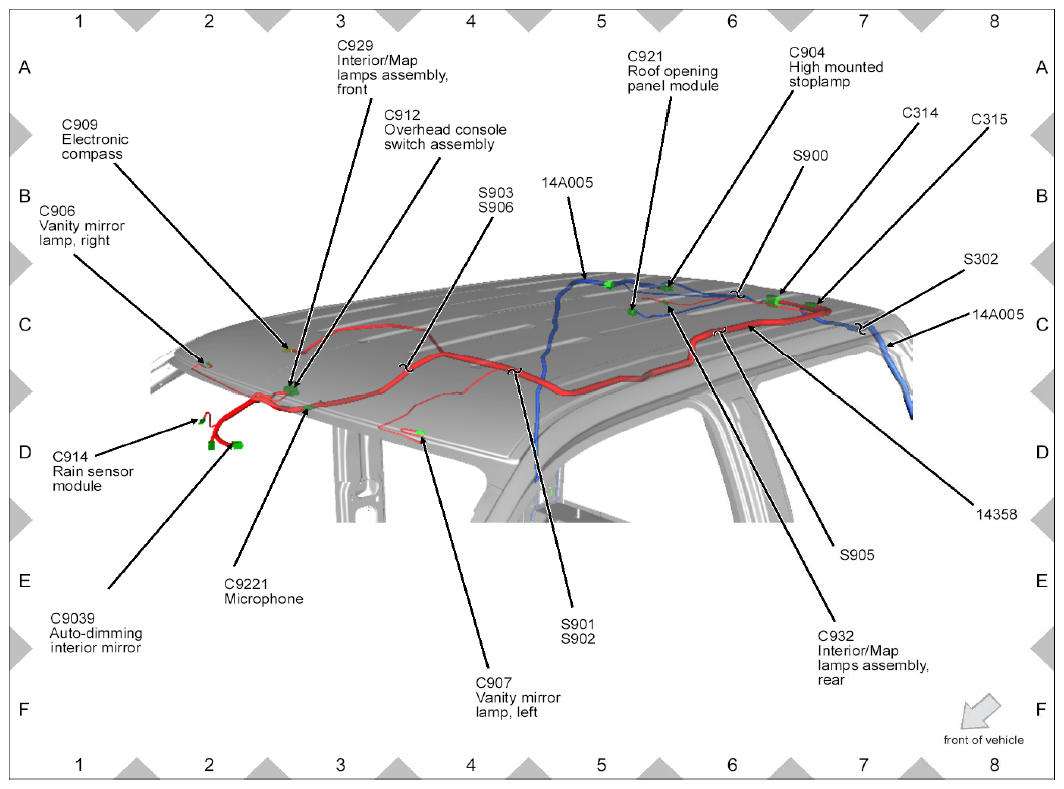

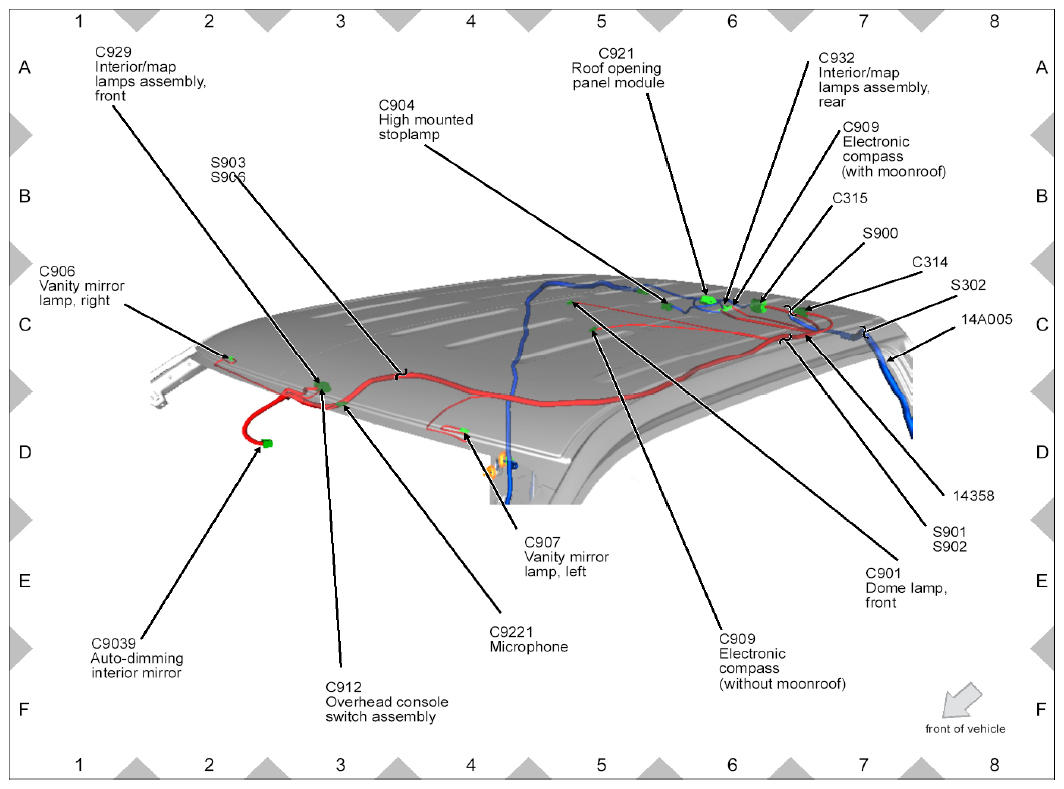

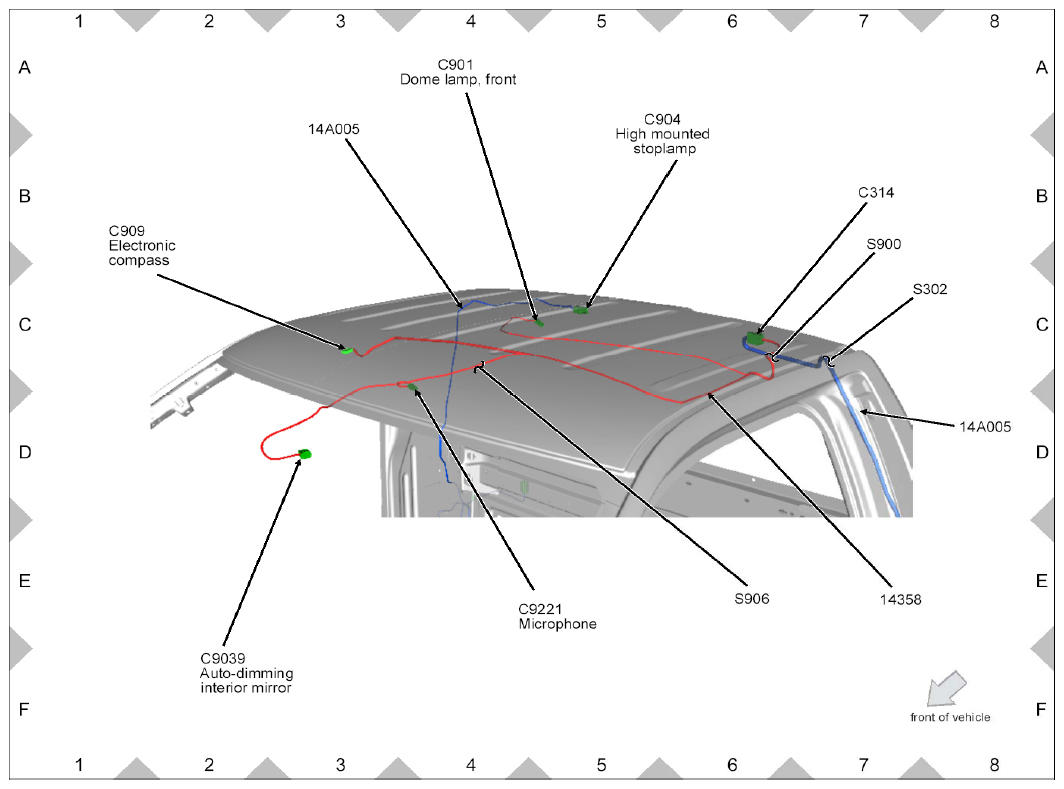

Fig 46: Roof Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 47: Roof Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 48: Roof Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

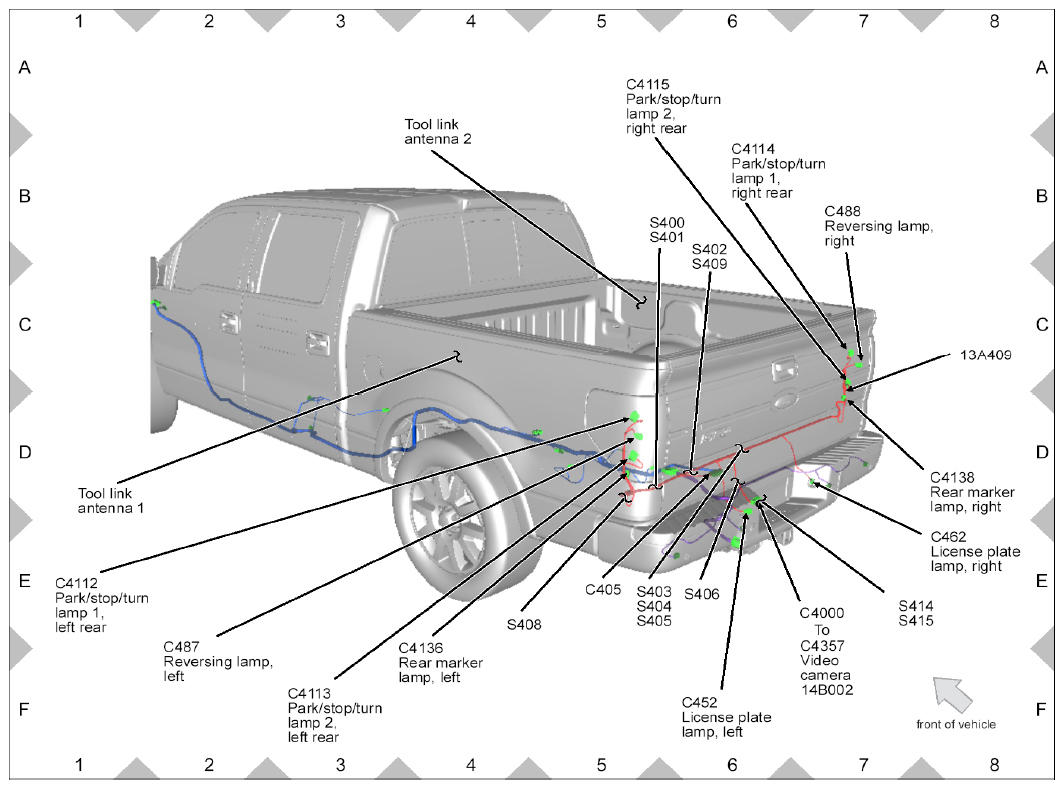

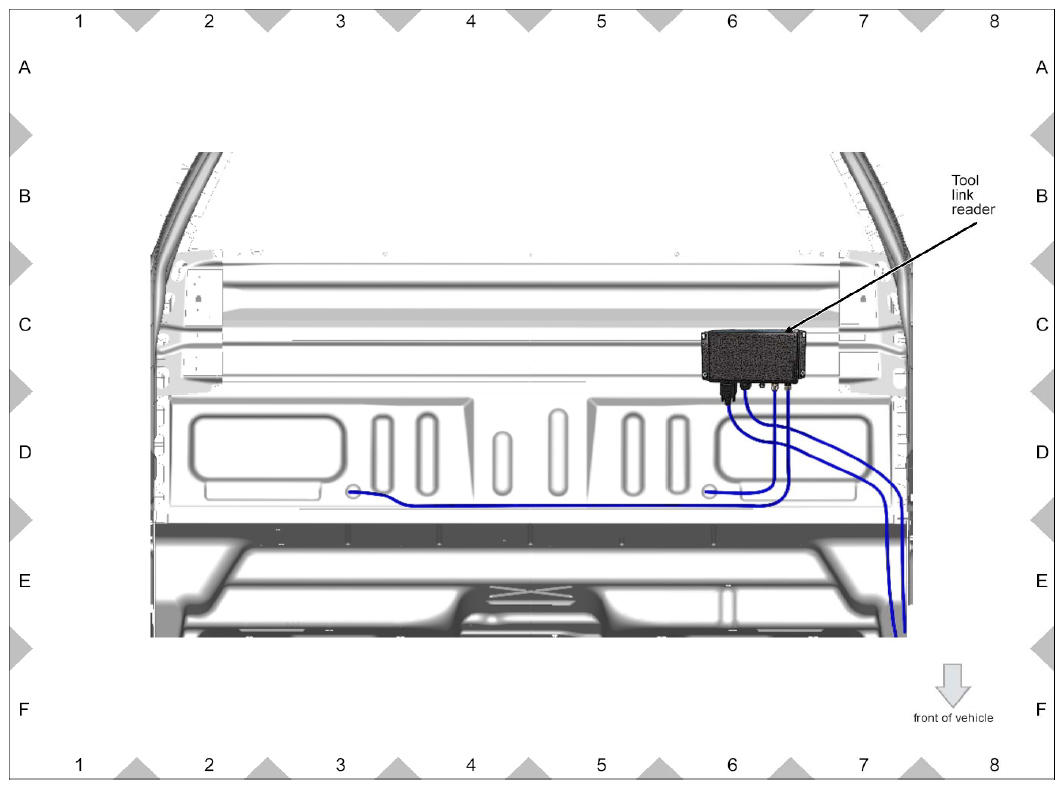

Fig 49: Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
