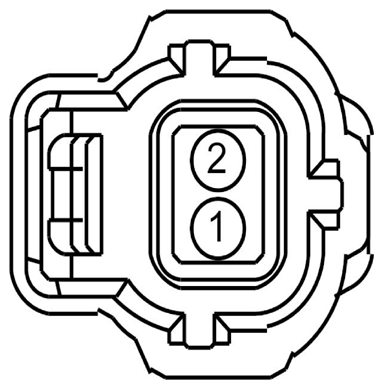

Windshield Washer Pump Motor Connector End View (C137)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CRW24 (BU-WH) | 14 | RELAY - FRONT WASHER | with front camera |
| 1 | CRW14 (BU-WH) | 14 | CTRL MOD. - FRONT WASHER | |
| 2 | GD120 (BK-GN) | 14 | GROUND - FENDER FRONT LEFT | |
| 2 | CRW14 (GY) | 14 | CTRL MOD. - FRONT WASHER | with front camera |
| Available Pigtail Kits | |
|---|---|

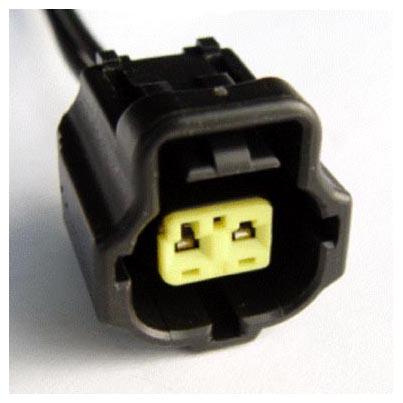

| Pigtail Kit Part Number WPT-357 | Service Part Number: 3U2Z-14S411-HVA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
