Wheel Speed Sensor, Right Rear Connector End View (C426)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

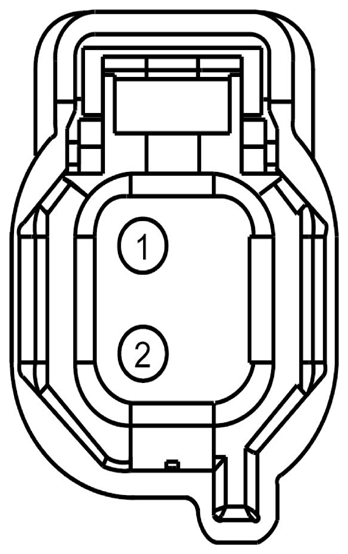

Fig 1: Wheel Speed Sensor, Right Rear Connector End View (C426)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA06 (WH-OG)	18	SENSOR - WHEEL SPEED RIGHT REAR
2	RCA20 (BN)	18	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR
