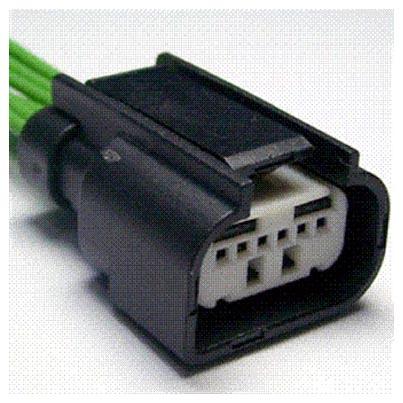

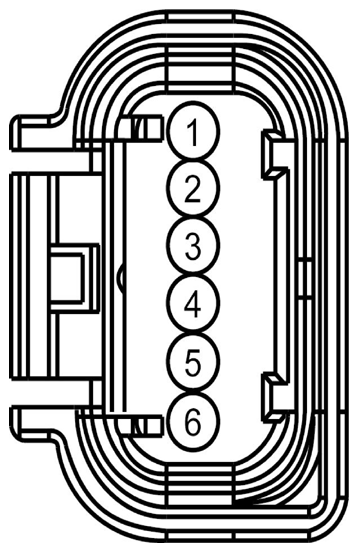

Video Camera Connector End View (C4357)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP34 (VT-BN) | 18 | FUSE - 34 OR CIRCUIT BREAKER | |
| 2 | VDN03 (GY-VT) | 18 | CTRL MOD. - LIN BUS # SPDJB 3 | |
| 3 | RMP19 (BN-VT) | 18 | CAMERA - PARKING AID REAR VIDEO | |
| 4 | VMP19 (WH-GN) | 18 | CAMERA - PARKING AID REAR VIDEO | |
| 5 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 6 | DMP19 (BK) | 18 | CAMERA - PARKING AID REAR VIDEO |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1280 | Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses
|
