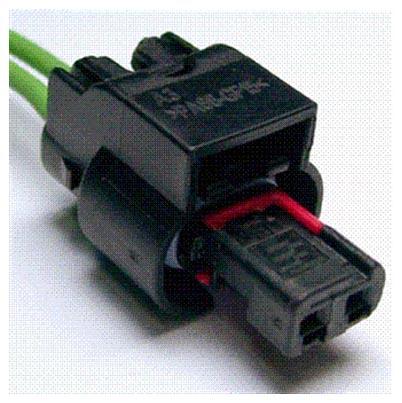

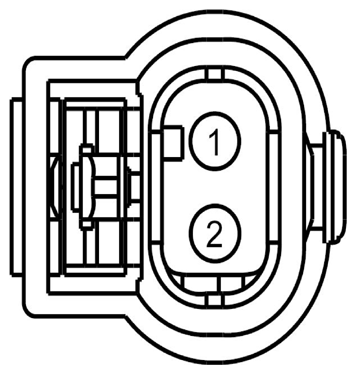

Variable Camshaft Timing 22 (VCT22) Solenoid Connector End View (C1611)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 76 OR CIRCUIT BREAKER | 3.5L |
| 1 | CBK02 (GN) | 20 | FUSE - 76 OR CIRCUIT BREAKER | 3.7L |
| 2 | CE443 (BN-VT) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING SOLENOID (VCT22) | 3.7L |
| 2 | CE443 (BN-VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING SOLENOID (VCT22) | 3.5L |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1251 | Service Part Number: CU2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses
|
