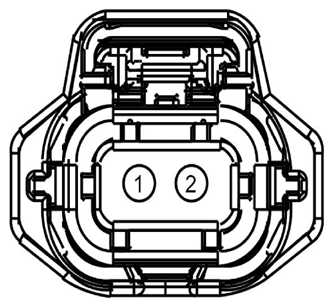

Variable Camshaft Timing 2 (VCT2) Solenoid Connector End View (C1370)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 76 OR CIRCUIT BREAKER | 6.2L |
| 2 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 2 (VCT2) SOLENOID | 6.2L |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1214 | Service Part Number: BU2Z-14S411-AYA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
