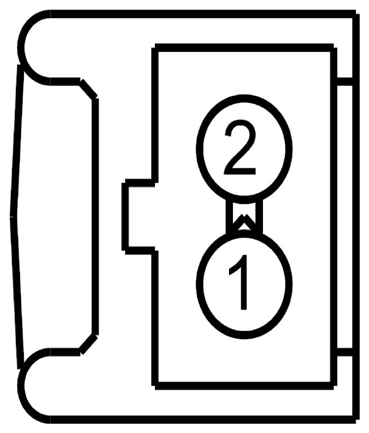

Turbocharger Bypass Valve (TCBY) Connector End View (C1584)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE435 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # TURBO CONTROL VALVE | |
| 2 | CBK03 (GY) | 20 | FUSE - 77 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|

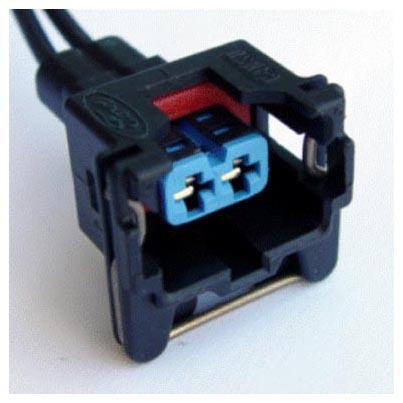

| Pigtail Kit Part Number WPT-552 | Service Part Number: 3U2Z-14S411-GLA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|

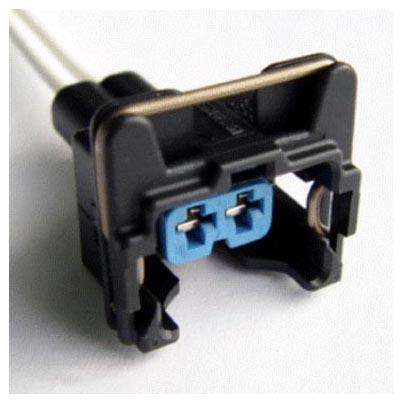

| Pigtail Kit Part Number WPT-531 | Service Part Number: 3U2Z-14S411-LEA Gauge: 18 Pin material: Gold Cavities: 2 Vehicle Uses
|

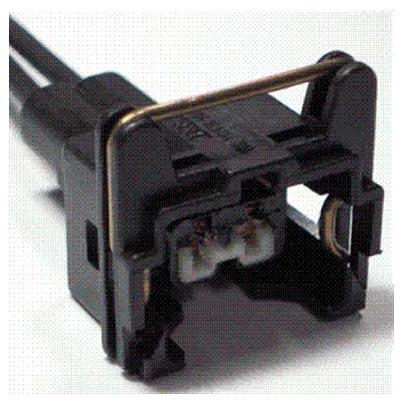

| Pigtail Kit Part Number WPT-1054 | Service Part Number: 3U2Z-14S411-GLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

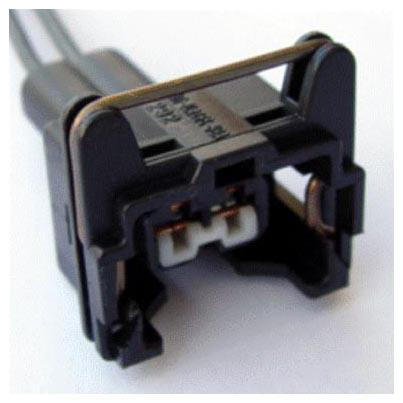

| Pigtail Kit Part Number WPT-551 | Service Part Number: 3U2Z-14S411-LPA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses
|
