Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor Connector End View (C1588)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

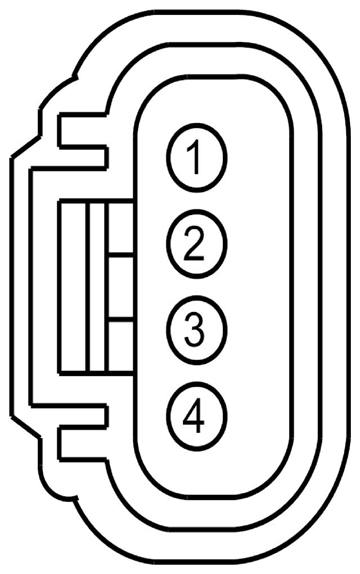

Fig 1: Turbocharger Boost Pressure/Charge Air Cooler Temperature Sensor Connector End View (C1588)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE150 (GN-BU)	20	CTRL MOD. - POWERTRAIN # BOOST PRESSURE SENSOR	3.5L
2	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREV)	3.5L
3	RE332 (YE-BU)	20	CTRL MOD. - POWERTRAIN # INTAKE AIR TEMP. SENSOR	3.5L
4	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)	3.5L

Available Pigtail Kits

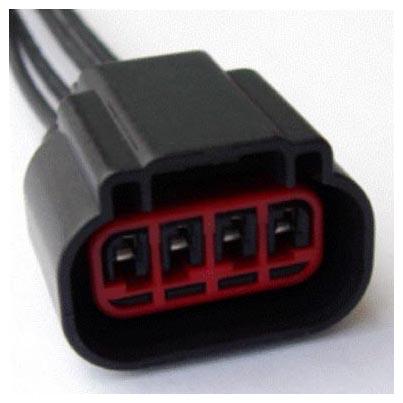

Pigtail Kit Part Number WPT-508	Service Part Number: 3U2Z-14S411-SPA Gauge: 16 Pin material: Tin Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Intake Manifold Valve Coil - Ignition Lamp - Front Cornering/Turn Lamp - Front Park Lamp - Front Turn Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Switch - Sliding Door Contact

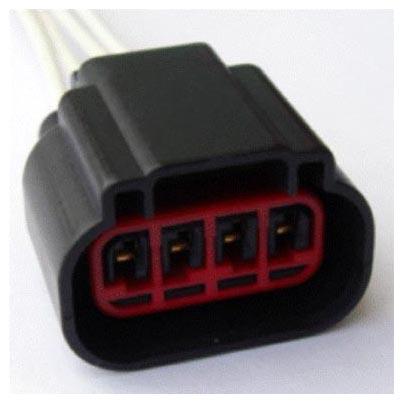

Pigtail Kit Part Number WPT-1339	Service Part Number: 3U2Z-14S411-SPC Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Intake Manifold Valve Coil - Ignition Lamp - Front Cornering/Turn Lamp - Park/Turn Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature Switch - Sliding Door Contact

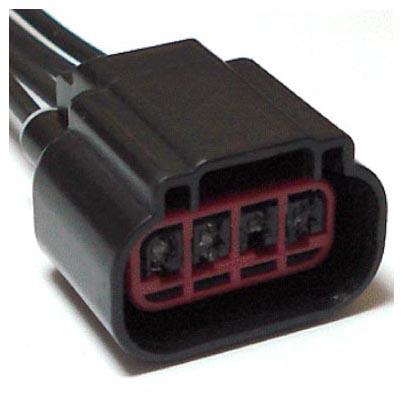

Pigtail Kit Part Number WPT-509	Service Part Number: 3U2Z-14S411-SSA Gauge: 18 Pin material: Gold Cavities: 4 Vehicle Uses Control - Engine Air Shutoff Sensor - Intake Manifold Runner Control Sensor - Manifold Pressure/Intake Temperature Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature
Pigtail Kit Part Number WPT-1009	Service Part Number: 3U2Z-14S411-SPB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Intake Manifold Valve Coil - Ignition Lamp - Front Cornering/Turn Lamp - Park/Turn Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Turbo Intake Pressure/Temperature Switch - Sliding Door Contact
