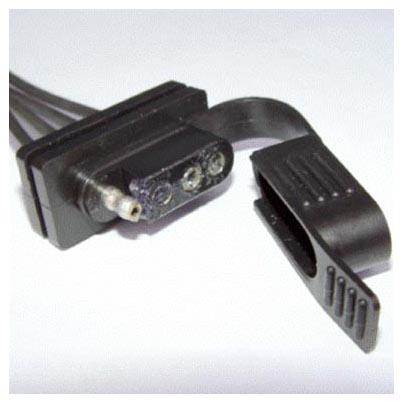

Trailer Tow Connector Connector End View (C439B)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CAT09 (GN) | 14 | RELAY - TRAILER TOW # TURN SIGNAL RIGHT | |
| 2 | CAT06 (YE) | 14 | RELAY - TRAILER TOW # TURN SIGNAL LEFT | |
| 3 | CAT17 (BN) | 14 | RELAY - TRAILER TOW PARK LAMPS | |
| 4 | RAT08 (WH) | 14 | TRAILER TOW # RETURN |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-840 | Service Part Number: 5U2Z-14S411-JA Gauge: 12 Pin material: Tin Cavities: 4 Vehicle Uses
|
