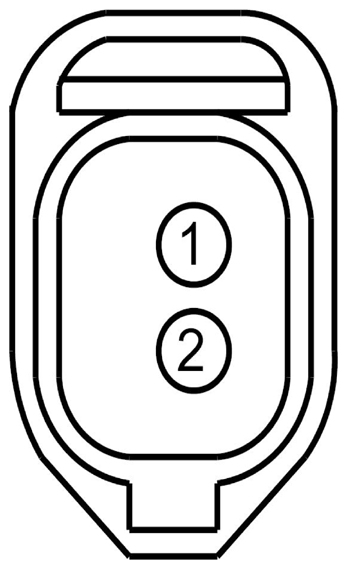

Side Lamp, Right Front Connector End View (C1126)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP30 (YE-BU) | 20 | FUSE - 30 OR CIRCUIT BREAKER | |
| 2 | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT |
| Available Pigtail Kits | |
|---|---|

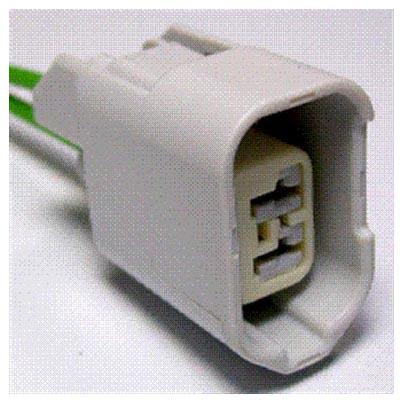

| Pigtail Kit Part Number WPT-1204 | Service Part Number: 1U2Z-14S411-BEB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
