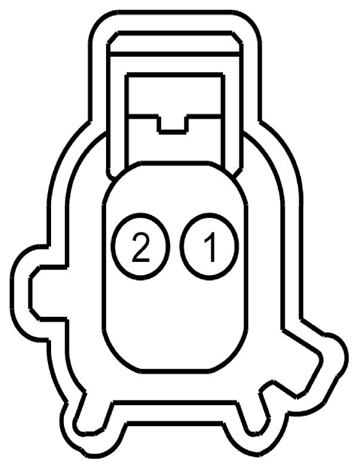

Side Impact Sensor, Driver Front Door Connector End View (C567)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VR217 (GY-YE) | 20 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 2 | RR131 (VT-GY) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE |
| Available Pigtail Kits | |
|---|---|

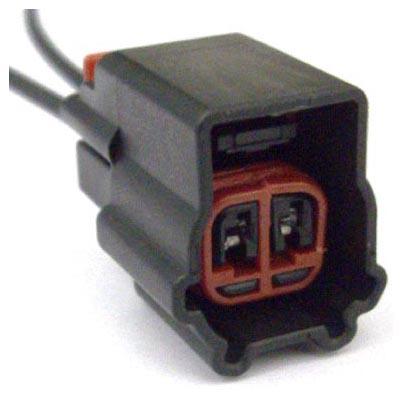

| Pigtail Kit Part Number WPT-837 | Service Part Number: 4U2Z-14S411-RA Gauge: 16 Pin material: Gold Cavities: 2 Vehicle Uses
|

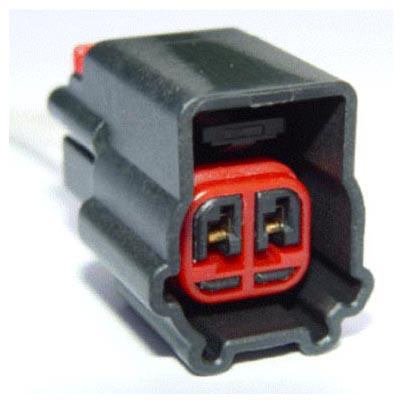

| Pigtail Kit Part Number WPT-948 | Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
