Side Airbag, Driver Connector End View (C367)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR105 (VT-GY) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE | |
| 2 | RR105 (YE-OG) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE |

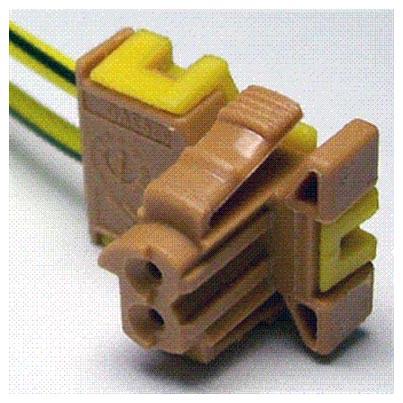

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1222 | Service Part Number: BU2Z-14S411-BEA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
