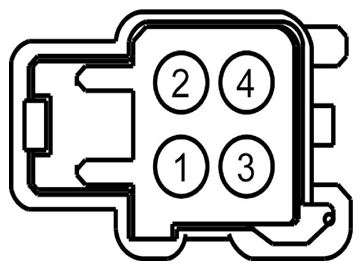

Seat Cushion Heater, Right Rear Connector End View (C3169)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CHS43 (GY-BU) | 18 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT CUSHION HEATER | |
| 2 | VHS45 (GY-BN) | 22 | SENSOR - CUSHION TEMP REAR RIGHT | |
| 3 | RHS41 (GN-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP | |
| 4 | CHS44 (GN-VT) | 18 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT BACK HEATER |

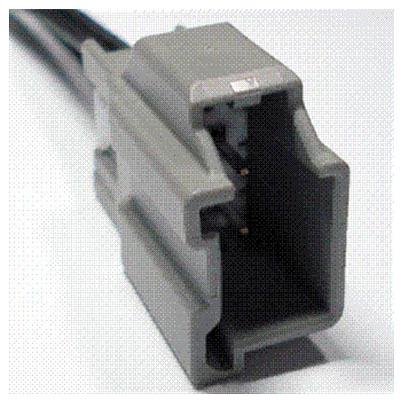

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1076 | Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
