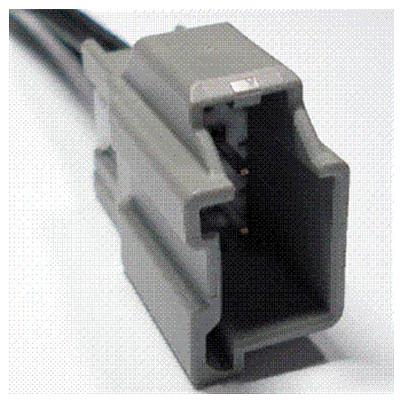

Seat Cushion Heater Mat, Right Front Connector End View (C334)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

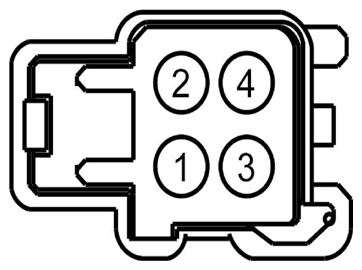

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CHS07 (GY-BU) | 16 | CTRL MOD. - HEATED SEAT # PASSENGER CUSHION HEATER | |
| 2 | VHS27 (WH-OG) | 22 | SENSOR - CUSHION TEMP. PASSENGER | |
| 3 | RHS05 (YE-VT) | 22 | CTRL MOD. - HEATED SEAT # PASSENGER SENSOR CUSHION TEMP. | |
| 4 | CHS01 (GY-VT) | 16 | CTRL MOD. - HEATED SEAT # PASSENGER BACK HEATER |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1076 | Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
