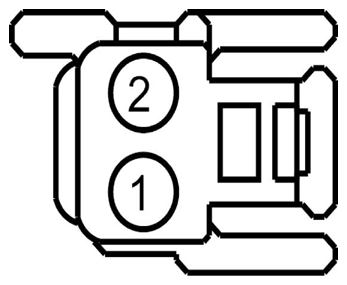

Seat Backrest Heater Mat, Driver Side Connector End View (C365)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CHS01 (GY-VT) | 16 | CTRL MOD. - HEATED SEAT # DRIVER BACK HEATER | |
| 2 | GD904 (BK-BU) | 16 | GROUND - PILLAR A LEFT # 2ND STUD |

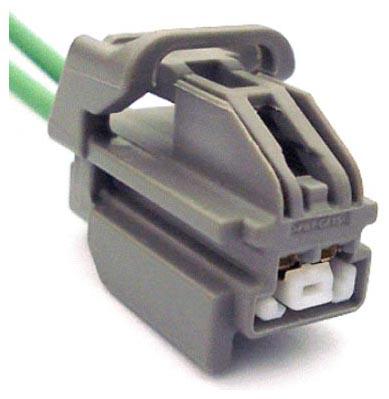

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-965 | Service Part Number: 3U2Z-14S411-AEB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses
|
