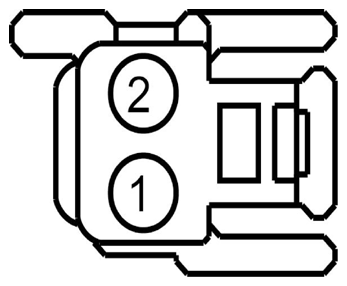

Seat Back Heater, Left Rear Connector End View (C3168)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD134 (BK-VT) | 18 | GROUND - PILLAR A LEFT # 2ND STUD | |
| 2 | CHS40 (GY-VT) | 18 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT BACK HEATER |

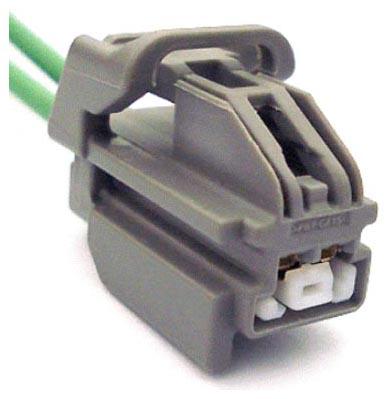

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-965 | Service Part Number: 3U2Z-14S411-AEB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses
|
