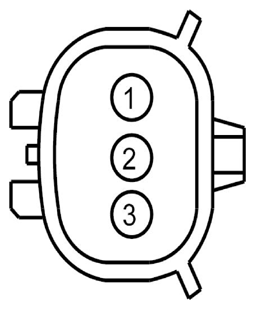

Safety Belt Tension Sensor (BTS), Passenger Connector End View (C3238)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 2 | GD901 (BK) | 20 | GROUND - TUNNEL | |
| 3 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD |

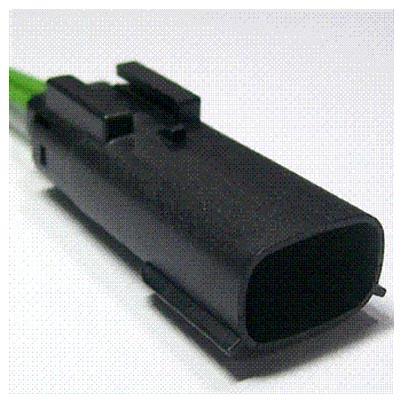

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1180 | Service Part Number: AU2Z-14S411-ASA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
