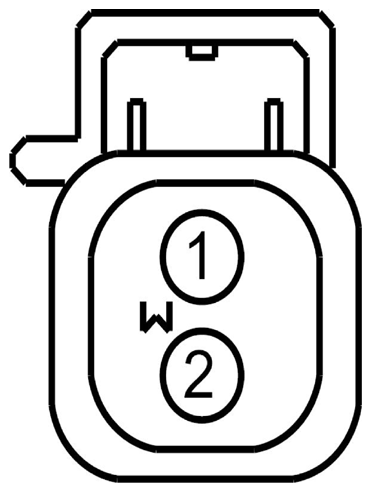

Safety Belt Retractor PRETENSIONER, Passenger Connector End View (C830)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR147 (GN-OG) | 18 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD | |
| 2 | RR147 (YE-VT) | 18 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD |

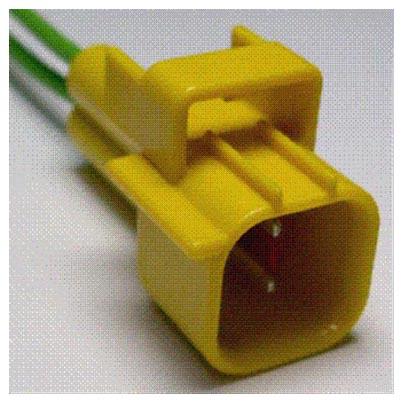

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1244 | Service Part Number: AU2Z-14S411-BMA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
