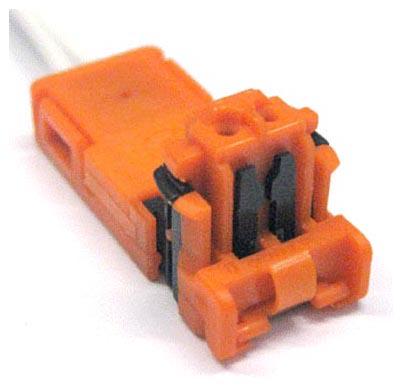

Safety Belt Retractor PRETENSIONER, Driver Connector End View (C3201)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR146 (GY-VT) | 20 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING DRIVER | |
| 2 | RR146 (BU-BN) | 20 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING DRIVER |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-914 | Service Part Number: 8U2Z-14S411-YA Gauge: 20 Pin material: Gold Cavities: 2 Vehicle Uses
|
