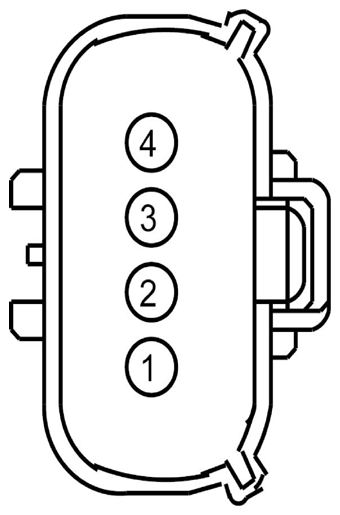

Safety Belt Buckle Switch, Driver Connector End View (C3065)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR120 (BU-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE | |
| 2 | RR120 (BN-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE | |
| 3 | CR201 (GN-BU) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 4 | RR137 (BU-GY) | 20 | CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER |

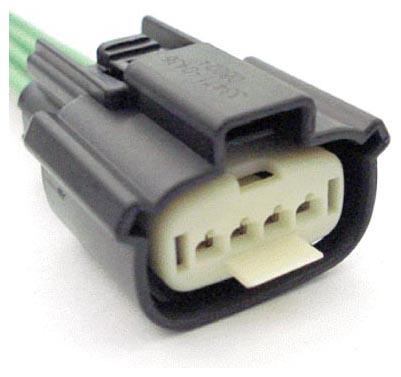

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-940 | Service Part Number: 9U2Z-14S411-MA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
