Reversing Lamp, Right Connector End View (C488)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

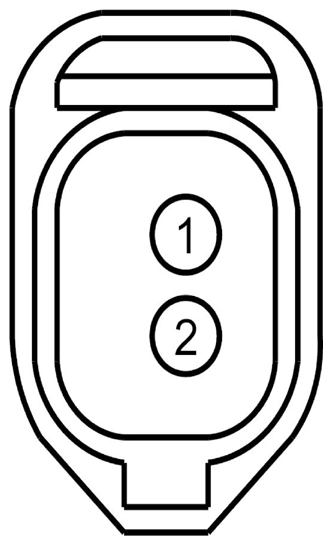

Fig 1: Reversing Lamp, Right Connector End View (C488)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS28 (BU-WH)	16	RELAY - REVERSE LAMPS
2	GD117 (BK)	18	GROUND - FENDER FRONT LEFT

Available Pigtail Kits

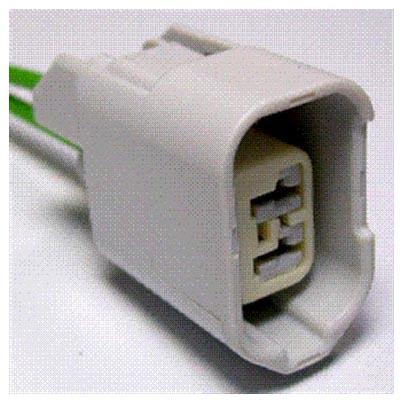

Pigtail Kit Part Number WPT-1204	Service Part Number: 1U2Z-14S411-BEB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Fog/Driving Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/Marker Lamp - License Lamp - Reverse Lamp - Running Board Lamp - Side Marker Lamp - Stop/Park Lamp - Under Hood
