Power Window Motor, Left Rear Connector End View (C726)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

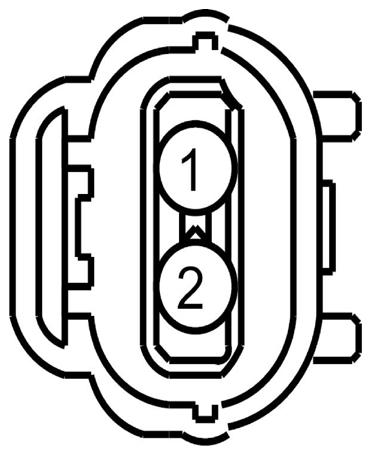

Fig 1: Power Window Motor, Left Rear Connector End View (C726)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW21 (BN)	14	SWITCH - POWER WINDOW REAR LEFT # DOWN
2	CPW22 (GN-VT)	14	SWITCH - POWER WINDOW REAR LEFT # UP

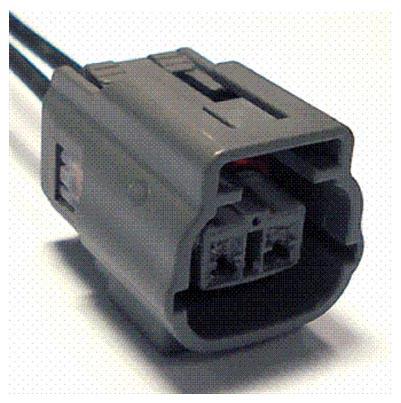

Available Pigtail Kits
Pigtail Kit Part Number WPT-1021	Service Part Number: 3U2Z-14S411-DLAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses A/C Compressor Clutch Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Sensor - Brake Fluid Level Sensor - Output Shaft Speed
