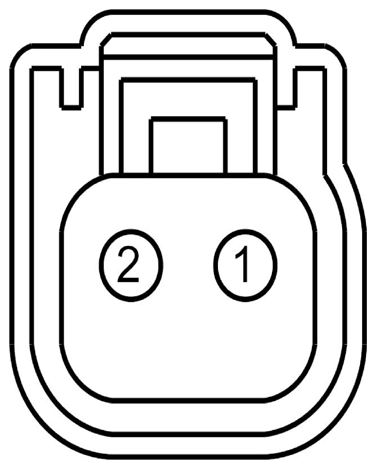

Power Sliding Window Motor, Rear Connector End View (C3145)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPW59 (VT-BN) | 12 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP | |
| 2 | CPW58 (YE-OG) | 12 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN |

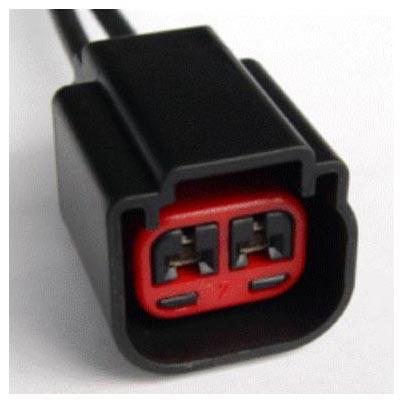

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-698 | Service Part Number: 3U2Z-14S411-CUAA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses
|
