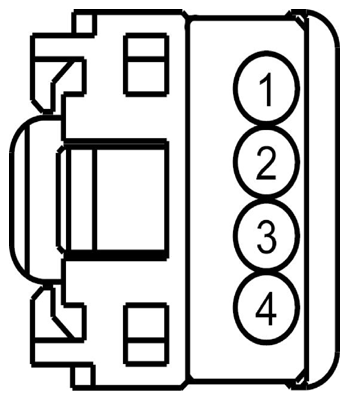

Passive Anti-Theft Transceiver Connector End View (C252)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE436 (VT-OG) | 22 | CTRL MOD. -WAKE UP PCM | |
| 2 | GD133 (BK) | 20 | GROUND - PILLAR A LEFT | |
| 3 | VRT24 (YE-OG) | 22 | TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL | |
| 4 | VRT23 (VT-GY) | 22 | TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) |

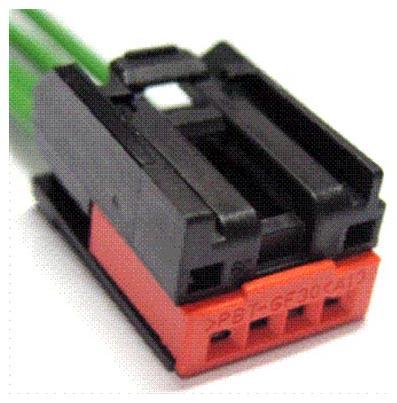

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1139 | Service Part Number: 3U2Z-14S411-PRC Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
