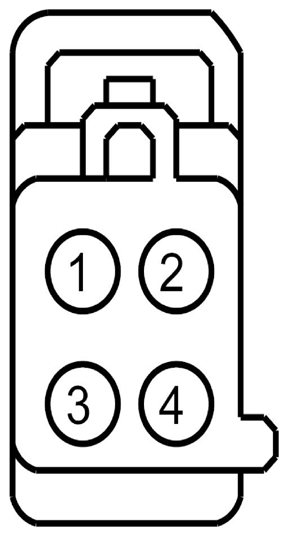

Passenger Seat Recliner Motor Connector End View (C3189)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS07 (GY-BN) | 14 | CTRL MOD. - PASSENGER SEAT RECLINE FORWARD | |
| 2 | VPS12 (GY-OG) | 22 | SENSOR - DRIVER SEAT RECLINE | |
| 3 | CPS08 (VT-OG) | 14 | CTRL MOD. - PASSENGER SEAT RECLINE REARWARD | |
| 4 | RPS13 (GN-OG) | 22 | CTRL MOD. - DRIVER SEAT SENSORS POSITION |
| Available Pigtail Kits | |
|---|---|

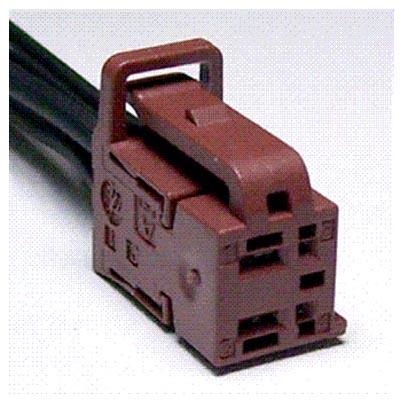

| Pigtail Kit Part Number WPT-1191 | Service Part Number: BU2Z-14S411-AEA Gauge: 14 18 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
