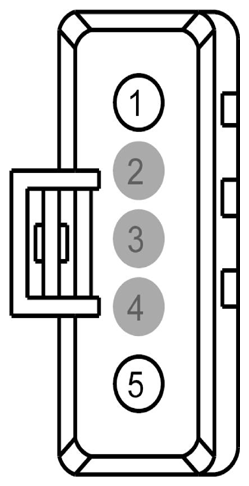

Passenger Seat Rear Height Motor Connector End View (C3075)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS37 (WH-BU) | 14 | SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CPS36 (YE-GY) | 14 | SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN |

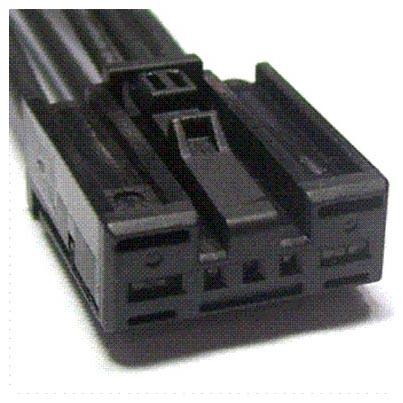

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1071 | Service Part Number: AU2Z-14S411-PA Gauge: 14 18 Pin material: Tin (greased) Cavities: 5 Vehicle Uses
|
