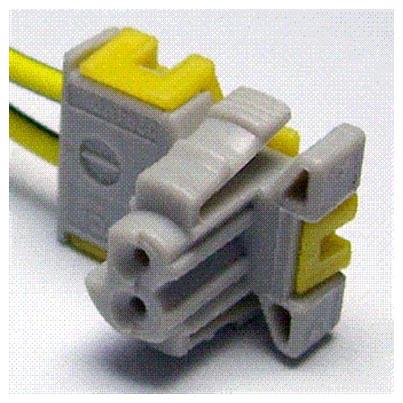

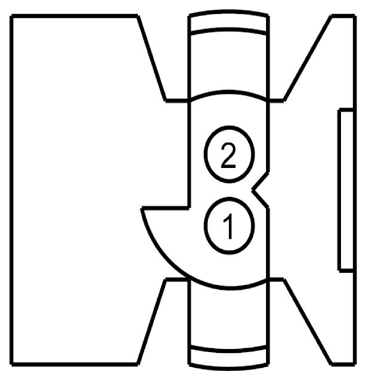

Passenger Airbag Connector End View (C256B)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RR104 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 | |
| 2 | CR104 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1223 | Service Part Number: BU2Z-14S411-BFA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
