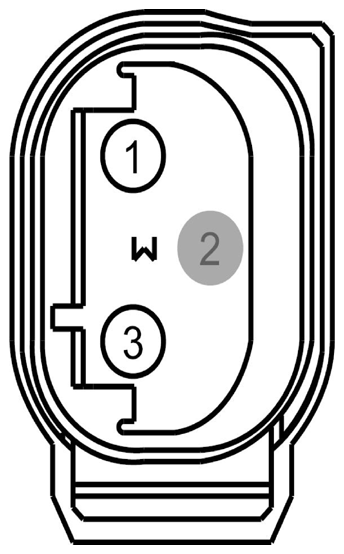

Parking Aid Sensor, Inner Right Connector End View (C4012)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VMP16 (YE-GY) | 20 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | |
| 2 | * | * | Not Used | |
| 3 | RMP07 (GN-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR |

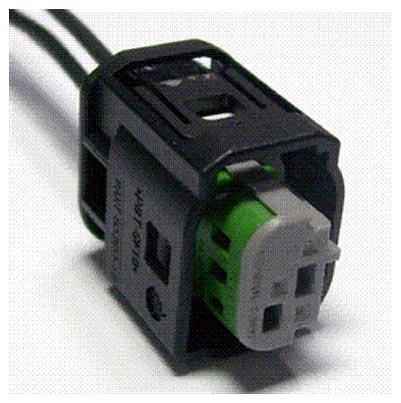

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1100 | Service Part Number: AU2Z-14S411-ARA Gauge: 20 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
