Park/Turn Lamp, Right Front Connector End View (C1043)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

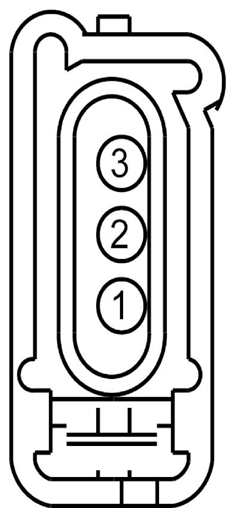

Fig 1: Park/Turn Lamp, Right Front Connector End View (C1043)

G08753511

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT
2	CBP30 (YE-BU)	20	FUSE - 30 OR CIRCUIT BREAKER
3	CLS25 (YE-VT)	18	CTRL MOD. - TURN LAMP RIGHT FRONT

Available Pigtail Kits

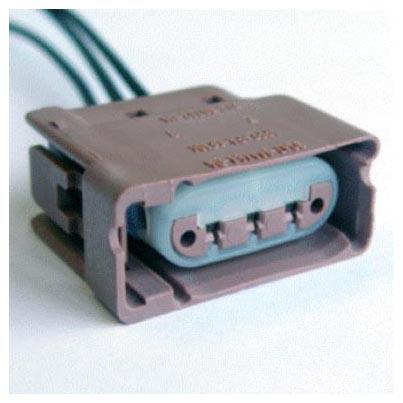

Pigtail Kit Part Number WPT-809	Service Part Number: 3U2Z-14S411-FHAA Gauge: 16 Pin material: Tin Cavities: 3 Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Door Lamp - Courtesy - Footwell Lamp - Front Turn/Marker Lamp - Glove Box Lamp - Headlamp - High/Low Beam Lamp - Headlamp Switch Lamp - Overhead Console

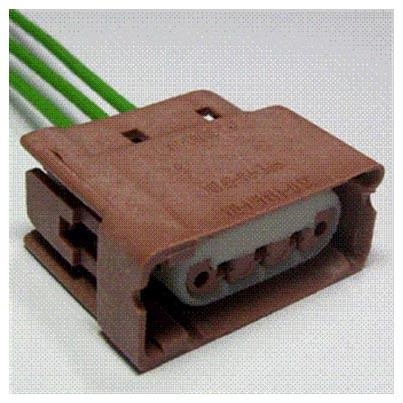

Pigtail Kit Part Number WPT-1167	Service Part Number: 3U2Z-14S411-FHAB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - Front Cornering/Turn Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/Marker Lamp - Headlamp - High/Low Beam Lamp - Park/Turn Lamp - Park/Turn/Stop Lamp - Rear Park Lamp - Reverse Lamp - Stop
