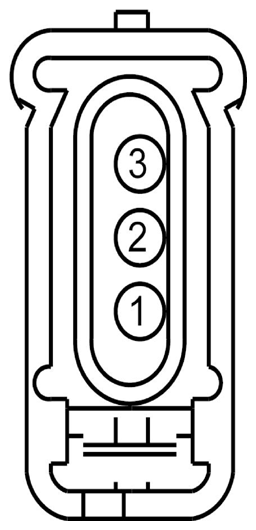

Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD117 (BK) | 18 | GROUND - CROSS MEMBER REAR (6L2T) | |
| 2 | CBP40 (YE-GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER | |
| 3 | CLS18 (GY-BN) | 18 | CTRL MOD. - STOP/TURN LEFT |

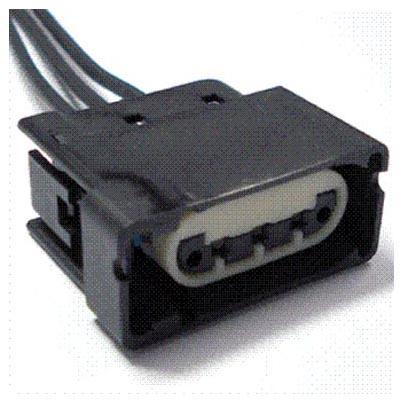

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1025 | Service Part Number: 6U2Z-14S411-AB Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses
|
