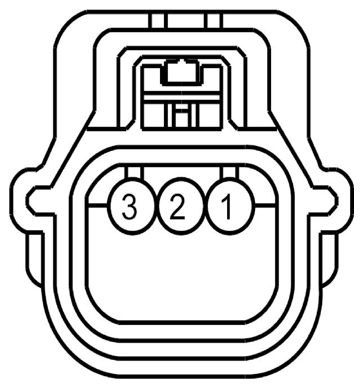

OCS Weight Sensor Bolt 3 Connector End View (C3330)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR153 (GN-WH) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) | |
| 2 | RR153 (GY-BU) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) | |
| 3 | VR226 (YE-GY) | 20 | SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#3) |
| Available Pigtail Kits | |
|---|---|

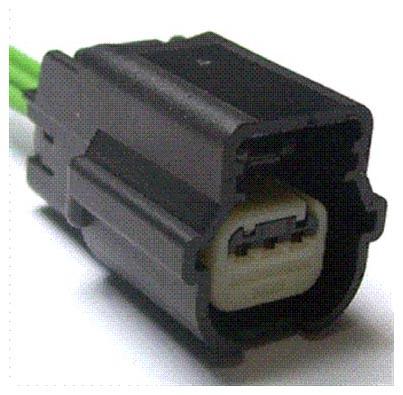

| Pigtail Kit Part Number WPT-926 | Service Part Number: 9U2Z-14S411-CA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses
|

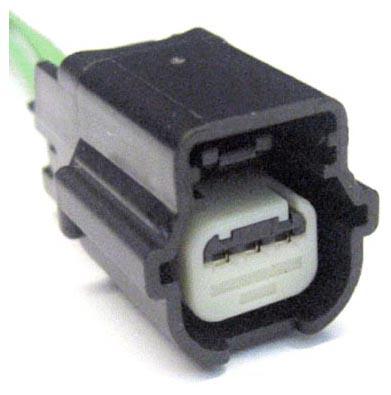

| Pigtail Kit Part Number WPT-1315 | Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses
|
