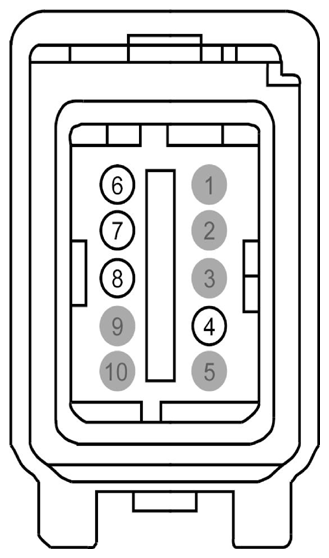

Modem-Antenna Connector End View (C2410)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
CGND (BK) |
22 |
COMMON GND |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
TXD (YE) |
22 |
SERIAL TRANS |
|
| 7 |
RXD (GN) |
22 |
SERIAL RECEIVE |
|
| 8 |
5VTB (RD) |
22 |
5V T-BOX |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
