Manifold Absolute Pressure/Intake Air Temperature 2 (Map/IAT2) Sensor Connector End View (C1087)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor Connector End View (C1087)
G08753518Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT2)
2 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV)
3 VE804 (GN-BN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (MAP)
4 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
Available Pigtail Kits

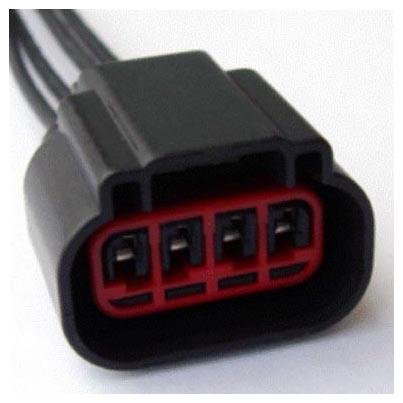

Pigtail Kit Part Number WPT-508
G08753519
 Service Part Number: 3U2Z-14S411-SPA
Gauge: 16
Pin material: Tin
Cavities: 4
Vehicle Uses
  • Actuator - Door Lock - Decklid/Liftgate
  • Actuator - Intake Manifold Valve
  • Coil - Ignition
  • Lamp - Front Cornering/Turn
  • Lamp - Front Park
  • Lamp - Front Turn
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Absolute Pressure (MAP)
  • Switch - Sliding Door Contact
Pigtail Kit Part Number WPT-1339
G00530888
 Service Part Number: 3U2Z-14S411-SPC
Gauge: 16
Pin material: Silver
Cavities: 4
Vehicle Uses
  • Actuator - Door Lock - Decklid/Liftgate
  • Actuator - Intake Manifold Valve
  • Coil - Ignition
  • Lamp - Front Cornering/Turn
  • Lamp - Park/Turn
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Absolute Pressure (MAP)
  • Sensor - Manifold Pressure/Intake Temperature
  • Sensor - Turbine Shaft Speed
  • Sensor - Turbo Intake Pressure/Temperature
  • Switch - Sliding Door Contact
Pigtail Kit Part Number WPT-509
G08753520
 Service Part Number: 3U2Z-14S411-SSA
Gauge: 18
Pin material: Gold
Cavities: 4
Vehicle Uses
  • Control - Engine Air Shutoff
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Pressure/Intake Temperature
  • Sensor - Turbine Shaft Speed
  • Sensor - Turbo Intake Pressure/Temperature

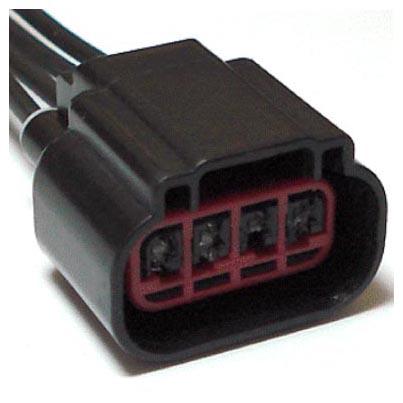

Pigtail Kit Part Number WPT-1009
G08753521
 Service Part Number: 3U2Z-14S411-SPB
Gauge: 14
Pin material: Tin (greased)
Cavities: 4
Vehicle Uses
  • Actuator - Door Lock - Decklid/Liftgate
  • Actuator - Intake Manifold Valve
  • Coil - Ignition
  • Lamp - Front Cornering/Turn
  • Lamp - Park/Turn
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Absolute Pressure (MAP)
  • Sensor - Manifold Pressure/Intake Temperature
  • Sensor - Turbo Intake Pressure/Temperature
  • Switch - Sliding Door Contact

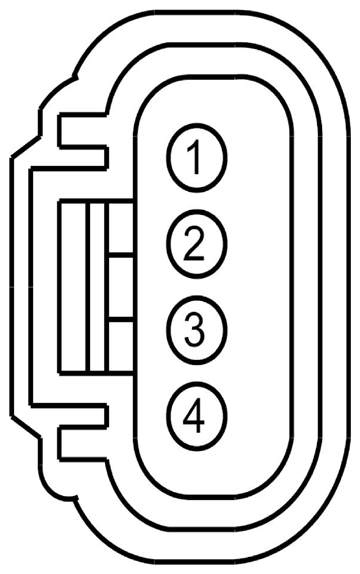

Fig 1: Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor Connector End View (C1087)
G08753522Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT2)
2 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV)
3 VE804 (GN-BN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (MAP)
4 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
Available Pigtail Kits
Pigtail Kit Part Number WPT-508
G08753523
 Service Part Number: 3U2Z-14S411-SPA
Gauge: 16
Pin material: Tin
Cavities: 4
Vehicle Uses
  • Actuator - Door Lock - Decklid/Liftgate
  • Actuator - Intake Manifold Valve
  • Coil - Ignition
  • Lamp - Front Cornering/Turn
  • Lamp - Front Park
  • Lamp - Front Turn
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Absolute Pressure (MAP)
  • Switch - Sliding Door Contact
Pigtail Kit Part Number WPT-1339
G00530888
 Service Part Number: 3U2Z-14S411-SPC
Gauge: 16
Pin material: Silver
Cavities: 4
Vehicle Uses
  • Actuator - Door Lock - Decklid/Liftgate
  • Actuator - Intake Manifold Valve
  • Coil - Ignition
  • Lamp - Front Cornering/Turn
  • Lamp - Park/Turn
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Absolute Pressure (MAP)
  • Sensor - Manifold Pressure/Intake Temperature
  • Sensor - Turbine Shaft Speed
  • Sensor - Turbo Intake Pressure/Temperature
  • Switch - Sliding Door Contact

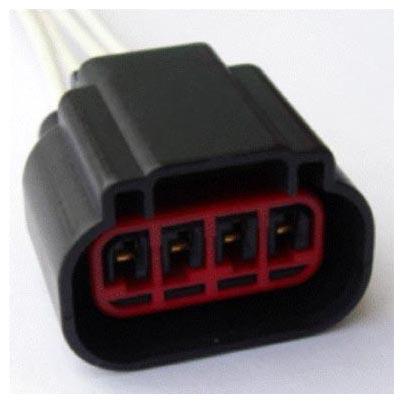

Pigtail Kit Part Number WPT-509
G08753524
 Service Part Number: 3U2Z-14S411-SSA
Gauge: 18
Pin material: Gold
Cavities: 4
Vehicle Uses
  • Control - Engine Air Shutoff
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Pressure/Intake Temperature
  • Sensor - Turbine Shaft Speed
  • Sensor - Turbo Intake Pressure/Temperature
Pigtail Kit Part Number WPT-1009
G08753525
 Service Part Number: 3U2Z-14S411-SPB
Gauge: 14
Pin material: Tin (greased)
Cavities: 4
Vehicle Uses
  • Actuator - Door Lock - Decklid/Liftgate
  • Actuator - Intake Manifold Valve
  • Coil - Ignition
  • Lamp - Front Cornering/Turn
  • Lamp - Park/Turn
  • Sensor - Intake Manifold Runner Control
  • Sensor - Manifold Absolute Pressure (MAP)
  • Sensor - Manifold Pressure/Intake Temperature
  • Sensor - Turbo Intake Pressure/Temperature
  • Switch - Sliding Door Contact
