Lumbar Motor, Driver Seat Connector End View (C3215)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| A | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR RELEASE | |
| B | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP |

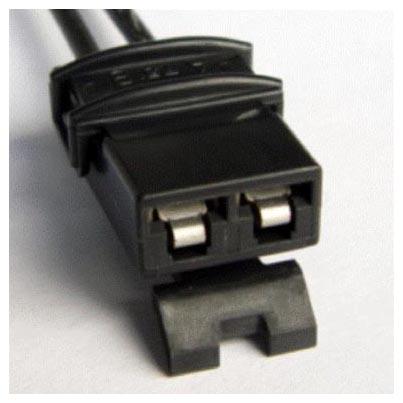

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-687 | Service Part Number: 3U2Z-14S411-ZAA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
