License Plate Lamp, Right Connector End View (C462)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

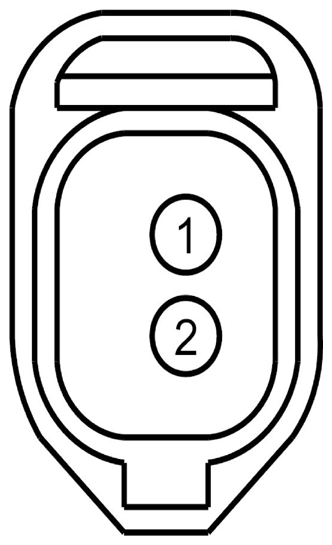

Fig 1: License Plate Lamp, Right Connector End View (C462)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD117 (BK)	18	GROUND - CROSS MEMBER REAR (6L2T)
2	CBP40 (YE-GN)	18	FUSE - 40 OR CIRCUIT BREAKER

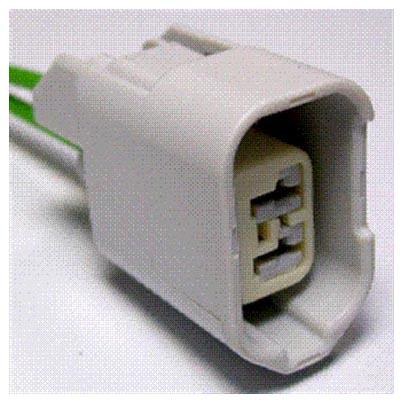

Available Pigtail Kits
Pigtail Kit Part Number WPT-1204	Service Part Number: 1U2Z-14S411-BEB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Fog/Driving Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/Marker Lamp - License Lamp - Reverse Lamp - Running Board Lamp - Side Marker Lamp - Stop/Park Lamp - Under Hood
