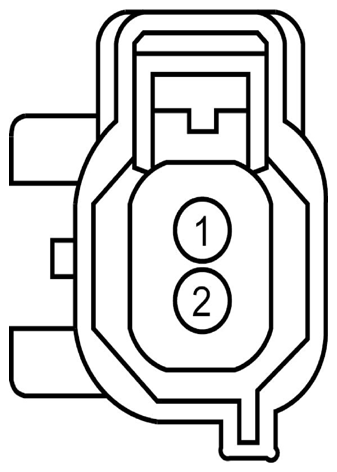

Knock Sensor 2 (KS2) Connector End View (C1514)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND (KSL2+) | 5.0L |
| 2 | RE324 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KLS2-) | 5.0L |
| Available Pigtail Kits | |
|---|---|

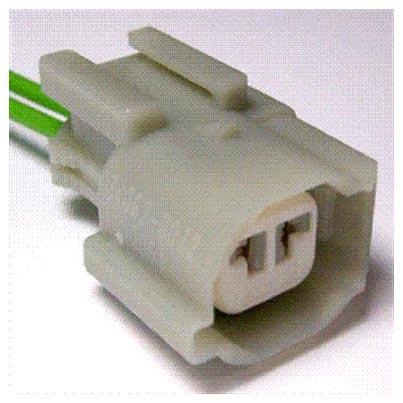

| Pigtail Kit Part Number WPT-1116 | Service Part Number: AU2Z-14S411-BJA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
