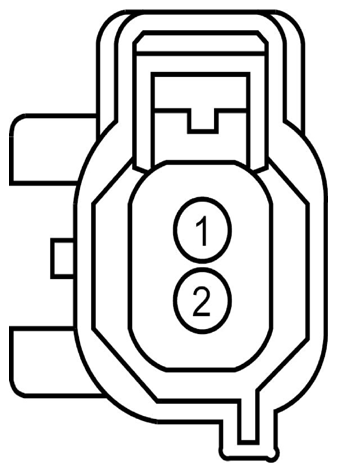

Knock Sensor 1 (KS1) Connector End View (C1512)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST OR UNIQUE (KSL1+) | 5.0L |
| 2 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KSL1-) | 5.0L |
| Available Pigtail Kits | |
|---|---|

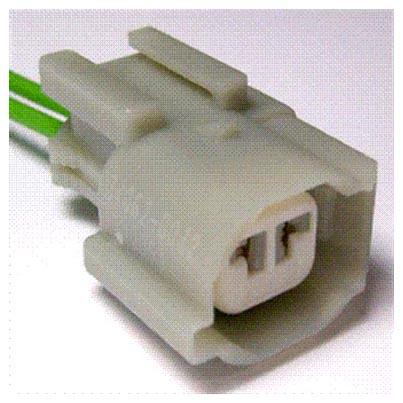

| Pigtail Kit Part Number WPT-1116 | Service Part Number: AU2Z-14S411-BJA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
