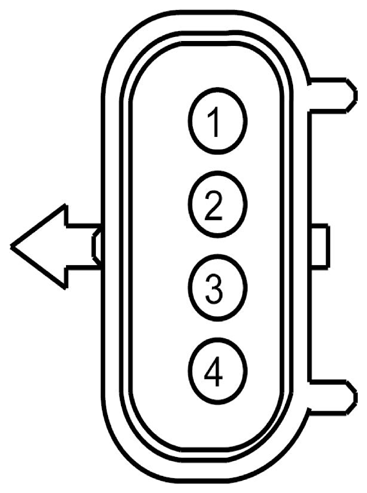

Knock Sensor (KS) Connector End View (C108)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST OR UNIQUE (KSL1+) | 3.5L |
| 1 | VE801 (VT-OG) | 20 | SENSOR - KNOCK 1ST OR UNIQUE (KSL1+) | 3.7L |
| 2 | RE323 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KSL1-) | 3.7L |
| 2 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KSL1-) | 3.5L |
| 3 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND (KSL2+) | 3.5L |
| 3 | VE802 (BN-BU) | 20 | SENSOR - KNOCK 2ND (KSL2+) | 3.7L |
| 4 | RE324 (BN-GN) | 20 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KLS2-) | 3.7L |
| 4 | RE324 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KLS2-) | 3.5L |

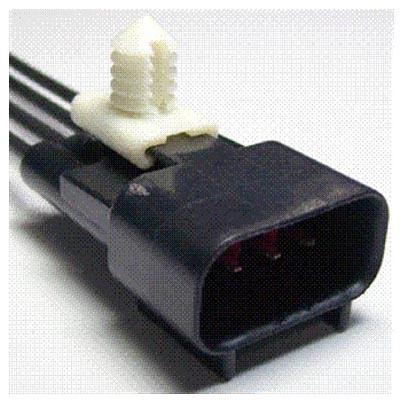

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1220 | Service Part Number: BU2Z-14S411-AXA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|
