Inline Connector End View (C4000)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

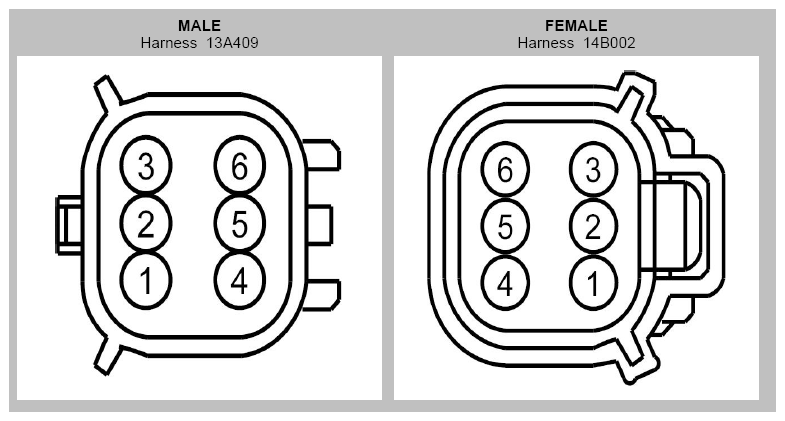

Fig 1: Inline Connector End View (C4000)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge
1	CBP34 (VT-BN)	18
2	VMP19 (WH-GN)	18
3	RMP19 (BN-VT)	18
4	DMP19 (BK)	18
5	GD120 (BK-GN)	18
6	VDN03 (GY-VT)	18
