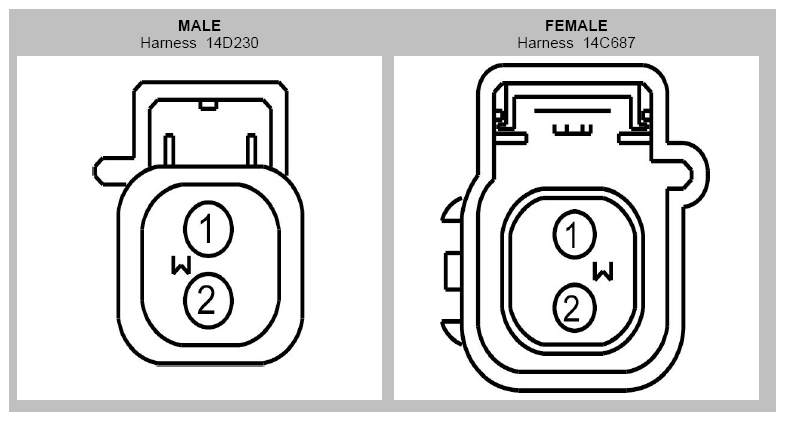

Inline Connector End View (C339)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CR106 (VT-GY) |
20 |
|
| 2 |
RR106 (YE-OG) |
20 |
|
| Available Pigtail Kits |
|

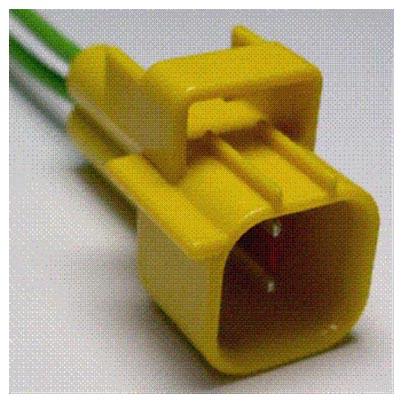

| Pigtail Kit Part Number WPT-1244
|
Service Part Number: AU2Z-14S411-BMA
Gauge: 16
Pin material: Silver
Cavities: 2
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
|
